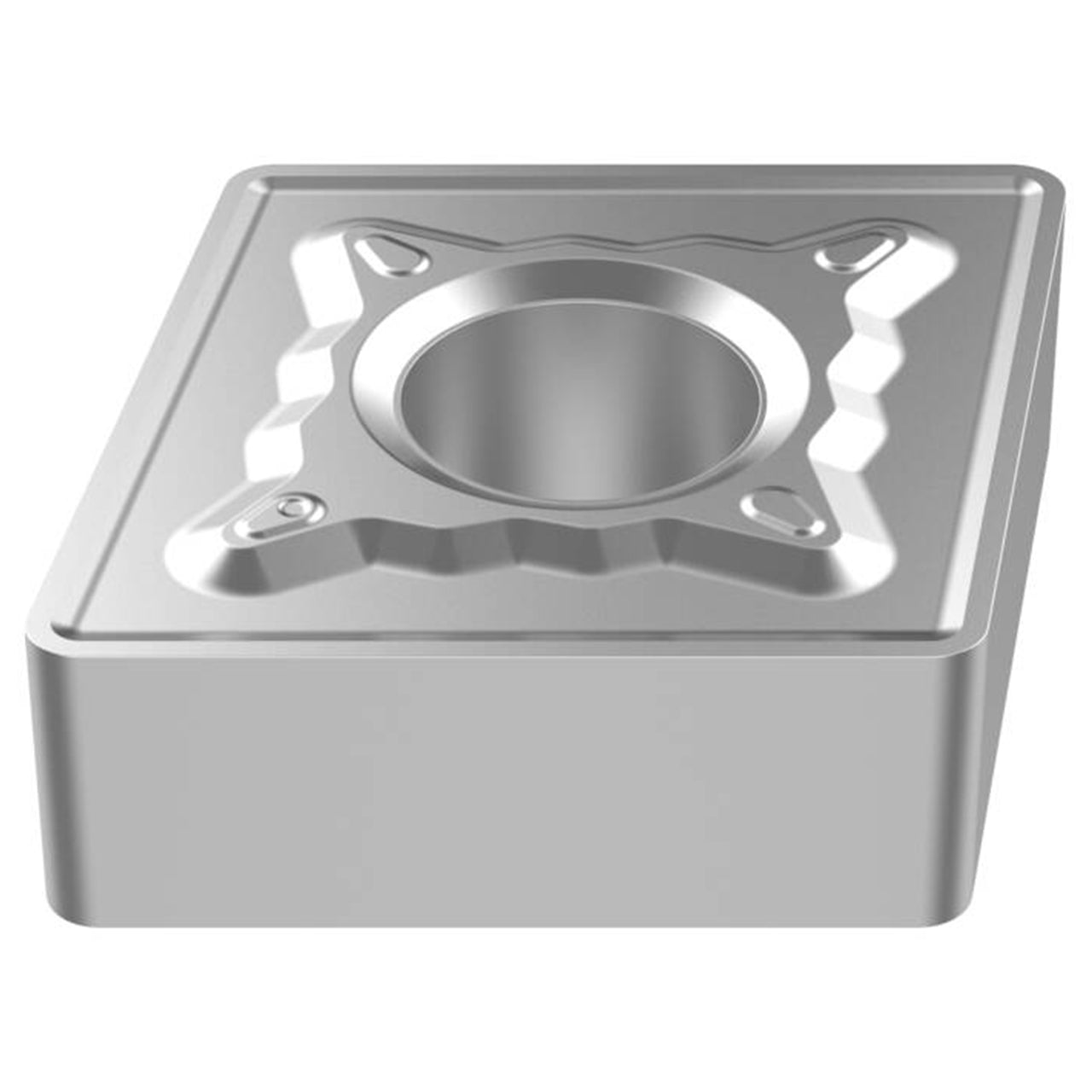

Product Specifications
| Manufacturer Part Number | 03096320 |
| Fixing Hole Diameter (Decimal Inch) | 0.250" |
| Fixing Hole Diameter (mm) | 6.35mm |
| Inscribed Circle Diameter (Decimal Inch) | 0.625" |
| Inscribed Circle Diameter (mm) | 15.88mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.587" |
| Cutting Edge Effective Length (mm) | 14.90mm |
| Corner Radius (Decimal Inch) | 0.047" |
| Corner Radius (mm) | 1.20mm |
| Insert Thickness (Decimal Inch) | 0.250" |
| Insert Thickness (mm) | 6.35mm |
| Cutting Edge Count | 4 |
| Insert Size And Shape | CN1606 |
| Insert Included Angle (Degree) | 80 Degree |
| Insert Hand | Neutral |
| Material | Carbide |
| Product Type | Turning Insert |
