Product Specifications
| Manufacturer Part Number | 03092089 |
| Cutting Diameter (Decimal Inch) | 0.780" |
| Cutting Diameter (mm) | 19.80mm |
| Connection Diameter Machine Side (Decimal Inch) | 1.000" |
| Connection Diameter Machine Side (mm) | 25.39mm |
| Maximum Cutting Diameter (Decimal Inch) | 1.250" |
| Maximum Cutting Diameter (mm) | 31.75mm |
| Shank Diameter (Decimal Inch) | 1.000" |
| Shank Diameter (mm) | 25.39mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 2.421" |
| Maximum Helical Interpolation Hole Diameter (mm) | 61.50mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 2.030" |
| Minimum Helical Interpolation Hole Diameter (mm) | 51.55mm |
| Functional Length (Decimal Inch) | 3.642" |
| Functional Length (mm) | 92.50mm |
| Protruding Length (Decimal Inch) | 2.504" |
| Protruding Length (mm) | 63.60mm |
| Shank Length (Decimal Inch) | 2.280" |
| Shank Length (mm) | 57.90mm |
| Overall Length (Decimal Inch) | 4.784" |
| Overall Length (mm) | 121.50mm |
| Maximum Depth of Cut (mm) | 6.00mm |
| Maximum Depth of Cut (Decimal Inch) | 0.236" |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -13.5 Degree |
| Rake Radial Angle (Degree) | -13.5 Degree |
| Rake Orthogonal Angle (Degree) | -13.5 Degree |
| Axial Rake Angle (Degree) | -6 Degree |
| Maximum Ramping Angle (Degree) | 0.4 Degree |
| Maximum Rotational Speed (rpm) | 15600 rpm |
| Insert Shape Code | R |
| Shank Type | Weldon |

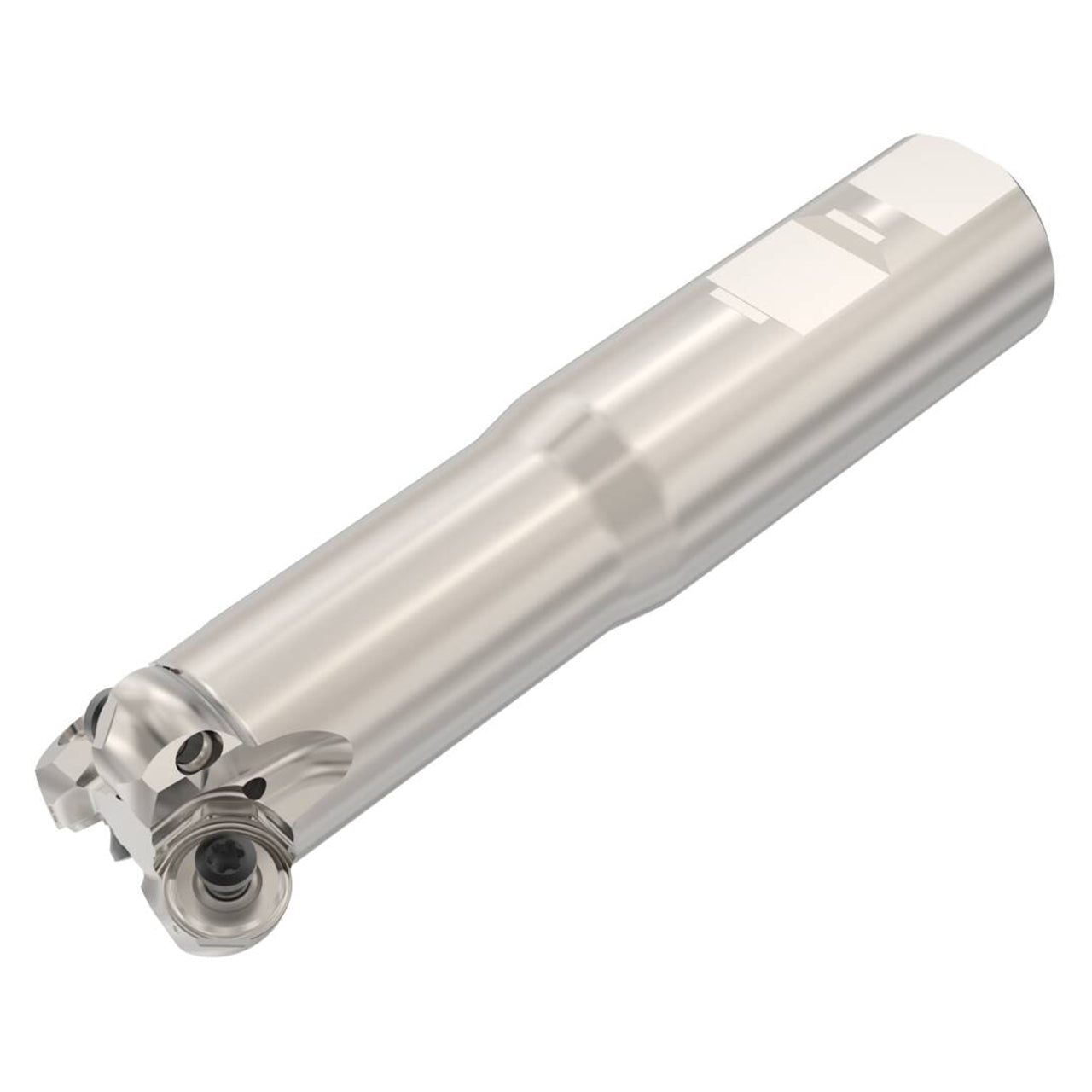

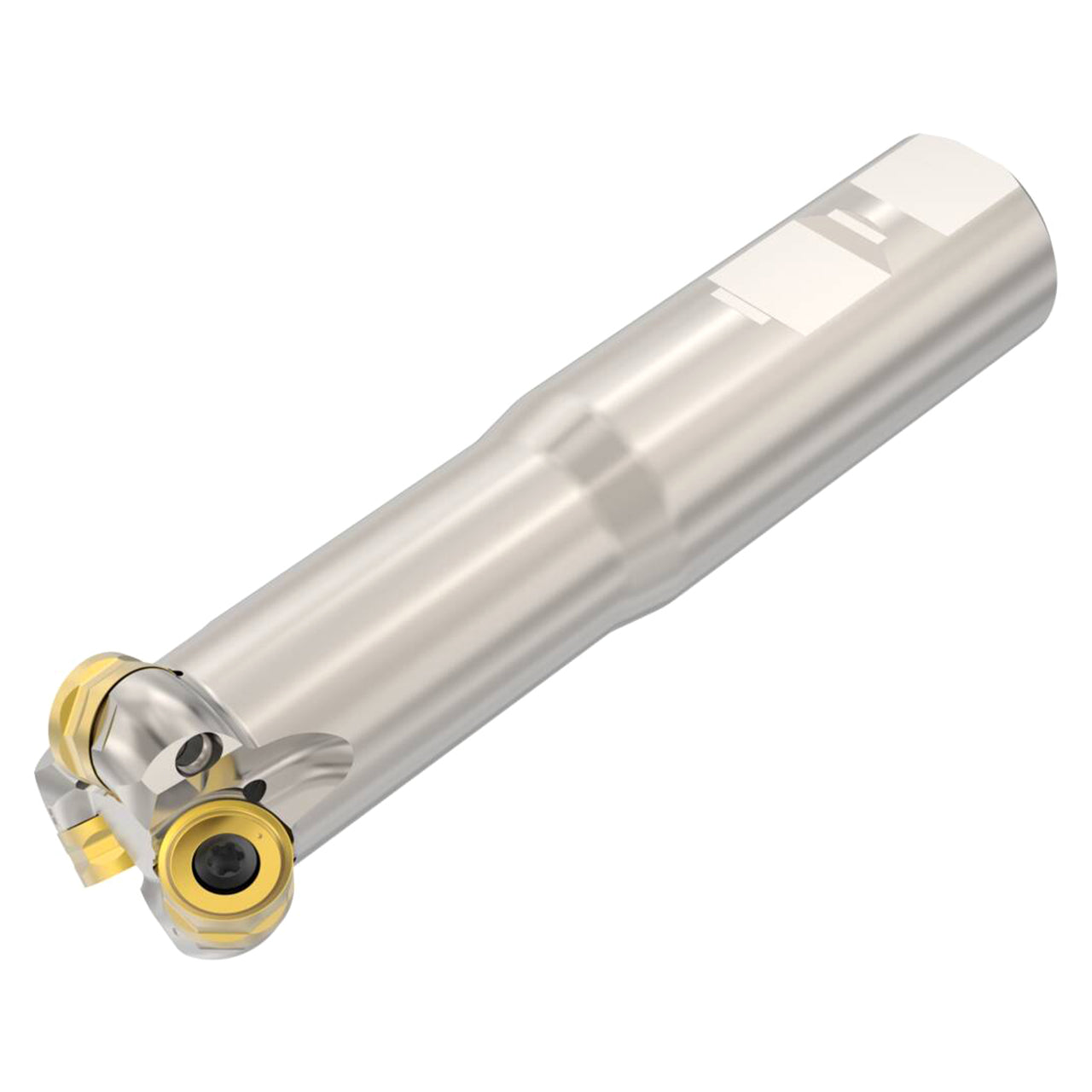

| Product Type | Double Sided Copy Mill Round Insert |
