Product Specifications
| Manufacturer Part Number | 03081008 |
| Cutting Diameter (Decimal Inch) | 0.875" |
| Cutting Diameter (mm) | 22.23mm |
| Minimum Cutting Diameter Internal (Decimal Inch) | 0.845" |
| Minimum Cutting Diameter Internal (mm) | 21.45mm |
| Maximum Cutting Diameter Internal (Decimal Inch) | 0.915" |
| Flange Diameter (Decimal Inch) | 1.575" |
| Flange Diameter (mm) | 40.00mm |
| Usable Length (Decimal Inch) | 2.638" |
| Usable Length (mm) | 67.00mm |
| Adjustment Limit Minimum (Decimal Inch) | 0.015" |
| Adjustment Limit Minimum (mm) | 0.39mm |
| Adjustment Limit Maximum (Decimal Inch) | 0.020" |
| Adjustment Limit Maximum (mm) | 0.50mm |
| Shank Type | Seco-Capto |
| Tool Cutting Edge Angle (Degree) | 87.5 Degree |

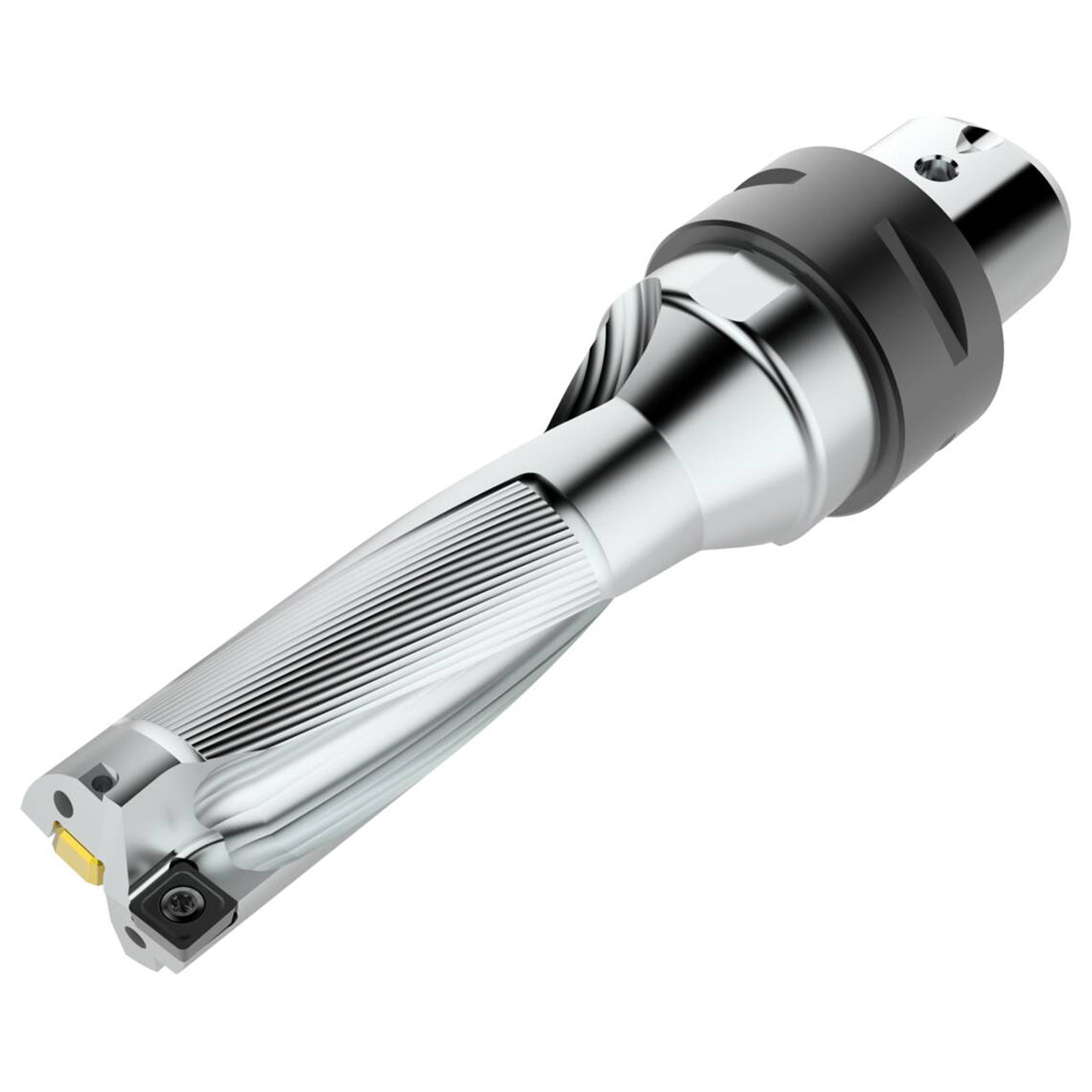

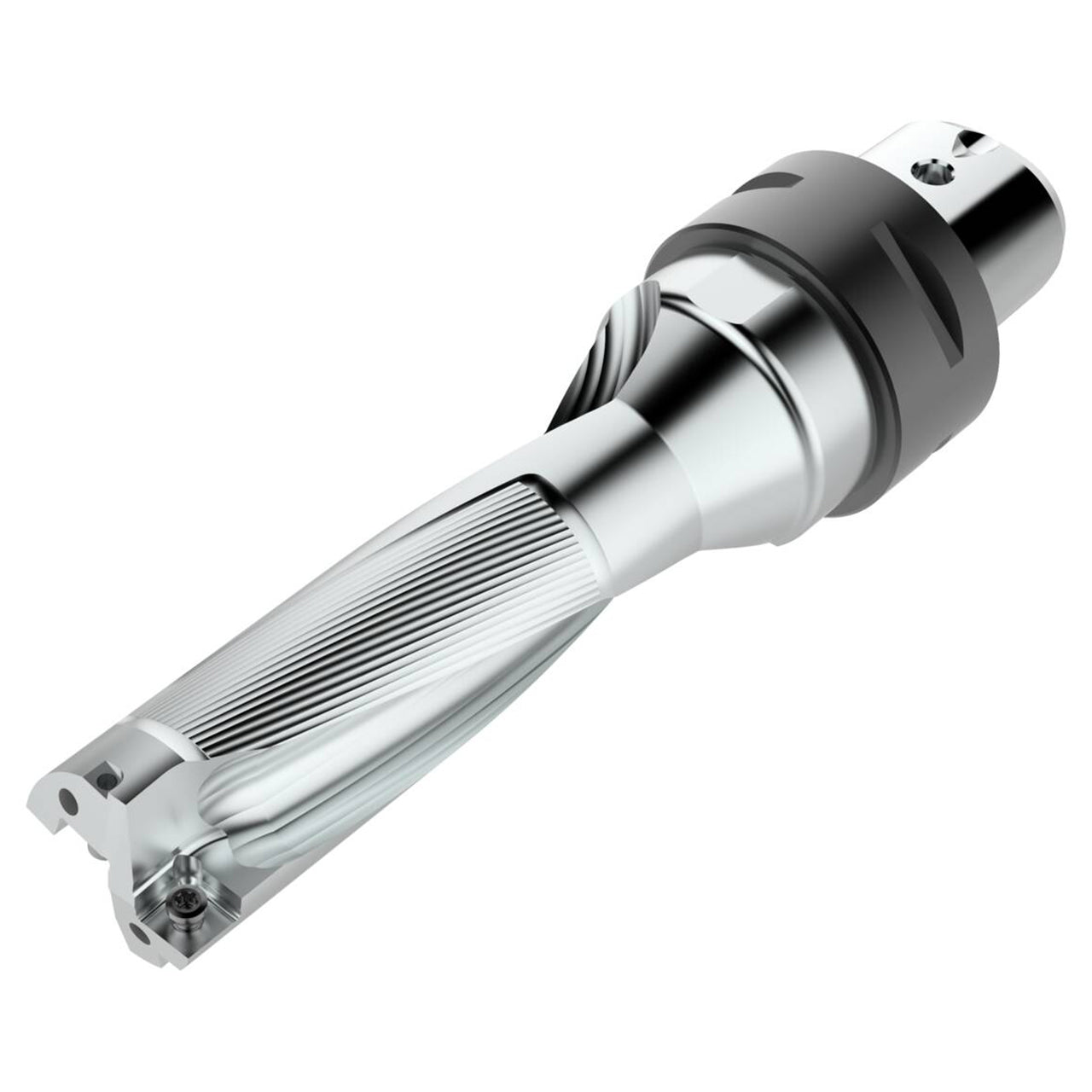

| Product Type | Indexable Insert Drill |
