Product Specifications
| Manufacturer Part Number | 03080631 |
| Cutting Diameter (mm) | 30.50mm |
| Minimum Cutting Diameter Internal (mm) | 30.26mm |
| Connection Diameter Machine Side (mm) | 32.00mm |
| Flange Diameter (mm) | 42.00mm |
| Shank Diameter (mm) | 32.00mm |
| Shank Length (mm) | 60.00mm |
| Usable Length (mm) | 92.00mm |
| Overall Length (mm) | 182.00mm |
| Adjustment Limit Minimum (mm) | 0.12mm |
| Adjustment Limit Maximum (mm) | 0.50mm |
| Coolant Entry Style Code | 1 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Tool Cutting Edge Angle (Degree) | 88 Degree |

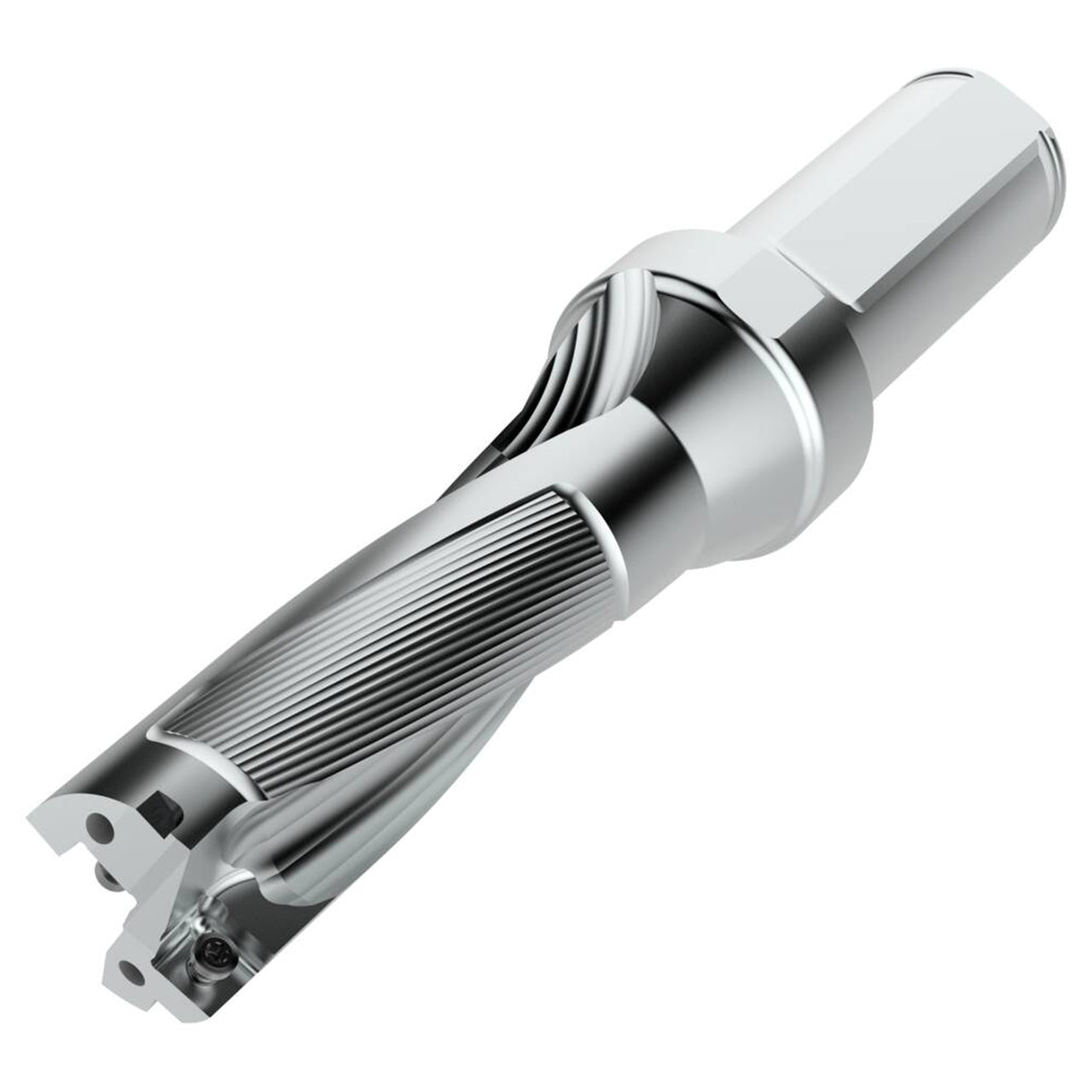

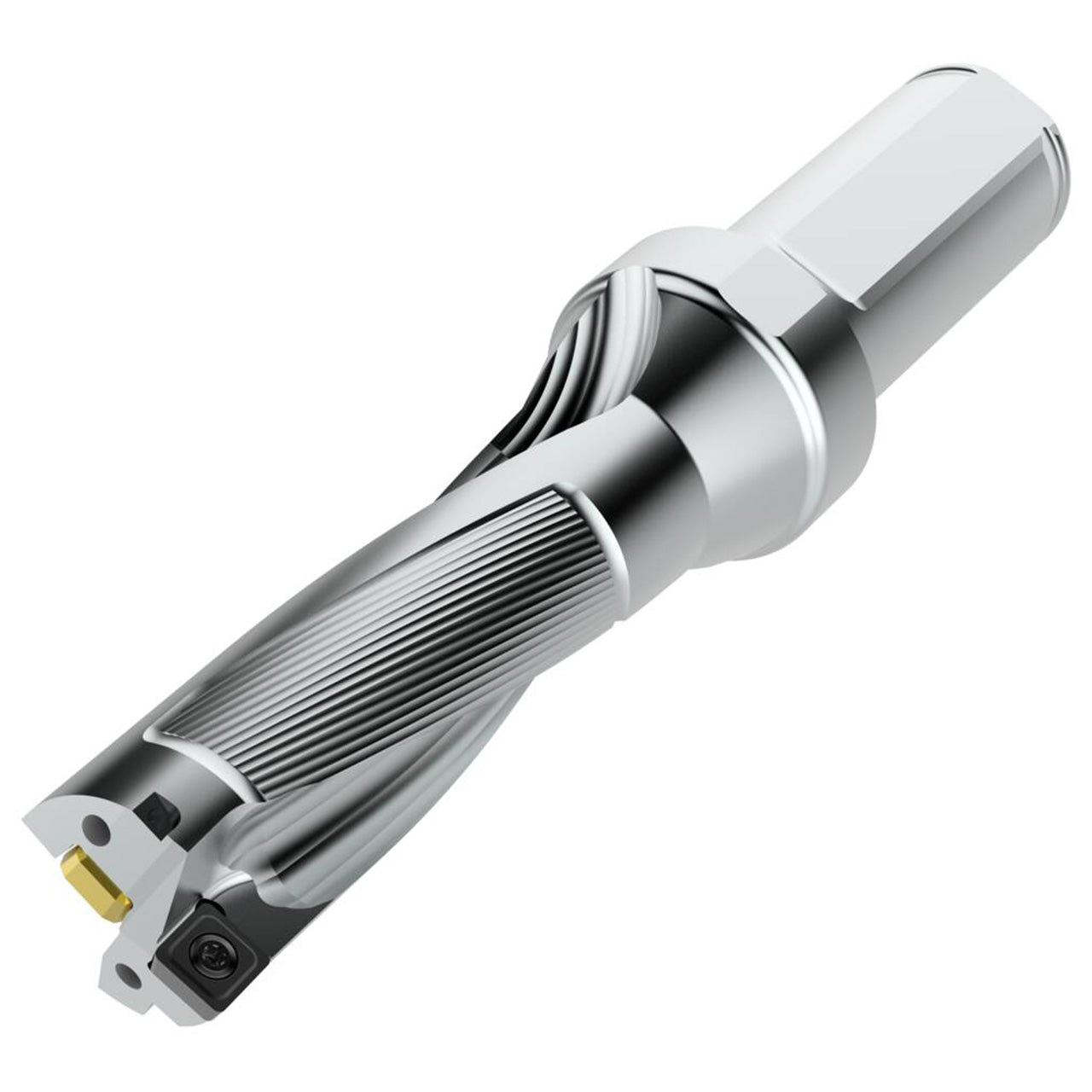

| Product Type | Indexable Insert Drill |
