Product Specifications
| Manufacturer Part Number | 03080502 |
| Cutting Diameter (Decimal Inch) | 0.787" |
| Cutting Diameter (mm) | 19.99mm |
| Minimum Cutting Diameter Internal (Decimal Inch) | 0.781" |
| Minimum Cutting Diameter Internal (mm) | 19.83mm |
| Maximum Cutting Diameter Internal (Decimal Inch) | 0.823" |
| Connection Diameter Machine Side (Decimal Inch) | 1.000" |
| Connection Diameter Machine Side (mm) | 25.40mm |
| Flange Diameter (Decimal Inch) | 1.378" |
| Flange Diameter (mm) | 35.00mm |
| Shank Diameter (Decimal Inch) | 1.000" |
| Shank Diameter (mm) | 25.40mm |
| Shank Length (Decimal Inch) | 2.750" |
| Shank Length (mm) | 69.85mm |
| Usable Length (Decimal Inch) | 2.360" |
| Usable Length (mm) | 59.94mm |
| Overall Length (Decimal Inch) | 6.488" |
| Overall Length (mm) | 164.79mm |
| Adjustment Limit Minimum (Decimal Inch) | 0.003" |
| Adjustment Limit Minimum (mm) | 0.08mm |
| Adjustment Limit Maximum (Decimal Inch) | 0.018" |
| Adjustment Limit Maximum (mm) | 0.46mm |
| Shank Type | R7-C Stationary |
| Coolant Entry Style Code | 3 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Tool Cutting Edge Angle (Degree) | 87.5 Degree |

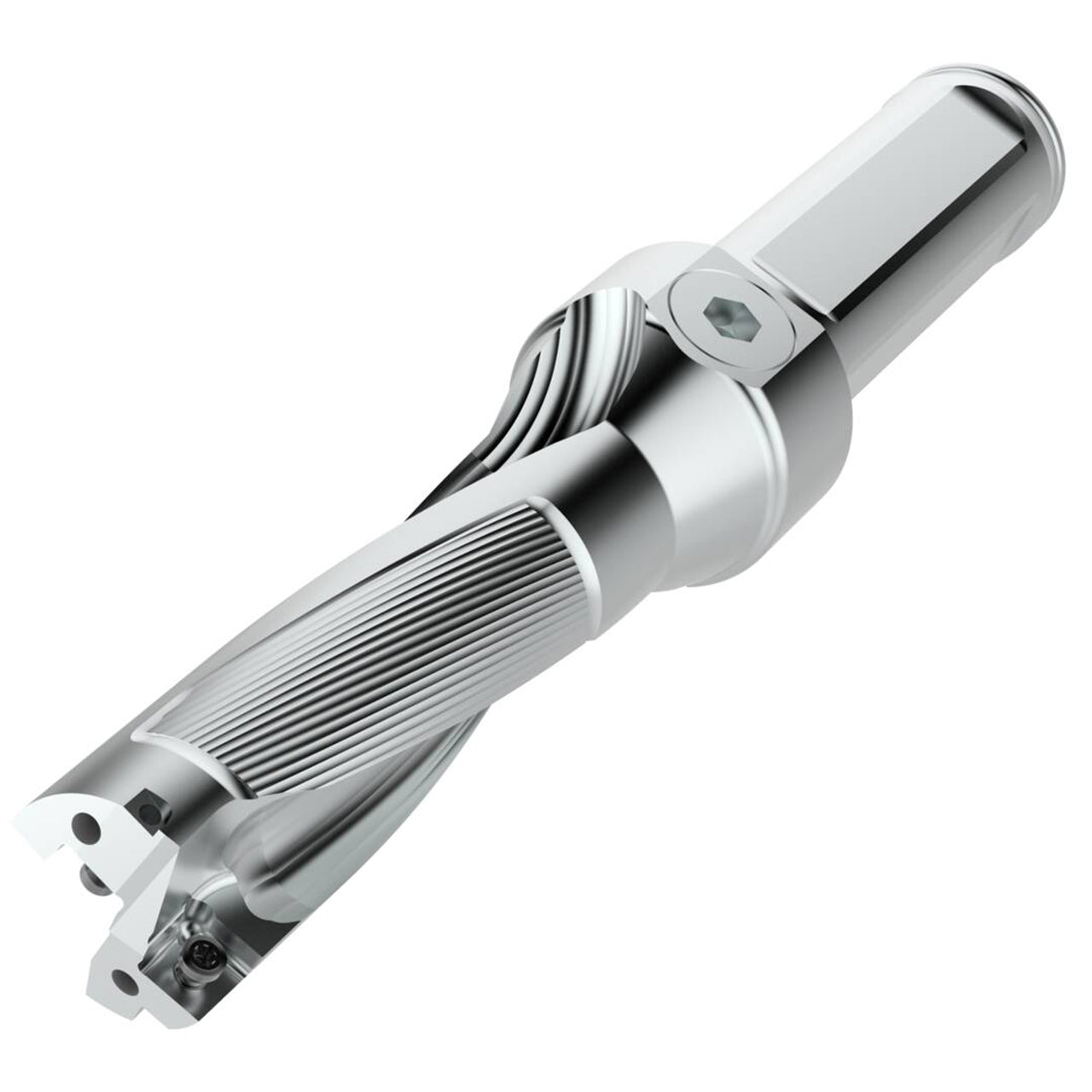

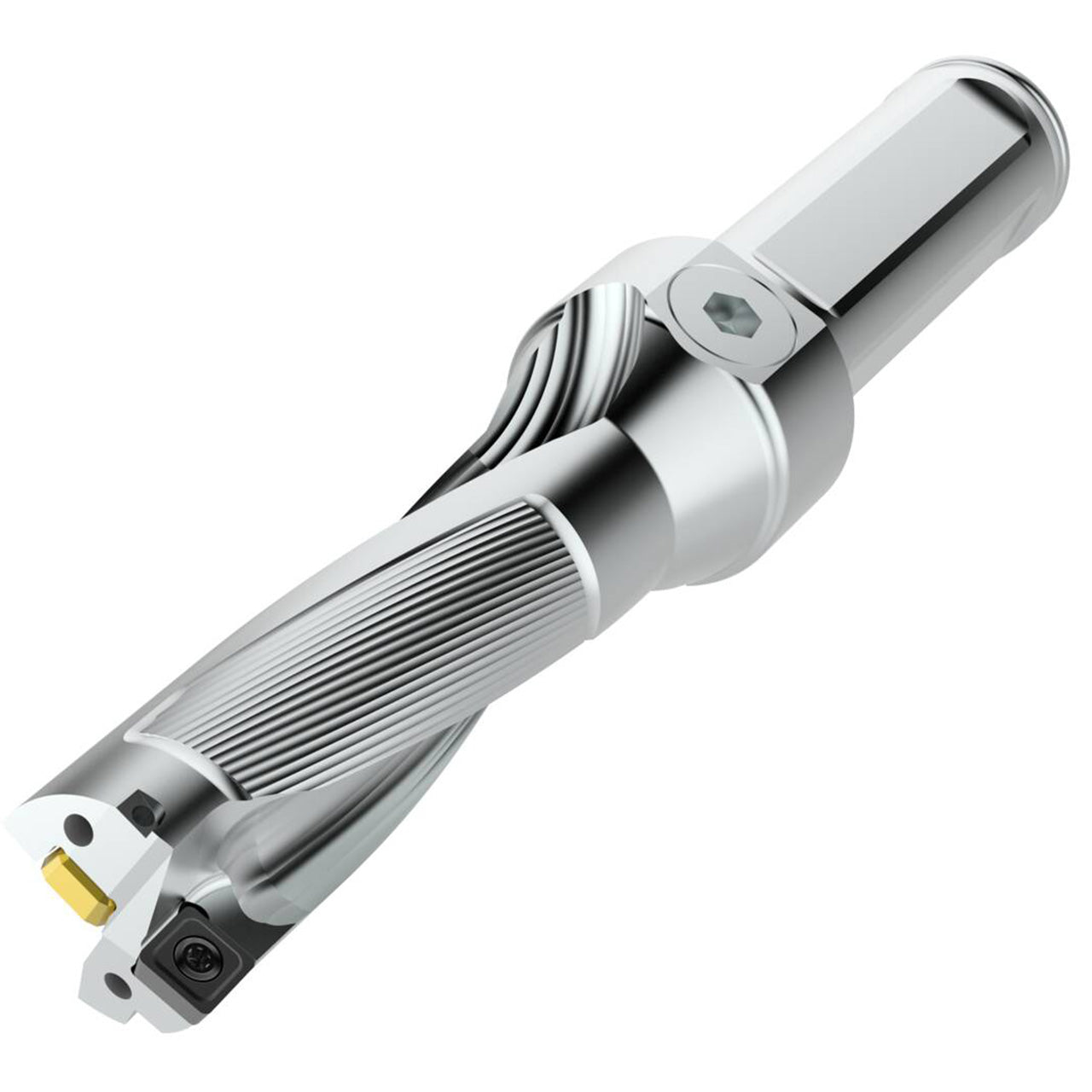

| Product Type | Indexable Insert Drill |
