Product Specifications
| Manufacturer Part Number | 03080332 |
| Cutting Diameter (Decimal Inch) | 1.812" |
| Cutting Diameter (mm) | 46.02mm |
| Connection Diameter Machine Side (Decimal Inch) | 1.500" |
| Connection Diameter Machine Side (mm) | 38.10mm |
| Flange Diameter (Decimal Inch) | 1.969" |
| Flange Diameter (mm) | 50.00mm |
| Shank Diameter (Decimal Inch) | 1.500" |
| Shank Diameter (mm) | 38.10mm |
| Shank Length (Decimal Inch) | 2.625" |
| Shank Length (mm) | 66.68mm |
| Usable Length (Decimal Inch) | 7.250" |
| Usable Length (mm) | 184.15mm |
| Overall Length (Decimal Inch) | 11.056" |
| Overall Length (mm) | 280.83mm |
| Adjustment Limit Minimum (Decimal Inch) | 0.009" |
| Adjustment Limit Minimum (mm) | 0.22mm |
| Adjustment Limit Maximum (Decimal Inch) | 0.012" |
| Adjustment Limit Maximum (mm) | 0.31mm |
| Coolant Entry Style Code | 1 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Tool Cutting Edge Angle (Degree) | 88 Degree |

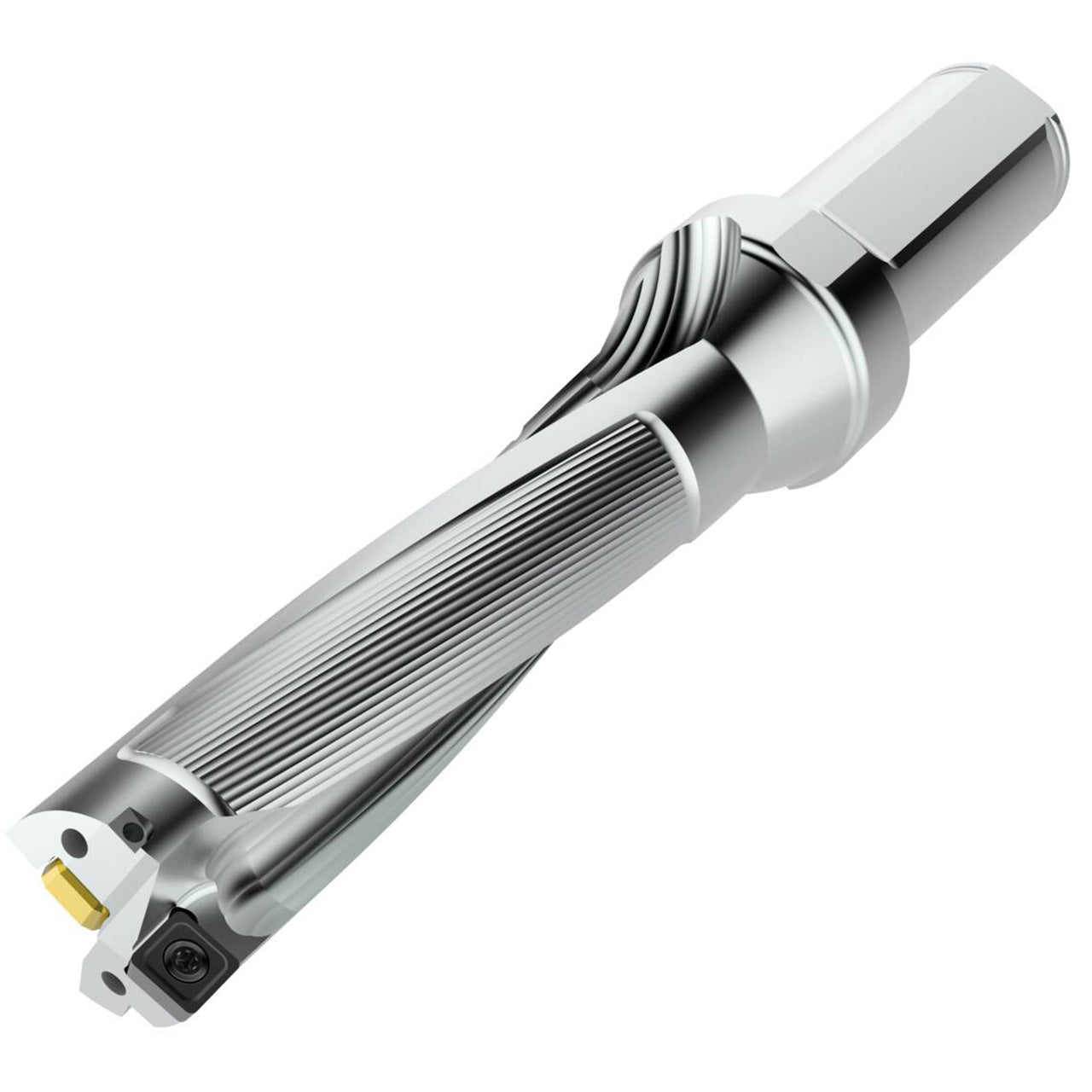

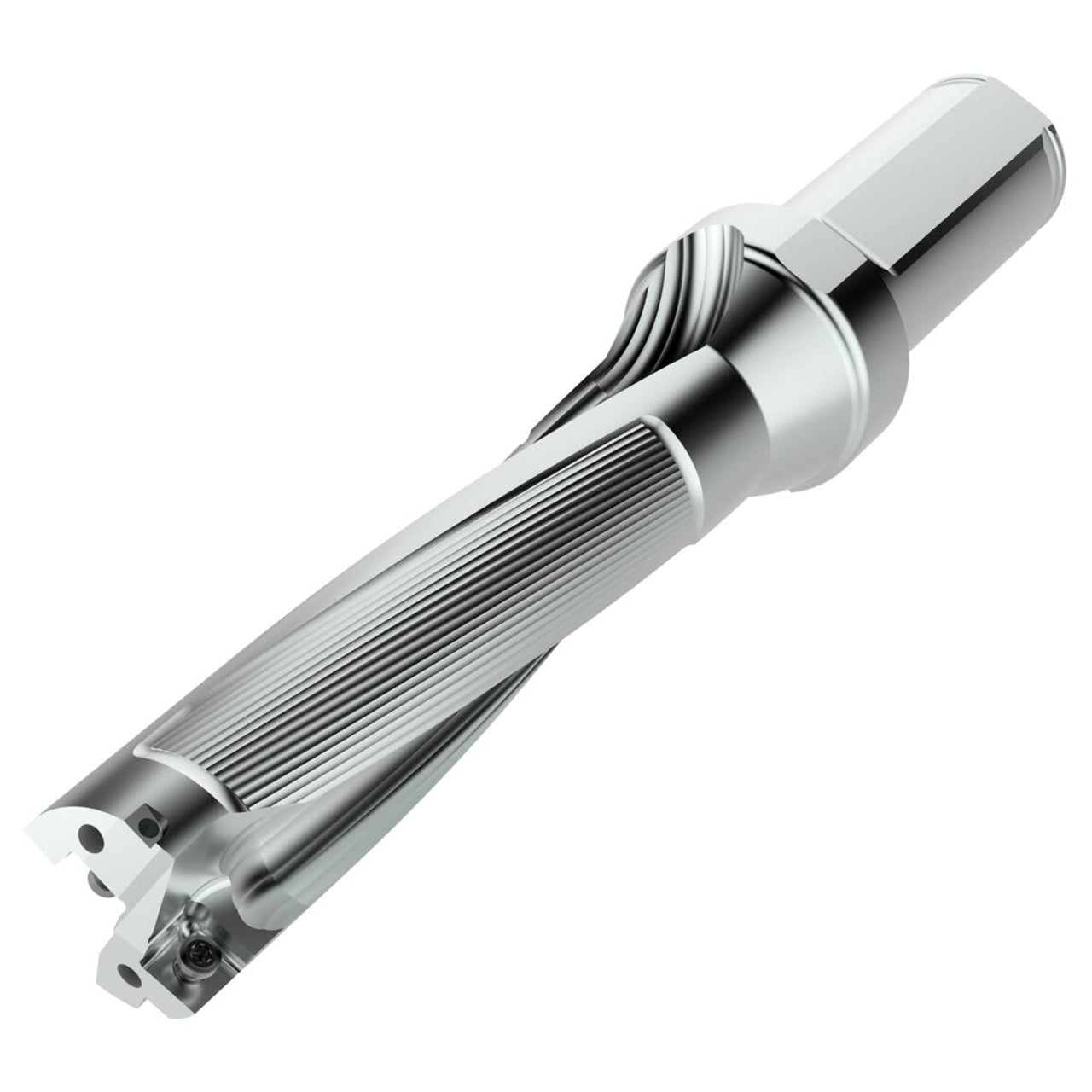

| Product Type | Indexable Insert Drill |
