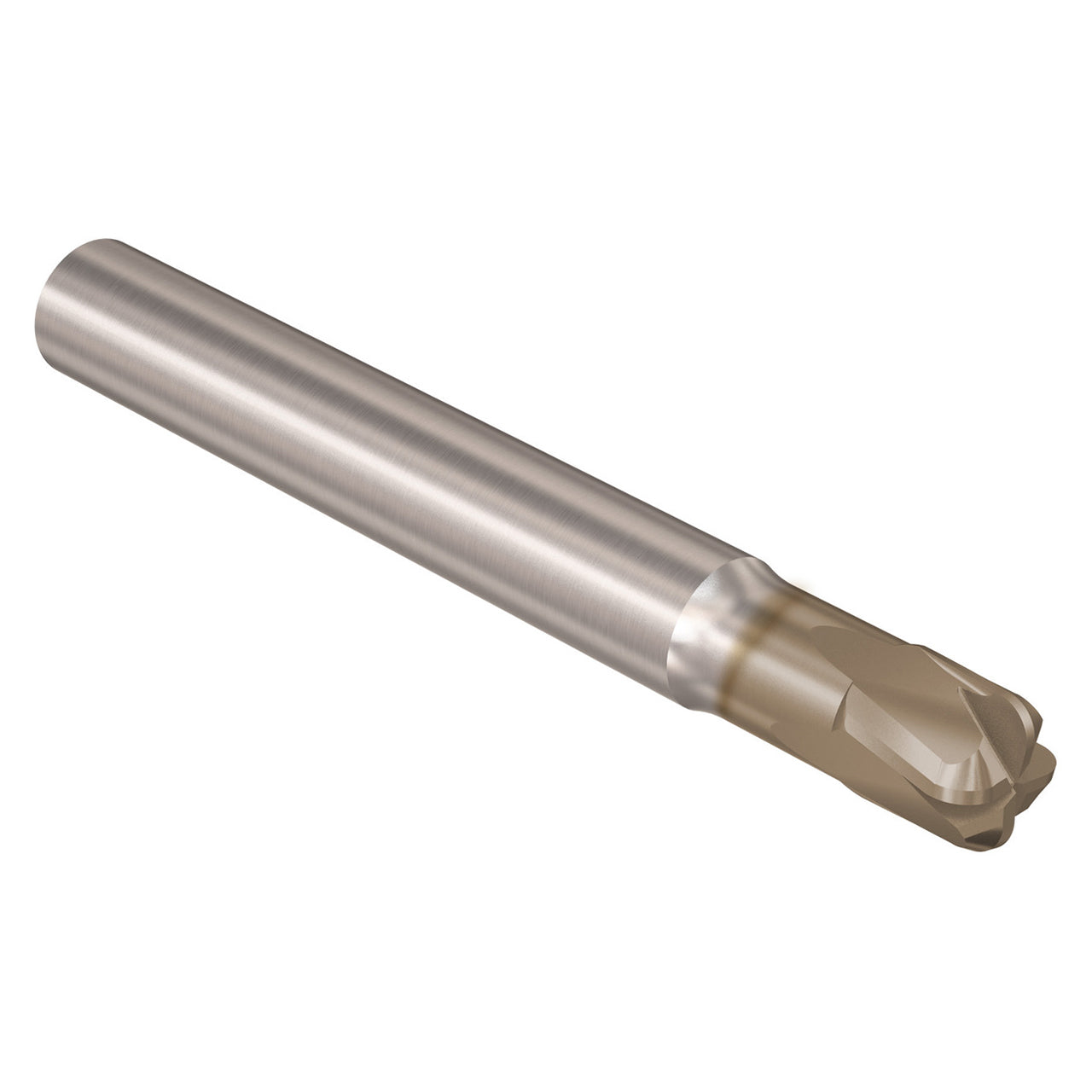

Product Specifications
| Manufacturer Part Number | 03067305 |
| Cutting Diameter (mm) | 6.00mm |
| Cutting Diameter 1 (mm) | 6.00mm |
| Connection Diameter Machine Side (mm) | 12.00mm |
| Lower Cutting Diameter Tolerance (mm) | -0.04 |
| Maximum Cutting Diameter (mm) | 12.00mm |
| Shank Diameter (mm) | 12.00mm |
| Neck Diameter (mm) | 11.00mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 17.70mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 15.60mm |
| Corner Radius (mm) | 3.00mm |
| Cutting Edge Effective Length (mm) | 3.00mm |
| Neck Length (mm) | 24.00mm |
| Neck Length 1 (mm) | 24.00mm |
| Minimum Clamping Length (mm) | 45.00mm |
| Overall Length (mm) | 75.00mm |
| Maximum Depth of Cut (mm) | 3.00mm |
| Theoretical Cutting Edge Length (mm) | 9.00mm |
| Radial Runout (mm) | 0.01mm |
| Curved Cutting Edge Radius (mm) | 3.00mm |
| Cutting Edge Count | 5 |
| Cutting Geometry Type | JHF181 |
| Cutting Geometry Type Technical | JHF181 |
| Face Cutting Edge Count | 5 |
| Flute Helix Angle (Degree) | 10 Degree |
| Flute Helix Hand | Right Hand |
| Axial Rake Angle (Degree) | 10 Degree |
| Material | Carbide |
| Cutting Direction | Right Hand |
| Internal Coolant Channel | No |
| Tool Cutting Edge Angle (Degree) | 92 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 92 Degree |
| Length Variant Cataloque | 1 |
| Number of Flute | 5 |
| Pheripheral Cutting Edge Count | 5 |
| Maximum Ramping Angle (Degree) | 1.5 Degree |
| Shank Type | Cylindrical |
| Coating | HXT |
| Product Type | Corner Radius End Mill |
