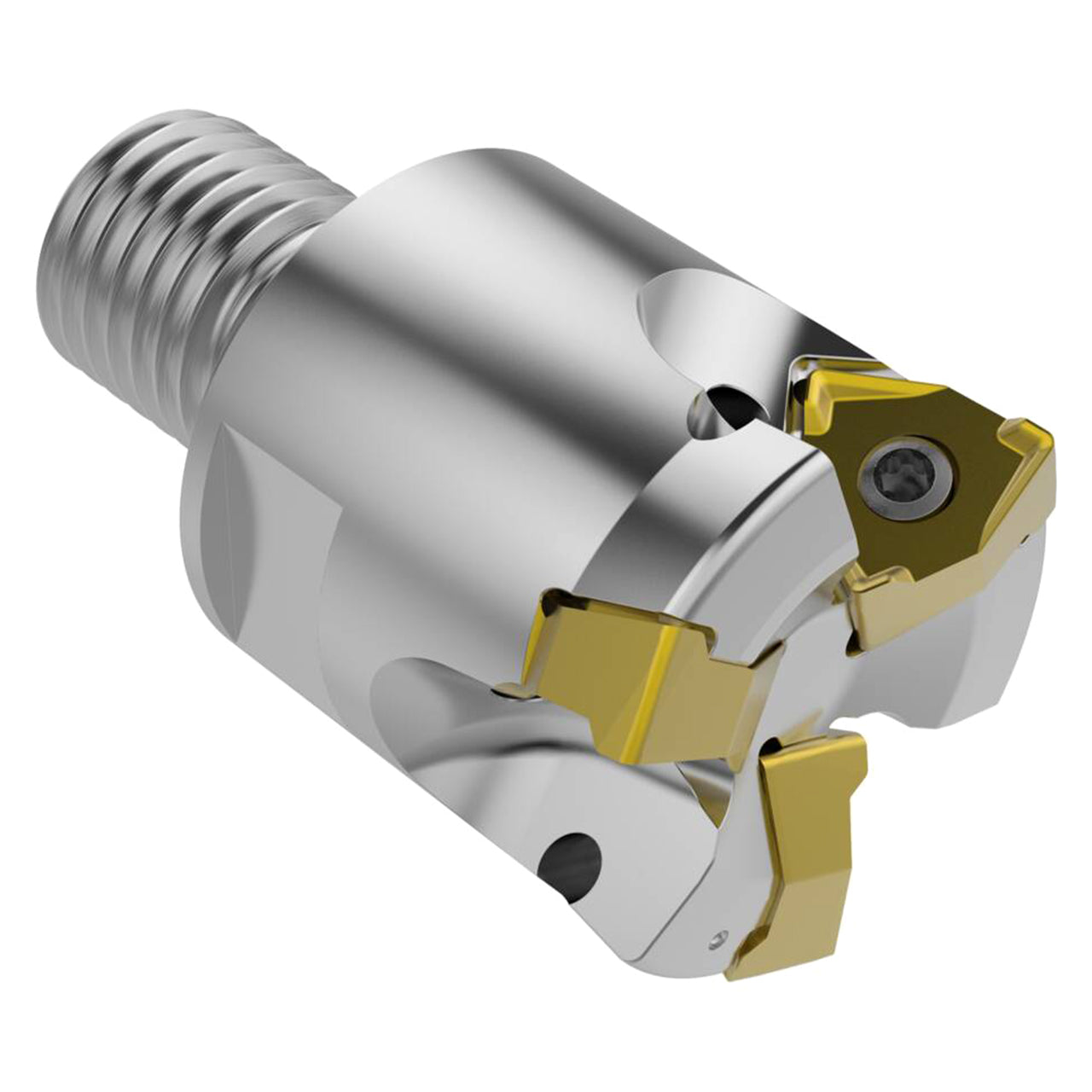

Product Specifications
| Manufacturer Part Number | 03058302 |
| Cutting Diameter (mm) | 40.00mm |
| Contact Surface Diameter Machine Side (mm) | 36.50mm |
| Thread Diameter Size | M20 |
| Functional Length (mm) | 40.00mm |
| Maximum Depth of Cut (mm) | 6.96mm |
| Connection Mounting Torque (Nm) | 120.0 Nm |
| Rake Radial Angle (Degree) | -14 Degree |
| Rake Radial Angle (Degree) | -14 Degree |
| Axial Rake Angle (Degree) | -11 Degree |
| Tool Cutting Edge Angle (Degree) | 86.92 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 87 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 92 Degree |
| Maximum Rotational Speed (rpm) | 11800 rpm |
| Shank Type | Combimaster |
| Product Type | Plunge Mill |
