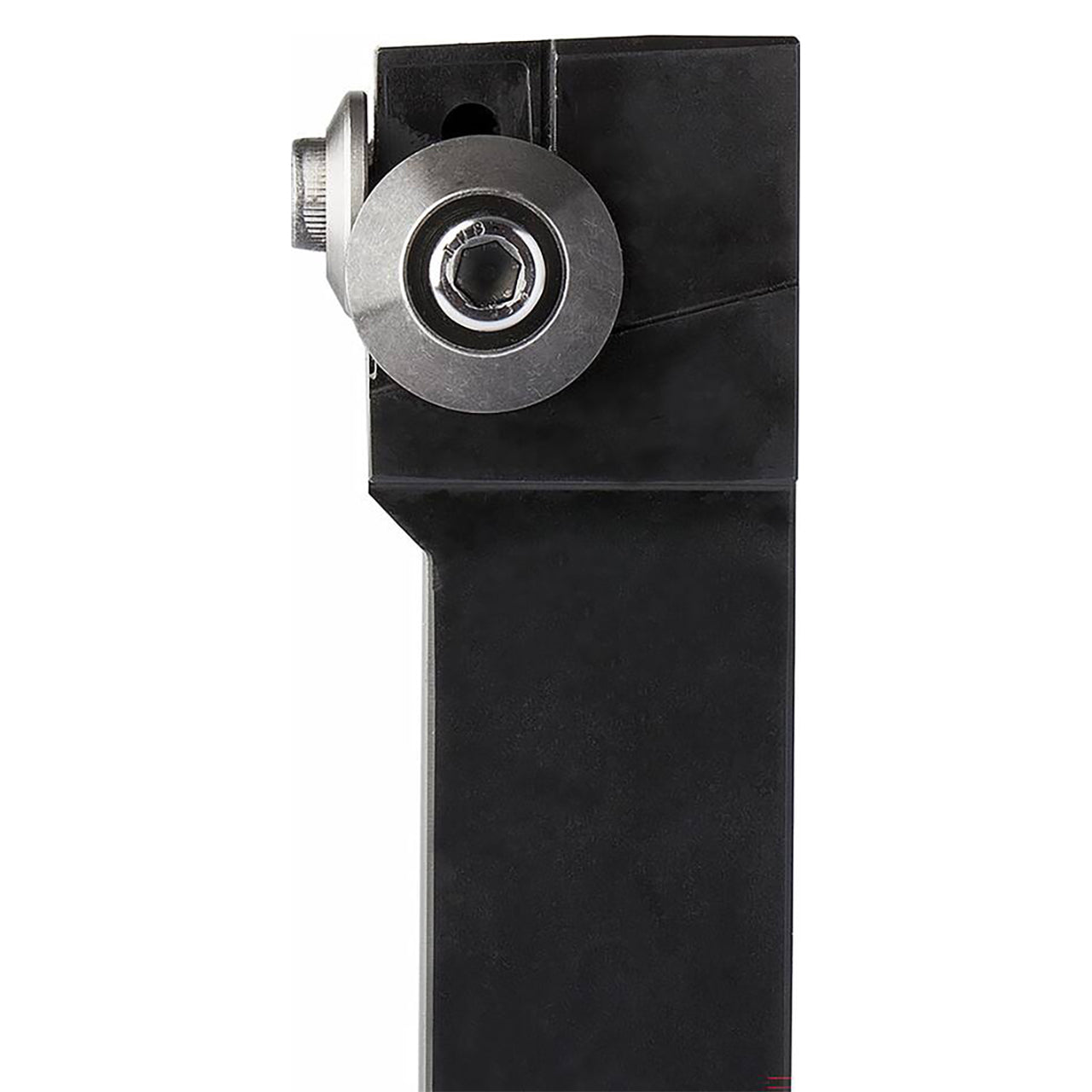

Product Specifications
| Manufacturer Part Number | 03048365 |
| Functional Length (Decimal Inch) | 6.702" |
| Functional Length (mm) | 170.24mm |
| Head Length (Decimal Inch) | 1.872" |
| Head Length (mm) | 47.54mm |
| Shank Width (Decimal Inch) | 1.250" |
| Shank Width (mm) | 31.75mm |
| Height of Tool Holder Shank (Decimal Inch) | 1.250" |
| Height of Tool Holder Shank (mm) | 31.75mm |
| Functional Width (Decimal Inch) | 1.467" |
| Functional Width (mm) | 37.25mm |
| Cutting Direction | Right Hand |
| Insert Clamping System | C |
| Shank Type | Square Shank |
| Product Type | Indexable Threading Toolholder |
