Product Specifications

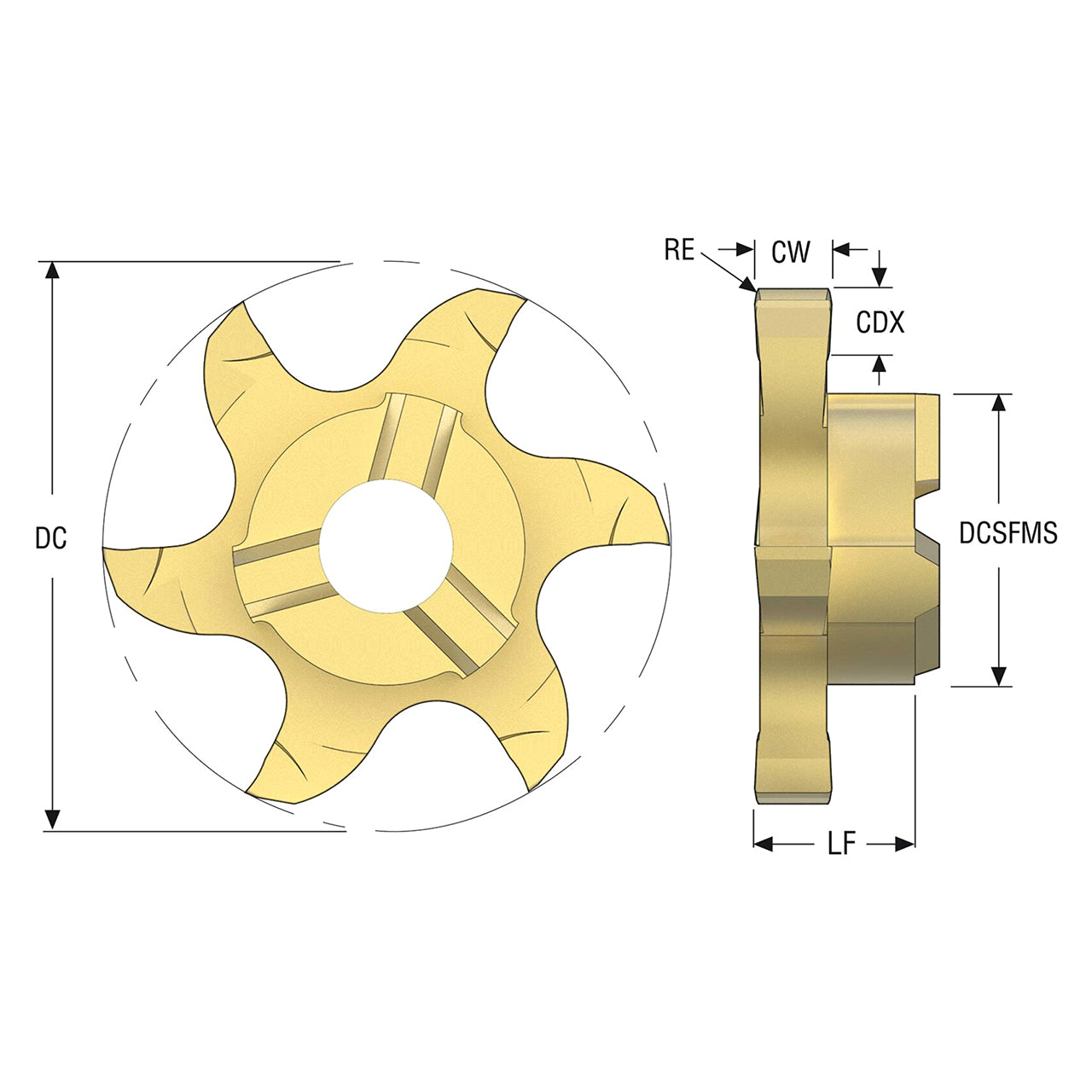

| Manufacturer Part Number | 03041936 |
| Cutting Diameter (Decimal Inch) | 1.091" |
| Cutting Diameter (mm) | 27.70mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 0.551" |
| Contact Surface Diameter Machine Side (mm) | 14.00mm |
| Functional Length (Decimal Inch) | 0.254" |
| Functional Length (mm) | 6.45mm |
| Cutting Width (Decimal Inch) | 0.059" |
| Cutting Width (mm) | 1.50mm |
| Maximum Cutting Depth (Decimal Inch) | 0.256" |
| Maximum Cutting Depth (mm) | 6.50mm |
| Maximum Cutting Depth Insert (Decimal Inch) | 0.256" |
| Maximum Cutting Depth Insert (mm) | 6.50mm |
| Corner Radius (Decimal Inch) | 0.004" |
| Corner Radius (mm) | 0.10mm |
| Cutting Edge Count | 1 |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Insert Rake Angle (Degree) | 15 Degree |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | M |
| Cutting Geometry Type Technical | M03 |
| Material | Carbide |

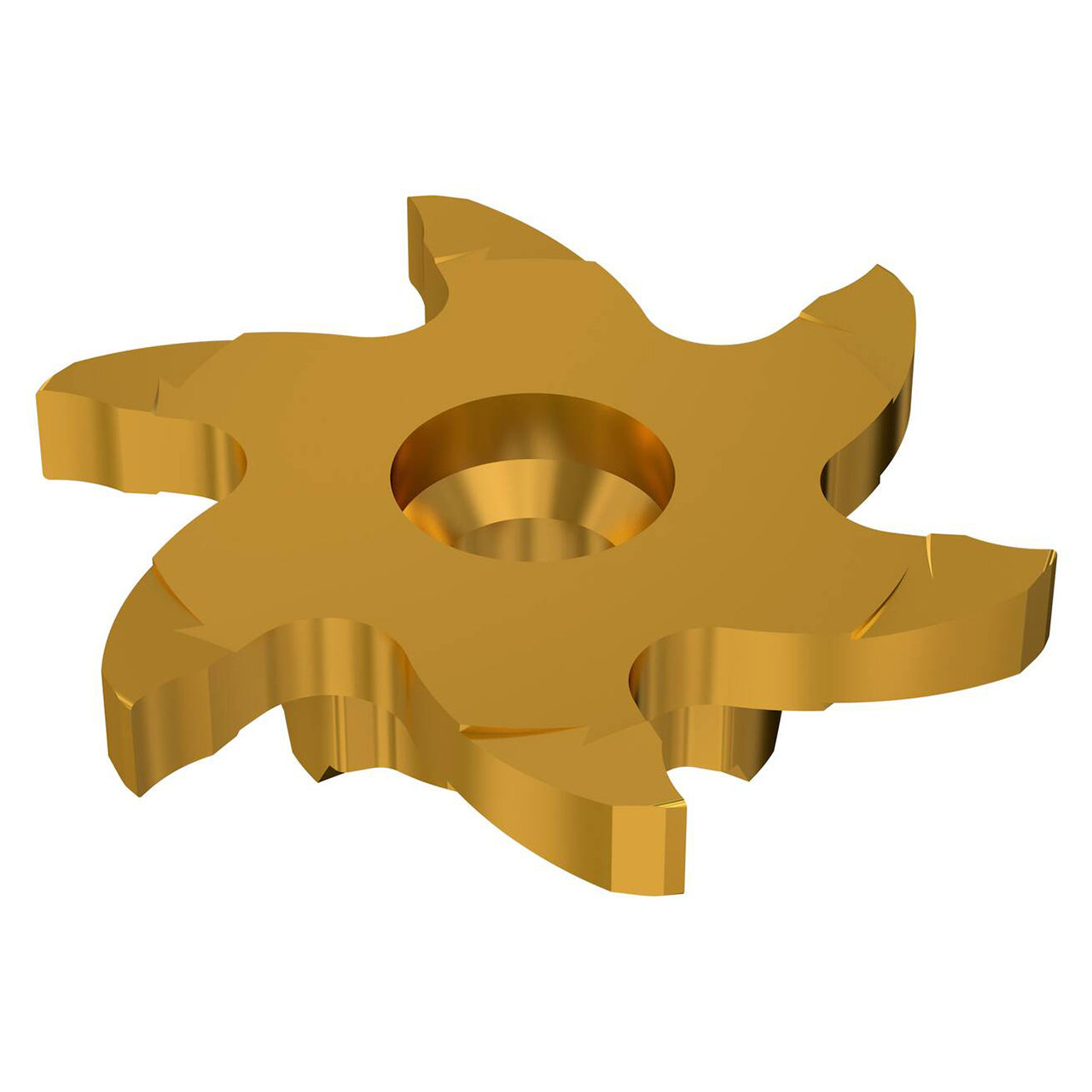

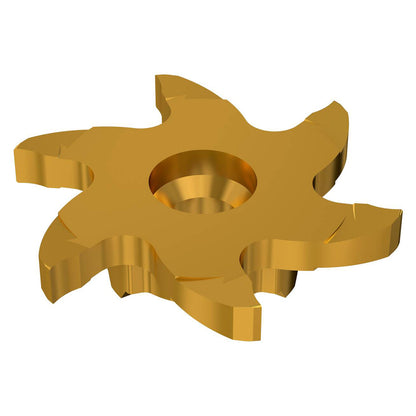

| Product Type | T-Slot Milling Tip Insert |
