Product Specifications
| Manufacturer Part Number | 03007263 |
| Minimum Cutting Diameter Internal (Decimal Inch) | 1.811" |
| Minimum Cutting Diameter Internal (mm) | 46.00mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.575" |
| Contact Surface Diameter Machine Side (mm) | 40.00mm |
| Body Diameter (Decimal Inch) | 1.575" |
| Body Diameter (mm) | 40.00mm |
| Functional Length (Decimal Inch) | 1.260" |
| Functional Length (mm) | 32.00mm |
| Shank Width (mm) | 38.50mm |
| Functional Width (mm) | 26.80mm |
| Shank Type | GL-Connection |
| Coolant Pressure | Bar |
| Coolant Supply Property | 1 |
| Cutting Direction | Right Hand |
| Insert Clamping System | P |

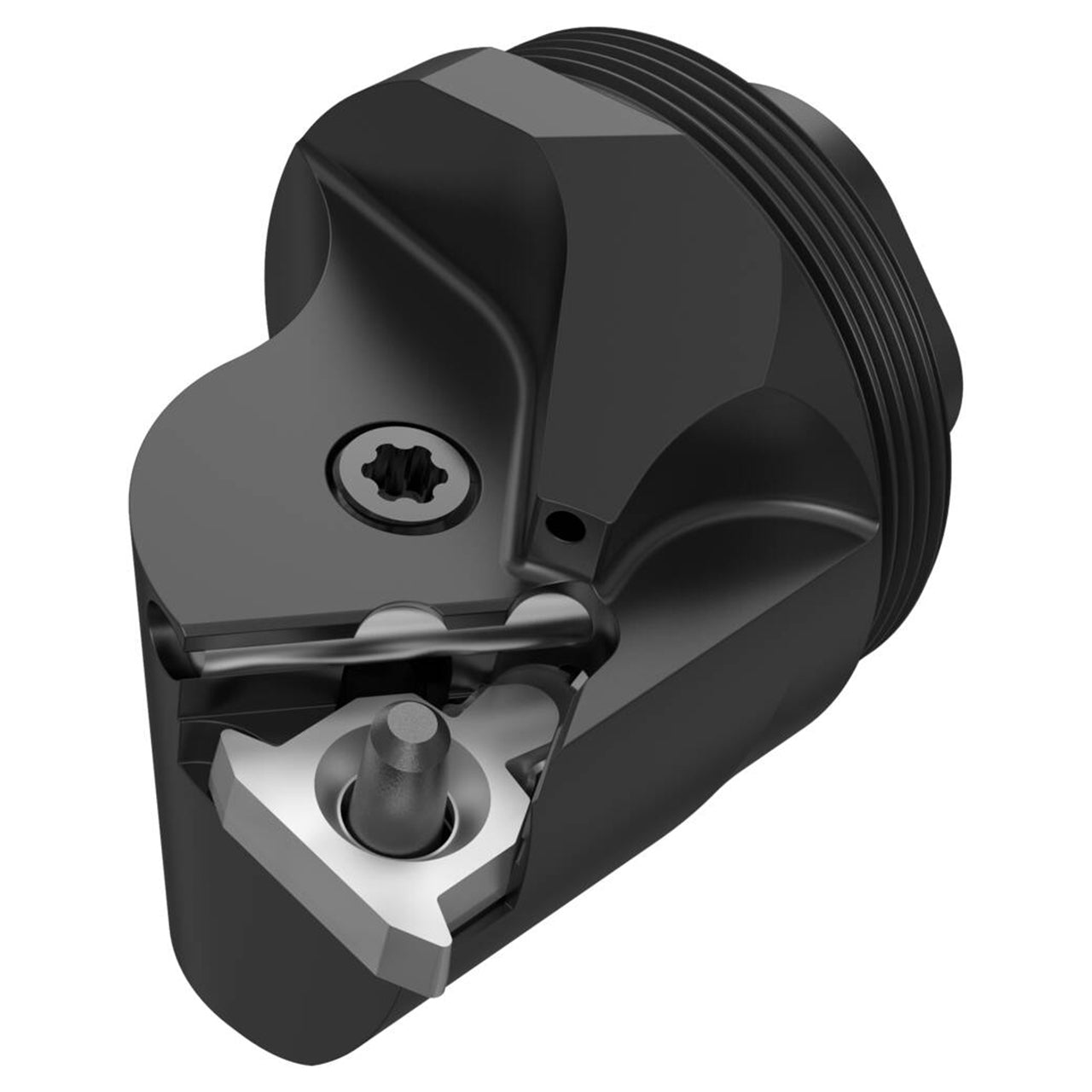

| Product Type | Modular Turning Head |
