Product Specifications
| Manufacturer Part Number | 03003976 |
| Cutting Diameter (Decimal Inch) | 1.500" |
| Cutting Diameter (mm) | 38.10mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.437" |
| Contact Surface Diameter Machine Side (mm) | 36.50mm |
| Thread Diameter Size | M20 |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 1.431" |
| Maximum Helical Interpolation Hole Diameter (mm) | 36.35mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 0.993" |
| Minimum Helical Interpolation Hole Diameter (mm) | 25.22mm |
| Functional Length (Decimal Inch) | 2.402" |
| Functional Length (mm) | 61.00mm |
| Overall Length (Decimal Inch) | 3.465" |
| Overall Length (mm) | 88.00mm |
| Maximum Depth of Cut (mm) | 44.00mm |
| Maximum Depth of Cut (Decimal Inch) | 1.732" |
| Connection Mounting Torque (Nm) | 120.0 Nm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Close |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Flute Helix Hand | Right Hand |
| Rake Radial Angle (Degree) | -6.4 Degree |
| Rake Radial Angle (Degree) | -6.4 Degree |
| Rake Orthogonal Angle (Degree) | -6.4 Degree |
| Axial Rake Angle (Degree) | 8 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Number of Flute | 4 |
| Maximum Ramping Angle (Degree) | 2.5 Degree |
| Maximum Rotational Speed (rpm) | 16400 rpm |
| Insert Shape Code | X |
| Shank Type | Combimaster |

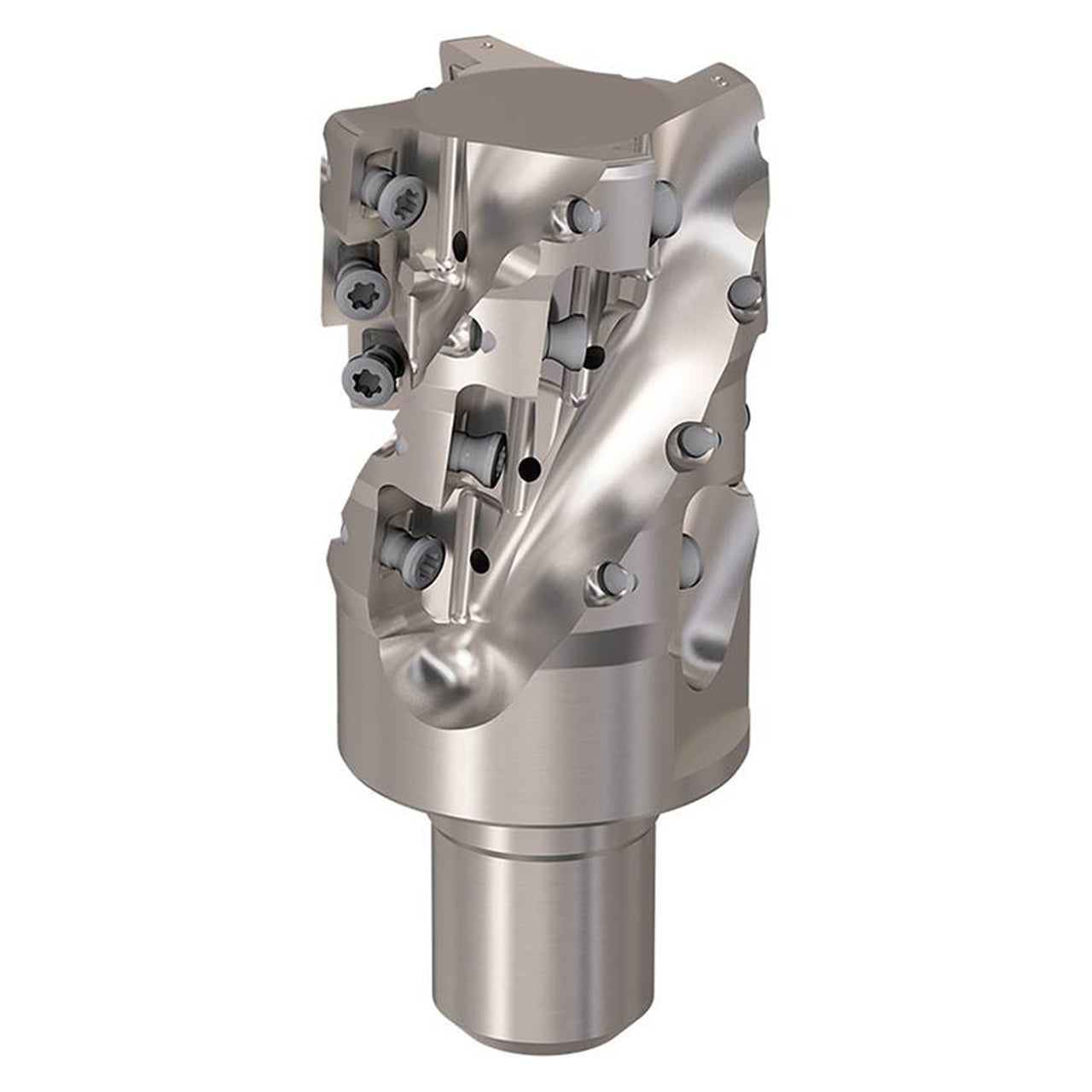

| Product Type | Indexable Square Shoulder Mill |
