Product Specifications
| Manufacturer Part Number | 03003389 |
| Cutting Diameter (mm) | 2.50mm |
| Cutting Diameter 1 (mm) | 2.50mm |
| Connection Diameter Machine Side (mm) | 6.00mm |
| Maximum Cutting Diameter (mm) | 5.00mm |
| Shank Diameter (mm) | 6.00mm |
| Neck Diameter (mm) | 4.40mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 6.50mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 9.16mm |
| Cutting Edge Effective Length (mm) | 0.30mm |
| Neck Length (mm) | 15.00mm |
| Neck Length 1 (mm) | 15.00mm |
| Minimum Clamping Length (mm) | 36.00mm |
| Length Variant Cataloque | 2 |
| Theoretical Cutting Edge Length (mm) | 3.75mm |
| Overall Length (mm) | 60.00mm |
| Number of Flute | 4 |
| Pheripheral Cutting Edge Count | 4 |
| Maximum Depth of Cut (mm) | 0.64mm |
| Curved Cutting Edge Radius (mm) | 2.02mm |
| Corner Radius (mm) | 0.40mm |
| Axial Runout (mm) | 0.01mm |
| Radial Runout (mm) | 0.01mm |
| Programming Radius (mm) | 0.64mm |
| Cutting Edge Count | 4 |
| Face Cutting Edge Count | 4 |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 95 Degree |
| Collision Angle (Degree) | 1.77 Degree |
| Maximum Ramping Angle (Degree) | 1.5 Degree |
| Cutting Direction | Right Hand |
| Flute Helix Hand | Straight |
| Cutting Geometry Type | JHF980 |
| Cutting Geometry Type Technical | JHF980 |
| Internal Coolant Channel | No |
| Cutting Item Material Type | Carbide |
| Shank Type | Cylindrical |
| Material | Carbide |
| Coating | MEGA |

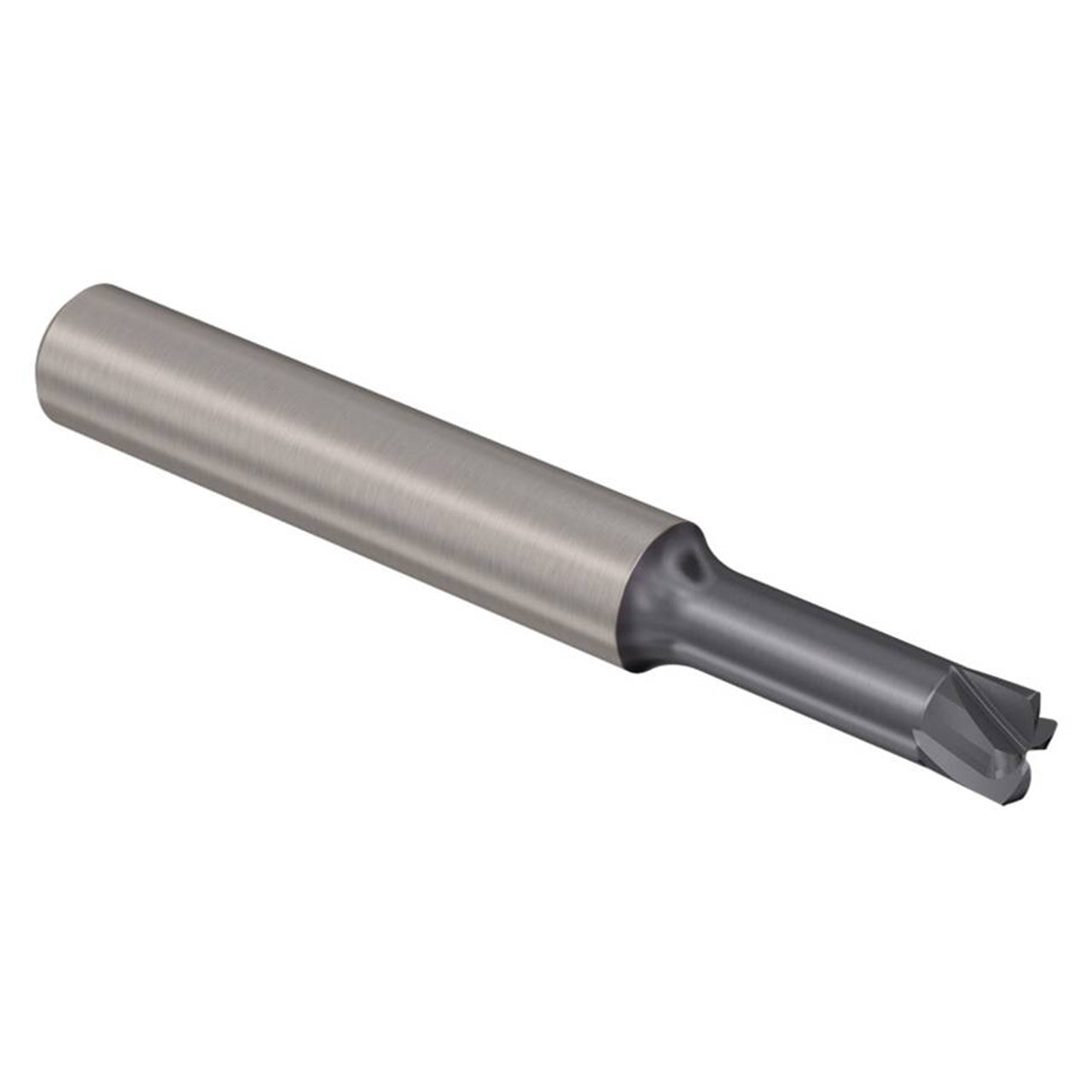

| Product Type | Corner Radius End Mill |
