Product Specifications
| Manufacturer Part Number | 03000147 |
| Thread Diameter (Decimal Inch) | 0.236" |
| Thread Diameter (mm) | 6.00mm |
| Threading Chamfer Length (Decimal Inch) | 0.197" |
| Threading Chamfer Length (mm) | 5.00mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.236" |
| Connection Diameter Machine Side (mm) | 6.00mm |
| Shank Diameter (Decimal Inch) | 0.236" |
| Shank Diameter (mm) | 6.00mm |
| Functional Length (Decimal Inch) | 2.972" |
| Functional Length (mm) | 75.50mm |
| Usable Length (Decimal Inch) | 1.063" |
| Usable Length (mm) | 27.00mm |
| Overall Length (Decimal Inch) | 3.150" |
| Overall Length (mm) | 80.00mm |
| Thread Length (Decimal Inch) | 0.591" |
| Thread Length (mm) | 15.00mm |
| Thread Diameter Size | M6 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.201" |
| Recommended Premachined Hole Diameter (mm) | 5.10mm |
| Connection Size Code | 6.00X4.90 |
| Connection Size Code Machine Side | 6.00X4.90 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.203" |
| Maximum Premachined Hole Diameter (mm) | 5.15mm |
| Minimum Thread Pitch (Decimal Inch) | 0.039" |
| Minimum Thread Pitch (mm) | 1.00mm |
| Maximum Thread Pitch (Decimal Inch) | 0.039" |
| Maximum Thread Pitch (mm) | 1.00mm |
| Number of Flute | 3 |
| Coolant Entry Style Code | 1 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 2 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 6H |
| Threading Chamfer Type | B |
| Thread Form Type | M |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | ISO-N |
| Cutting Geometry Type Technical | Straight with spiral point |
| Material | HSS-PM |
| Coating | Uncoated |

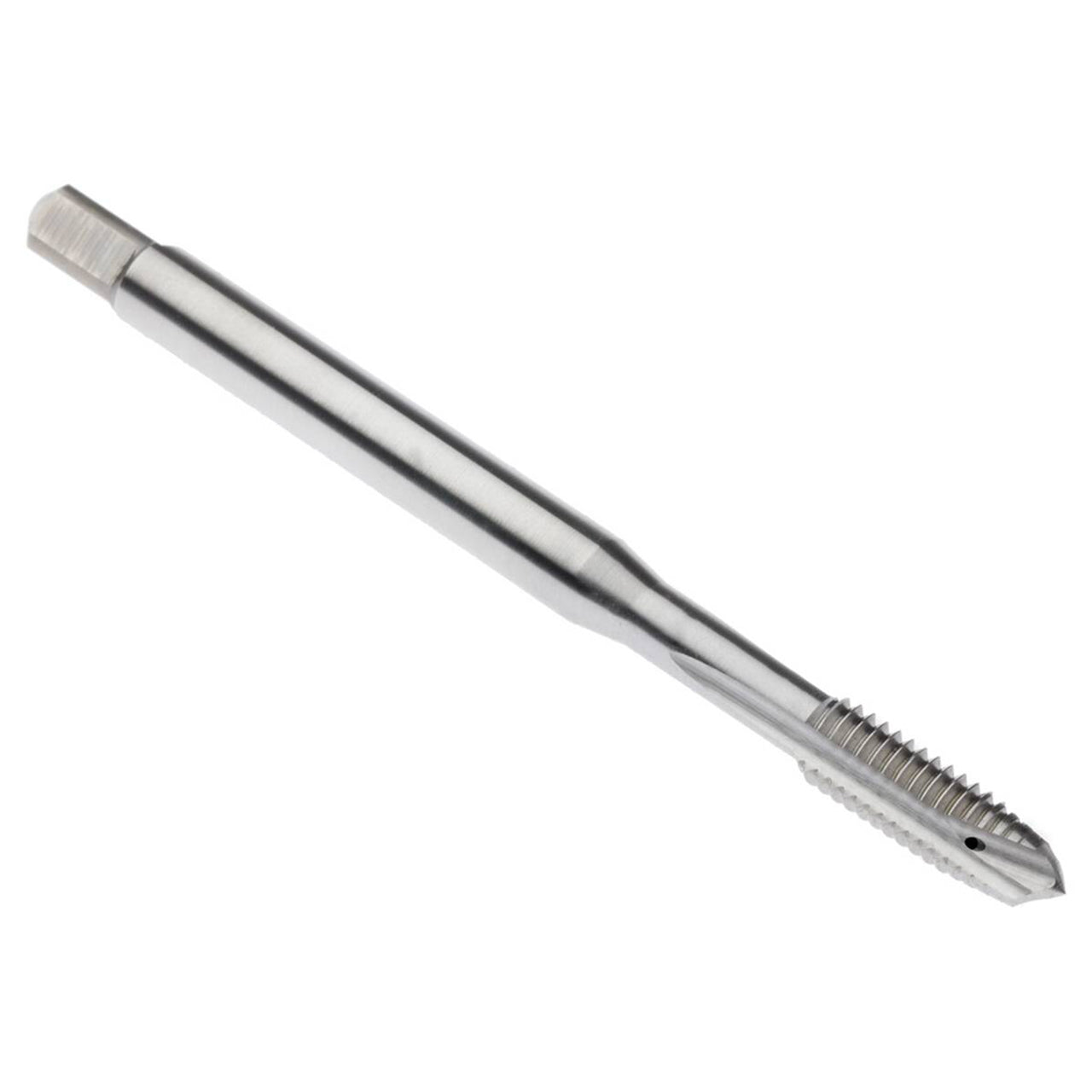

| Product Type | Spiral Point Tap |
