Product Specifications
| Manufacturer Part Number | 03000130 |
| Thread Diameter (Decimal Inch) | 0.394" |
| Thread Diameter (mm) | 10.00mm |
| Threading Chamfer Length (Decimal Inch) | 0.177" |
| Threading Chamfer Length (mm) | 4.50mm |
| Tap Chamfer Length (Decimal Inch) | 0.162" |
| Tap Chamfer Length (mm) | 4.13mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.394" |
| Connection Diameter Machine Side (mm) | 10.00mm |
| Shank Diameter (Decimal Inch) | 0.394" |
| Shank Diameter (mm) | 10.00mm |
| Functional Length (Decimal Inch) | 3.775" |
| Functional Length (mm) | 95.88mm |
| Usable Length (Decimal Inch) | 1.535" |
| Usable Length (mm) | 39.00mm |
| Overall Length (Decimal Inch) | 3.937" |
| Overall Length (mm) | 100.00mm |
| Thread Length (Decimal Inch) | 0.595" |
| Thread Length (mm) | 15.10mm |
| Thread Diameter Size | M10 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.339" |
| Recommended Premachined Hole Diameter (mm) | 8.60mm |
| Connection Size Code | 10.00X8.00 |
| Connection Size Code Machine Side | 10.00X8.00 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.342" |
| Maximum Premachined Hole Diameter (mm) | 8.68mm |
| Minimum Thread Pitch (Decimal Inch) | 0.059" |
| Minimum Thread Pitch (mm) | 1.50mm |
| Maximum Thread Pitch (Decimal Inch) | 0.059" |
| Maximum Thread Pitch (mm) | 1.50mm |
| Flute Helix Angle (Degree) | 48 Degree |
| Number of Flute | 3 |
| Coolant Entry Style Code | 1 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 1 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 6H |
| Threading Chamfer Type | C |
| Thread Form Type | M |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | ISO-M |
| Cutting Geometry Type Technical | Spiral |
| Material | HSS-E |
| Coating | TiCN |

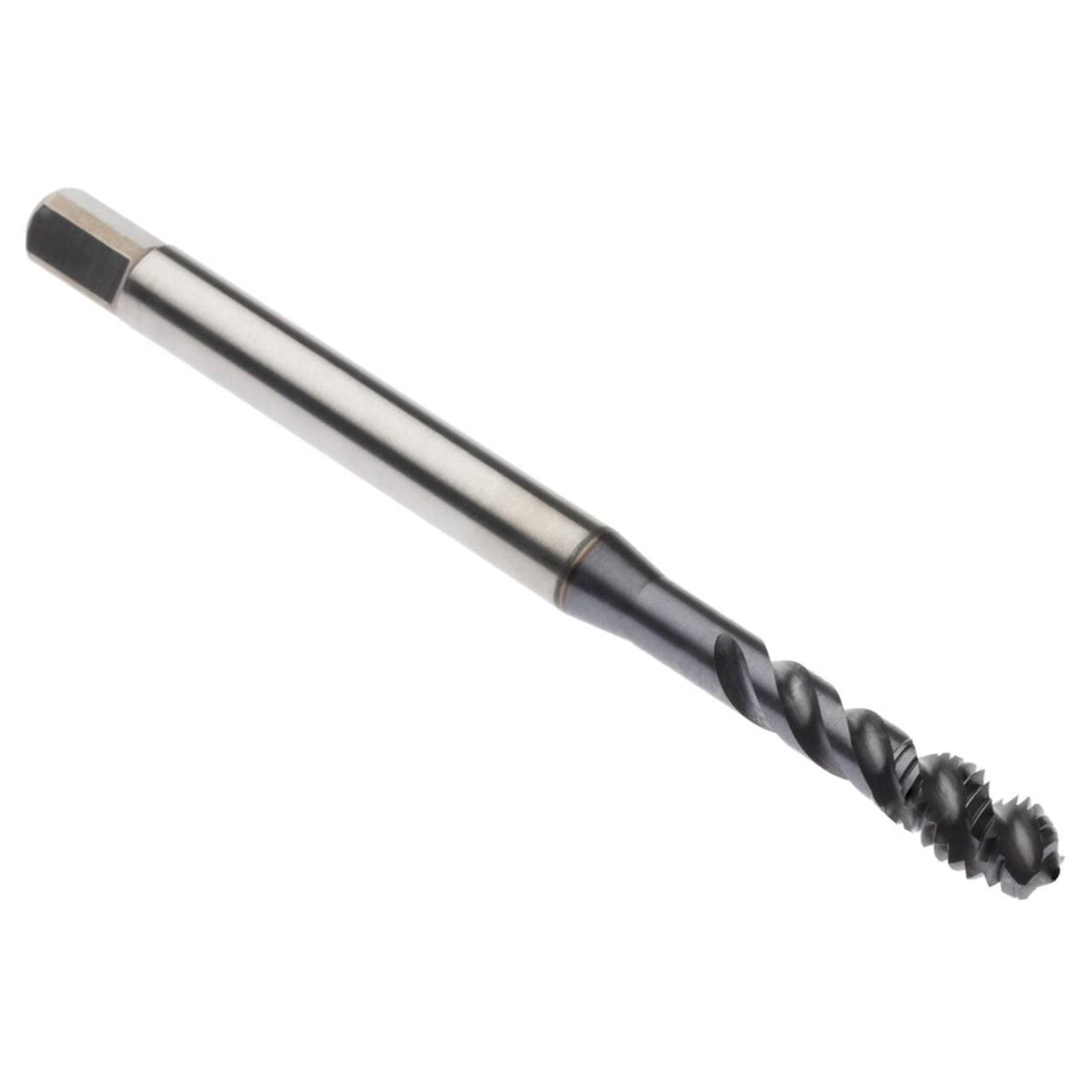

| Product Type | Spiral Flute Tap |
