Product Specifications
| Manufacturer Part Number | 03000076 |
| Thread Diameter (Decimal Inch) | 0.087" |
| Thread Diameter (mm) | 2.20mm |
| Threading Chamfer Length (Decimal Inch) | 0.089" |
| Threading Chamfer Length (mm) | 2.25mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.110" |
| Connection Diameter Machine Side (mm) | 2.80mm |
| Shank Diameter (Decimal Inch) | 0.110" |
| Shank Diameter (mm) | 2.80mm |
| Functional Length (Decimal Inch) | 1.692" |
| Functional Length (mm) | 42.97mm |
| Usable Length (Decimal Inch) | 0.472" |
| Usable Length (mm) | 12.00mm |
| Overall Length (Decimal Inch) | 1.772" |
| Overall Length (mm) | 45.00mm |
| Thread Length (Decimal Inch) | 0.276" |
| Thread Length (mm) | 7.00mm |
| Thread Diameter Size | M2.2 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.071" |
| Recommended Premachined Hole Diameter (mm) | 1.80mm |
| Connection Size Code | 2.80X2.10 |
| Connection Size Code Machine Side | 2.80X2.10 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.072" |
| Maximum Premachined Hole Diameter (mm) | 1.84mm |
| Minimum Thread Pitch (Decimal Inch) | 0.018" |
| Minimum Thread Pitch (mm) | 0.45mm |
| Maximum Thread Pitch (Decimal Inch) | 0.018" |
| Maximum Thread Pitch (mm) | 0.45mm |
| Number of Flute | 2 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 6H |
| Threading Chamfer Type | B |
| Thread Form Type | M |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | ISO-M |
| Cutting Geometry Type Technical | Straight with spiral point |
| Material | HSS-E |
| Coating | TiCN |

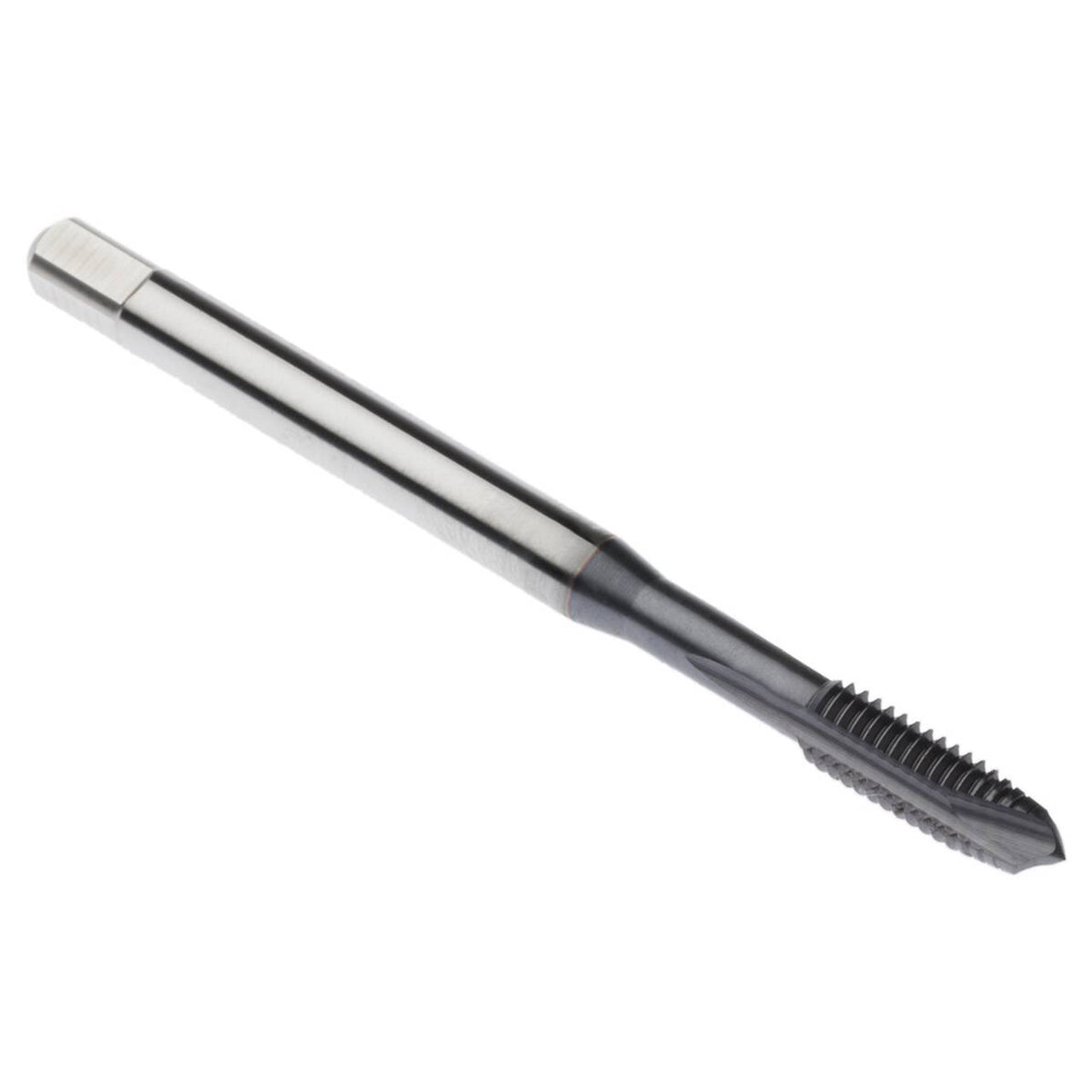

| Product Type | Spiral Point Tap |
