Product Specifications
| Manufacturer Part Number | 02999995 |
| Thread Diameter (Decimal Inch) | 0.063" |
| Thread Diameter (mm) | 1.60mm |
| Threading Chamfer Length (Decimal Inch) | 0.041" |
| Threading Chamfer Length (mm) | 1.05mm |
| Tap Chamfer Length (Decimal Inch) | 0.028" |
| Tap Chamfer Length (mm) | 0.70mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.098" |
| Connection Diameter Machine Side (mm) | 2.50mm |
| Shank Diameter (Decimal Inch) | 0.098" |
| Shank Diameter (mm) | 2.50mm |
| Functional Length (Decimal Inch) | 1.547" |
| Functional Length (mm) | 39.30mm |
| Usable Length (Decimal Inch) | 0.236" |
| Usable Length (mm) | 6.00mm |
| Overall Length (Decimal Inch) | 1.575" |
| Overall Length (mm) | 40.00mm |
| Thread Length (Decimal Inch) | 0.158" |
| Thread Length (mm) | 4.00mm |
| Thread Diameter Size | M1.6 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.051" |
| Recommended Premachined Hole Diameter (mm) | 1.30mm |
| Connection Size Code | 2.50X2.10 |
| Connection Size Code Machine Side | 2.50X2.10 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.052" |
| Maximum Premachined Hole Diameter (mm) | 1.32mm |
| Minimum Thread Pitch (Decimal Inch) | 0.014" |
| Minimum Thread Pitch (mm) | 0.35mm |
| Maximum Thread Pitch (Decimal Inch) | 0.014" |
| Maximum Thread Pitch (mm) | 0.35mm |
| Flute Helix Angle (Degree) | 48 Degree |
| Number of Flute | 2 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 6HX |
| Threading Chamfer Type | C |
| Thread Form Type | M |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | ISO-P |
| Cutting Geometry Type Technical | Spiral |
| Material | HSS-E-PM |
| Coating | AlTiN |

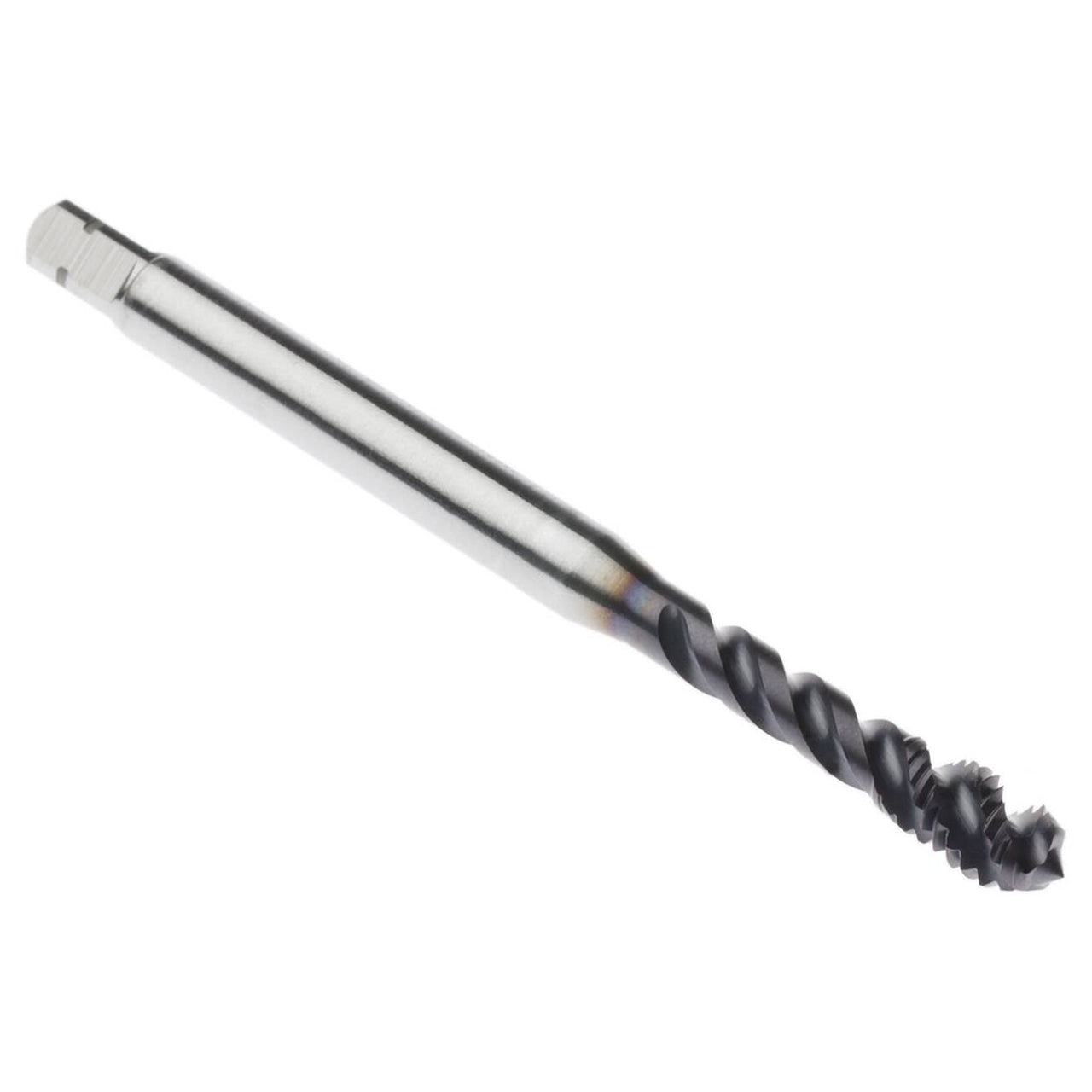

| Product Type | Spiral Flute Tap |
