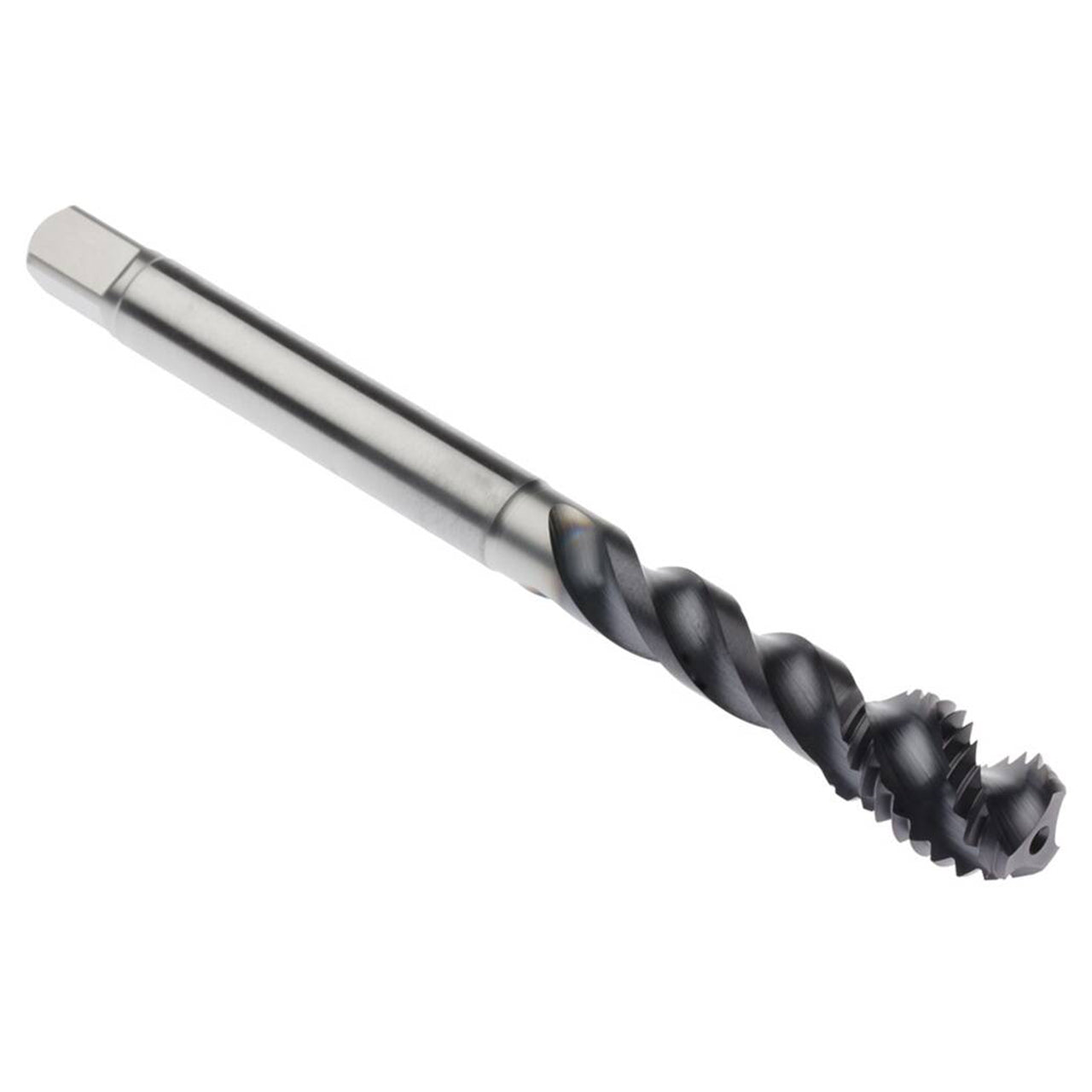

Product Specifications
| Manufacturer Part Number | 02999927 |
| Thread Diameter (Decimal Inch) | 1.063" |
| Thread Diameter (mm) | 27.00mm |
| Threading Chamfer Length (Decimal Inch) | 0.591" |
| Threading Chamfer Length (mm) | 15.00mm |
| Tap Chamfer Length (Decimal Inch) | 0.497" |
| Tap Chamfer Length (mm) | 12.63mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.787" |
| Connection Diameter Machine Side (mm) | 20.00mm |
| Shank Diameter (Decimal Inch) | 0.787" |
| Shank Diameter (mm) | 20.00mm |
| Functional Length (Decimal Inch) | 5.802" |
| Functional Length (mm) | 147.37mm |
| Usable Length (Decimal Inch) | 3.819" |
| Usable Length (mm) | 97.00mm |
| Overall Length (Decimal Inch) | 6.299" |
| Overall Length (mm) | 160.00mm |
| Thread Length (Decimal Inch) | 1.496" |
| Thread Length (mm) | 38.00mm |
| Thread Diameter Size | M27 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.945" |
| Recommended Premachined Hole Diameter (mm) | 24.00mm |
| Connection Size Code | 20.00X16.00 |
| Connection Size Code Machine Side | 20.00X16.00 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.955" |
| Maximum Premachined Hole Diameter (mm) | 24.25mm |
| Minimum Thread Pitch (Decimal Inch) | 0.118" |
| Minimum Thread Pitch (mm) | 3.00mm |
| Maximum Thread Pitch (Decimal Inch) | 0.118" |
| Maximum Thread Pitch (mm) | 3.00mm |
| Number of Flute | 4 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 6HX |
| Threading Chamfer Type | B |
| Thread Form Type | M |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | ISO-P |
| Cutting Geometry Type Technical | Straight with spiral point |
| Material | HSS-E-PM |
| Coating | AlTiN |
| Product Type | Spiral Point Tap |
