Product Specifications
| Manufacturer Part Number | 02999922 |
| Thread Diameter (Decimal Inch) | 0.630" |
| Thread Diameter (mm) | 16.00mm |
| Threading Chamfer Length (Decimal Inch) | 0.394" |
| Threading Chamfer Length (mm) | 10.00mm |
| Tap Chamfer Length (Decimal Inch) | 0.364" |
| Tap Chamfer Length (mm) | 9.25mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.472" |
| Connection Diameter Machine Side (mm) | 12.00mm |
| Shank Diameter (Decimal Inch) | 0.472" |
| Shank Diameter (mm) | 12.00mm |
| Functional Length (Decimal Inch) | 3.967" |
| Functional Length (mm) | 100.75mm |
| Usable Length (Decimal Inch) | 2.677" |
| Usable Length (mm) | 68.00mm |
| Overall Length (Decimal Inch) | 4.331" |
| Overall Length (mm) | 110.00mm |
| Thread Length (Decimal Inch) | 0.984" |
| Thread Length (mm) | 25.00mm |
| Thread Diameter Size | M16 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.555" |
| Recommended Premachined Hole Diameter (mm) | 14.10mm |
| Connection Size Code | 12.00X9.00 |
| Connection Size Code Machine Side | 12.00X9.00 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.559" |
| Maximum Premachined Hole Diameter (mm) | 14.21mm |
| Minimum Thread Pitch (Decimal Inch) | 0.079" |
| Minimum Thread Pitch (mm) | 2.00mm |
| Maximum Thread Pitch (Decimal Inch) | 0.079" |
| Maximum Thread Pitch (mm) | 2.00mm |
| Number of Flute | 4 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 6HX |
| Threading Chamfer Type | B |
| Thread Form Type | M |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | ISO-P |
| Cutting Geometry Type Technical | Straight with spiral point |
| Material | HSS-E-PM |
| Coating | AlTiN |

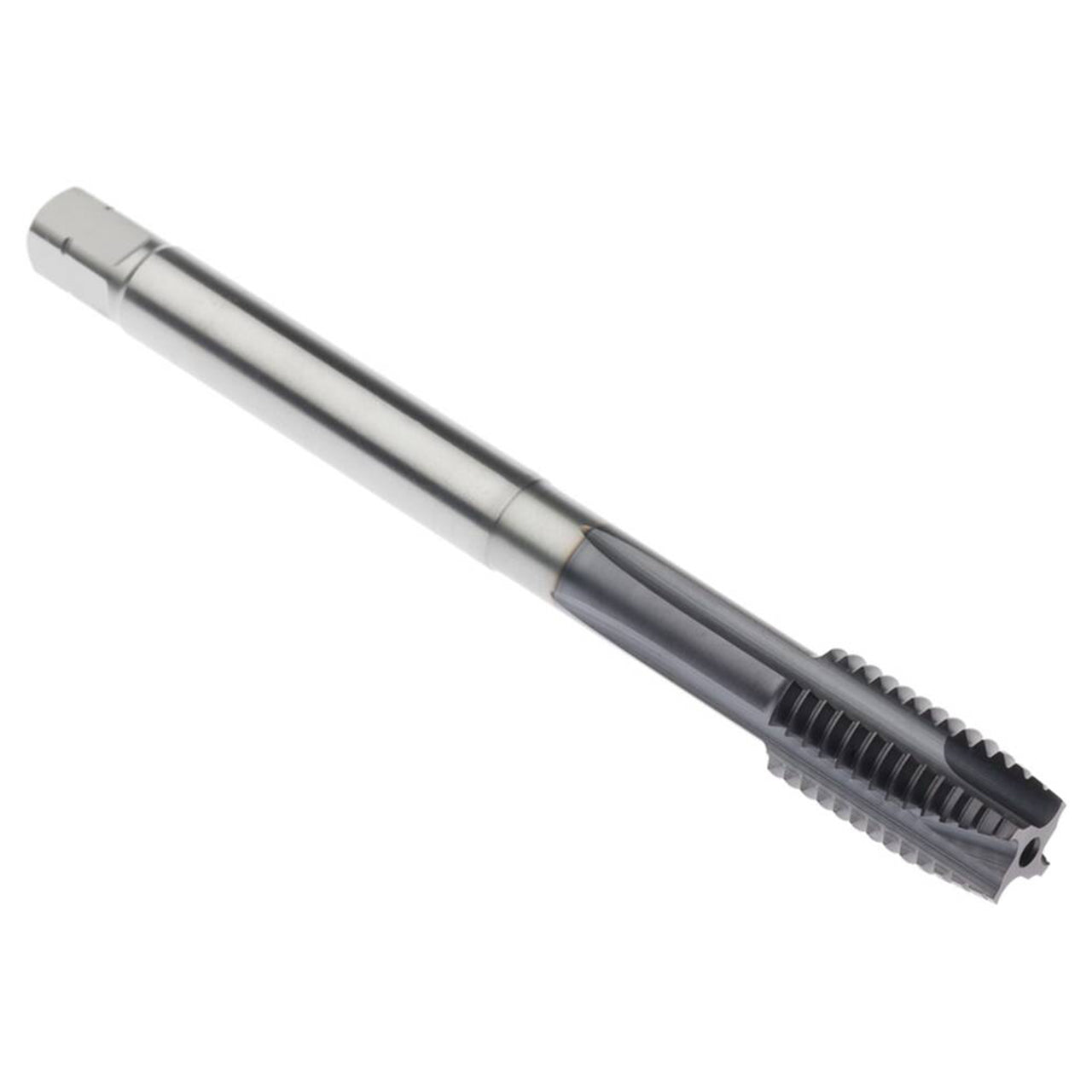

| Product Type | Spiral Point Tap |
