Product Specifications
| Manufacturer Part Number | 02998686 |
| Body Diameter (Decimal Inch) | 1.750" |
| Body Diameter (mm) | 44.45mm |
| Body Diameter 1 (Decimal Inch) | 2.520" |
| Body Diameter 1 (mm) | 64.00mm |
| Connection Diameter Workpiece Side (Decimal Inch) | 0.750" |
| Connection Diameter Workpiece Side (mm) | 19.05mm |
| Shank Diameter (Decimal Inch) | 0.750" |
| Shank Diameter (mm) | 19.05mm |
| Body Length (Decimal Inch) | 8.248" |
| Body Length (mm) | 209.50mm |
| Functional Length (Decimal Inch) | 9.000" |
| Functional Length (mm) | 228.60mm |
| Clamping Length (Decimal Inch) | 0.689" |
| Clamping Length (mm) | 17.50mm |
| Overall Length (Decimal Inch) | 13.695" |
| Overall Length (mm) | 347.85mm |
| Body Half Taper Angle Degree) | 2.6 Degree |
| Data Chip Provision | 1 |
| Maximum Rotational Speed (rpm) | 8000 rpm |

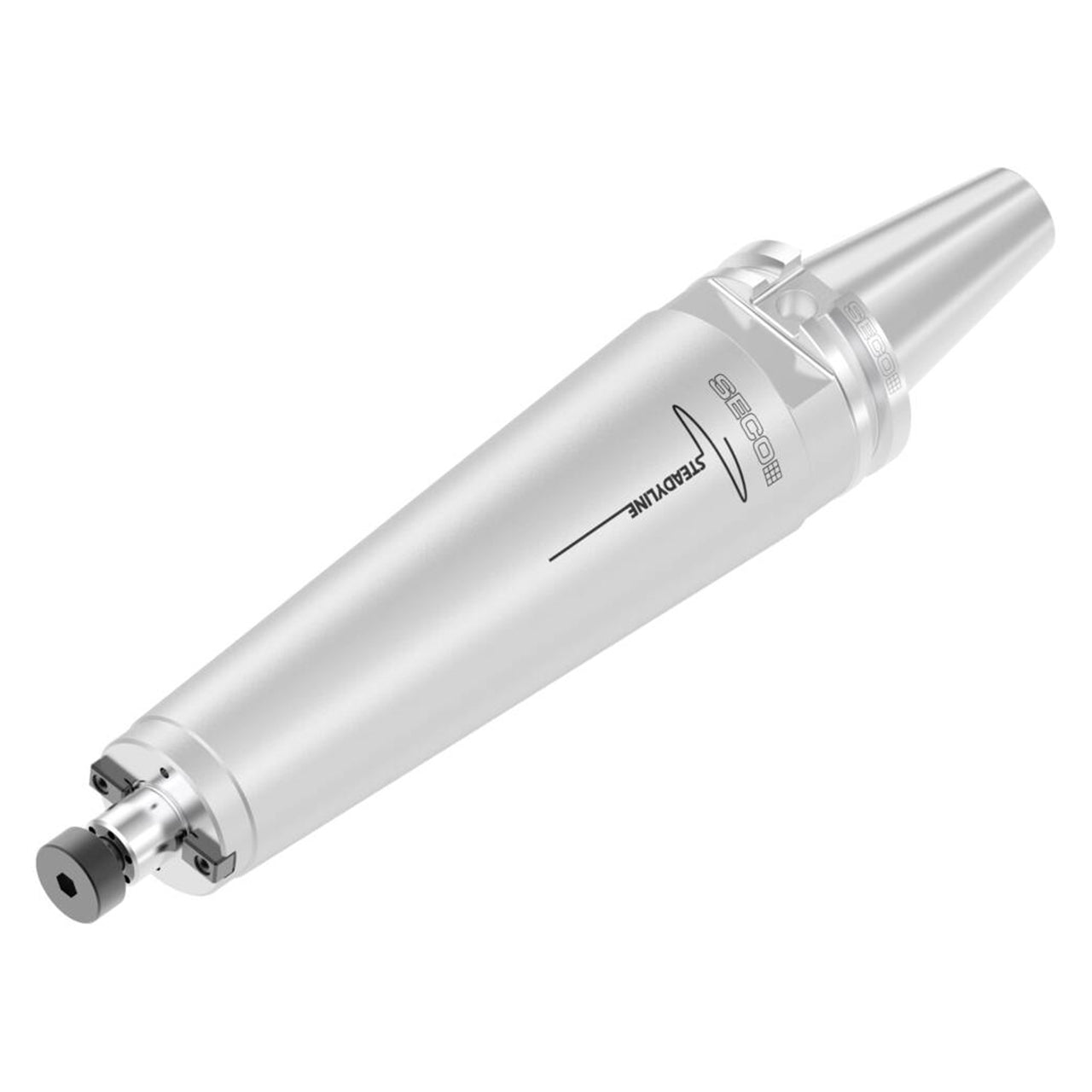

| Product Type | Shell Mill Holder |
