Product Specifications
| Manufacturer Part Number | 02994386 |
| Minimum Cutting Diameter Internal (Decimal Inch) | 1.969" |
| Minimum Cutting Diameter Internal (mm) | 50.00mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.575" |
| Contact Surface Diameter Machine Side (mm) | 40.00mm |
| Functional Length (Decimal Inch) | 1.260" |
| Functional Length (mm) | 32.00mm |
| Insert Width (Decimal Inch) | 0.217" |
| Insert Width (mm) | 5.50mm |
| Maximum Radial Cutting Depth (Decimal Inch) | 0.043" |
| Maximum Radial Cutting Depth (mm) | 1.10mm |
| Maximum Cutting Depth (Decimal Inch) | 0.053" |
| Maximum Cutting Depth (mm) | 1.34mm |
| Connection Size Code | 3 |
| Shank Type | GL-Connection |
| Coolant Entry Style Code | 1 |
| Coolant Pressure | Bar |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 10 |
| Rake Radial Angle (Degree) | -2 Degree |
| Axial Rake Angle (Degree) | -0.17 Degree |
| Cutting Direction | Left Hand |
| Insert Clamping System | D |
| Tool Cutting Edge Angle (Degree) | 95 Degree |

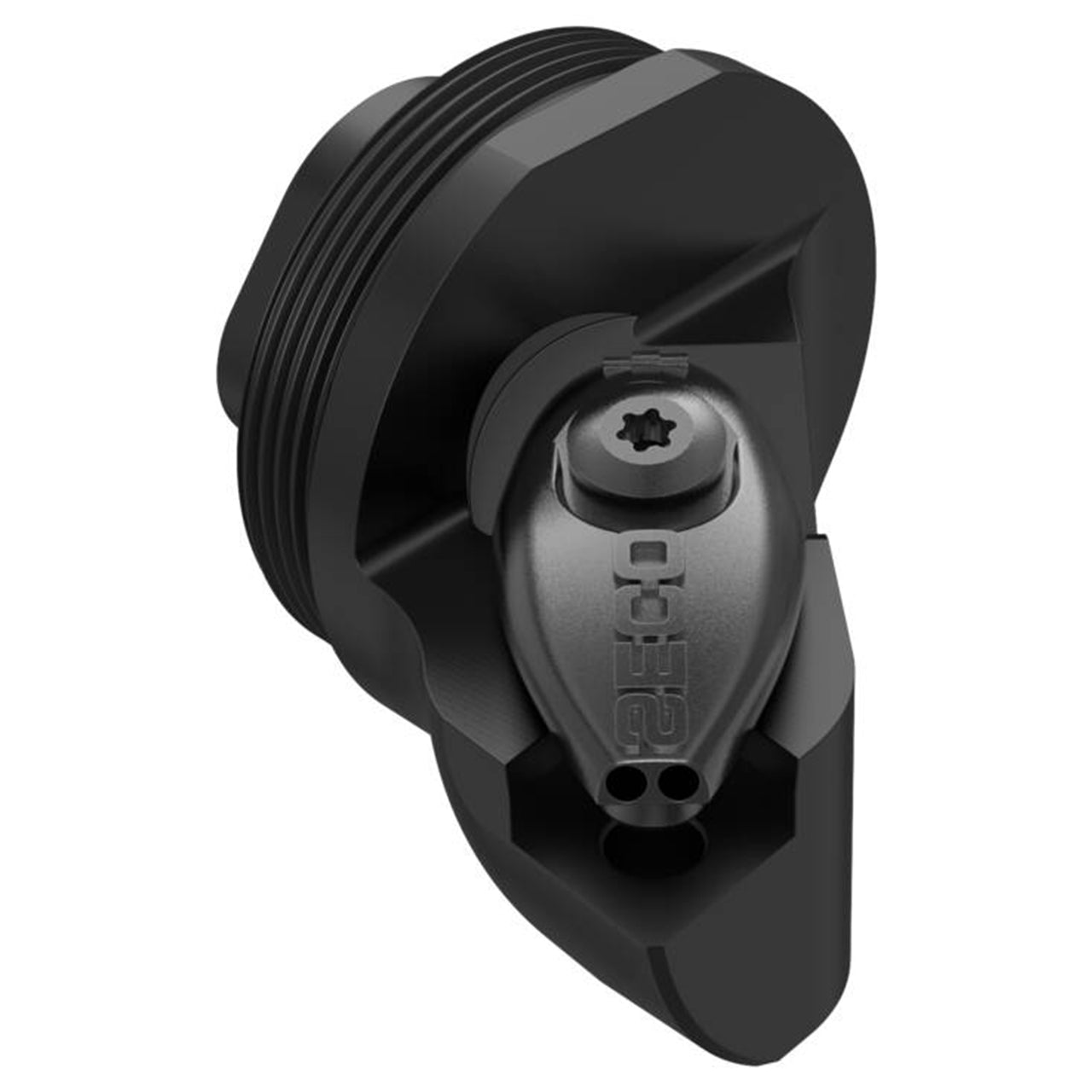

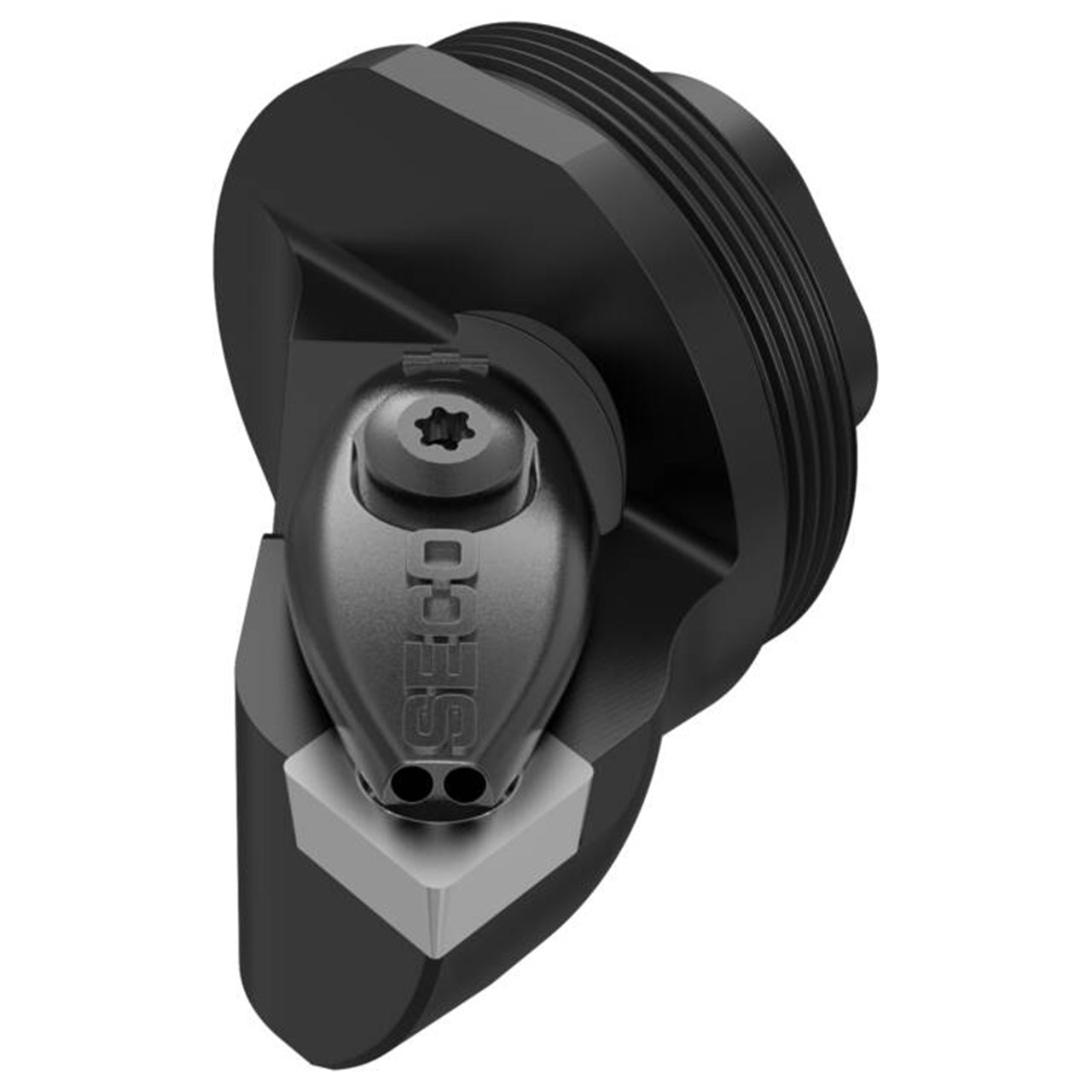

| Product Type | Modular Turning Head |
