Product Specifications
| Manufacturer Part Number | 02994327 |
| Minimum Cutting Diameter Internal (Decimal Inch) | 1.575" |
| Minimum Cutting Diameter Internal (mm) | 40.00mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.260" |
| Contact Surface Diameter Machine Side (mm) | 32.00mm |
| Overall Length (Decimal Inch) | 1.850" |
| Overall Length (mm) | 47.00mm |
| Functional Length (Decimal Inch) | 1.260" |
| Functional Length (mm) | 32.00mm |
| Maximum Radial Cutting Depth (Decimal Inch) | 0.232" |
| Maximum Radial Cutting Depth (mm) | 5.88mm |
| Maximum Cutting Depth (Decimal Inch) | 0.059" |
| Maximum Cutting Depth (mm) | 1.50mm |
| Shank Type | GL-Connection |
| Coolant Entry Style Code | 1 |
| Coolant Pressure | Bar |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 10 |
| Rake Radial Angle (Degree) | -13.68 Degree |
| Rake Orthogonal Angle (Degree) | -6 Degree |
| Axial Rake Angle (Degree) | -6.73 Degree |
| Cutting Direction | Left Hand |
| Insert Clamping System | D |
| Tool Cutting Edge Angle (Degree) | 93 Degree |
| Tool Cutting Edge Angle Code | U |

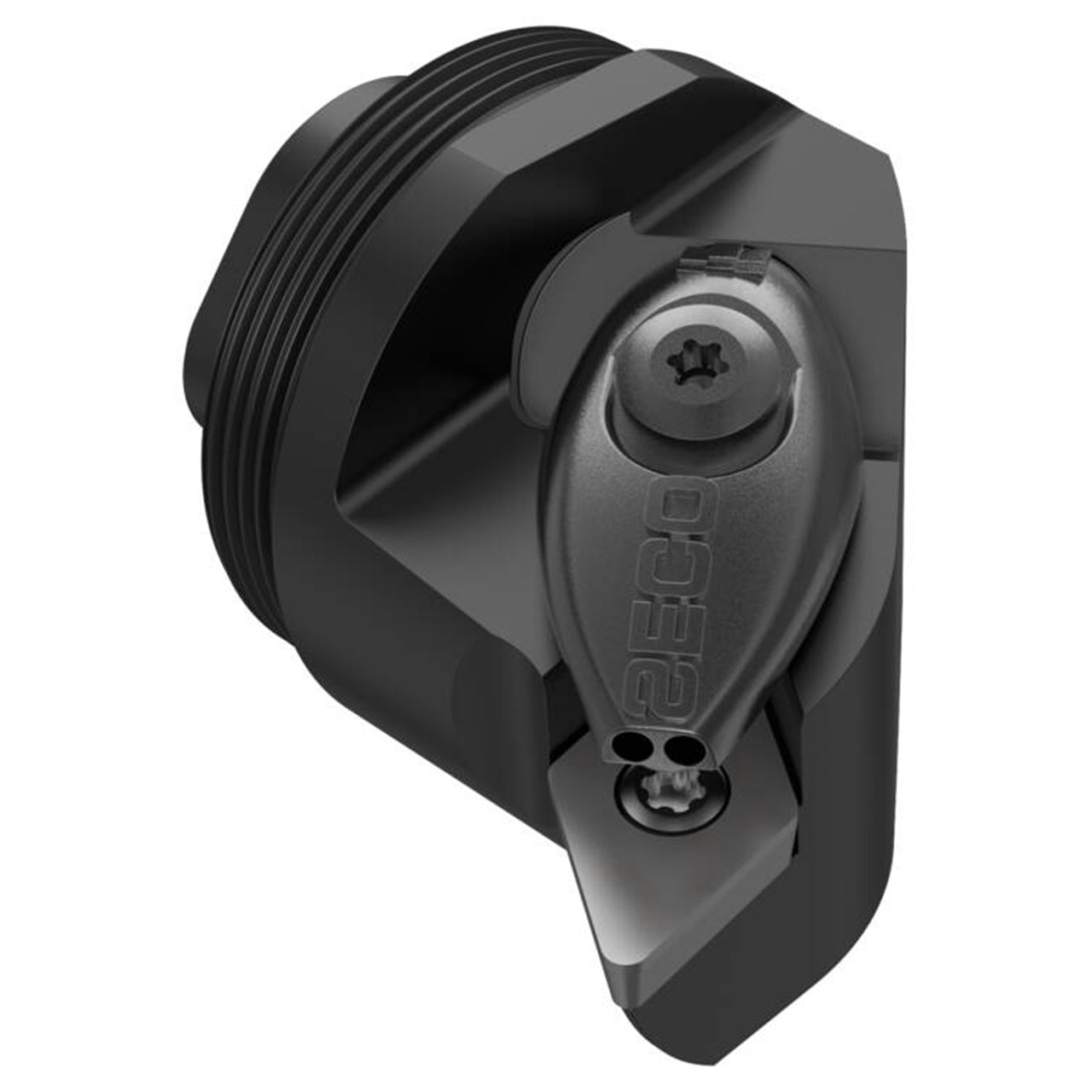

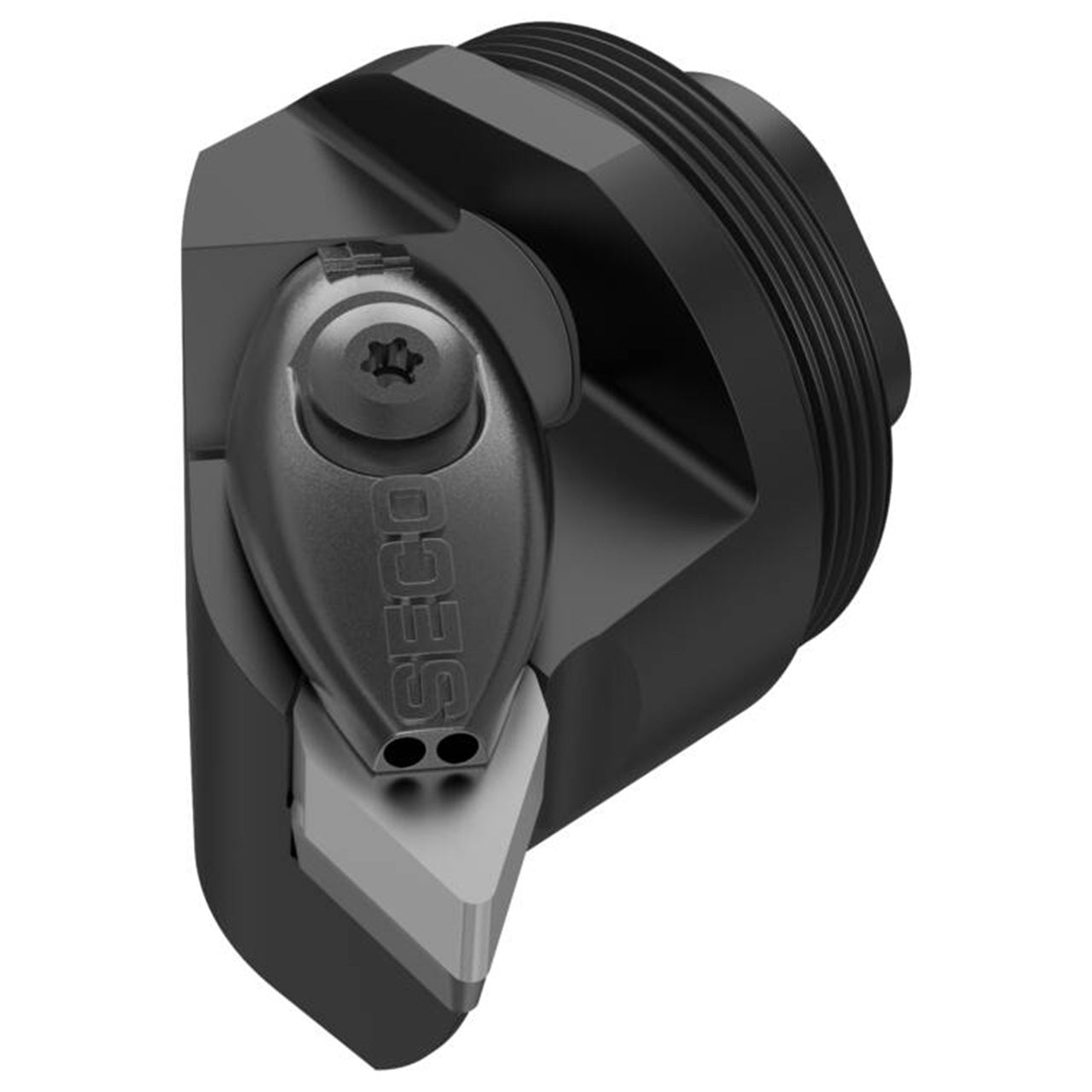

| Product Type | Modular Turning Head |
