Product Specifications
| Manufacturer Part Number | 02993962 |
| Cutting Diameter (Decimal Inch) | 8.197" |
| Cutting Diameter (mm) | 208.20mm |
| Connection Bore Diameter (Decimal Inch) | 1.500" |
| Connection Bore Diameter (mm) | 38.10mm |
| Maximum Cutting Diameter (Decimal Inch) | 8.197" |
| Maximum Cutting Diameter (mm) | 208.20mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 3.500" |
| Contact Surface Diameter Machine Side (mm) | 88.90mm |
| Functional Length (Decimal Inch) | 2.050" |
| Functional Length (mm) | 52.07mm |
| Keyway Width (Decimal Inch) | 0.630" |
| Keyway Width (mm) | 16.00mm |
| Minimum Cutting Width (Decimal Inch) | 0.631" |
| Minimum Cutting Width (mm) | 16.03mm |
| Maximum Depth of Cut (Decimal Inch) | 0.313" |
| Maximum Depth of Cut (mm) | 7.94mm |
| Depth of Key Way (Decimal Inch) | 0.382" |
| Depth of Key Way (mm) | 9.70mm |
| Maximum Cutting Depth (Decimal Inch) | 2.329" |
| Maximum Cutting Depth (mm) | 59.15mm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Rake Radial Angle (Degree) | -6 Degree |
| Cutting Direction | Left Hand |
| Maximum Rotational Speed (rpm) | 6500 rpm |
| Cutting Pitch Density | Normal |
| Pocket Seat Code of The Cutter | RP..1605 |
| Cutting Item Material Type | Steel |
| Shank Type | Arbor |

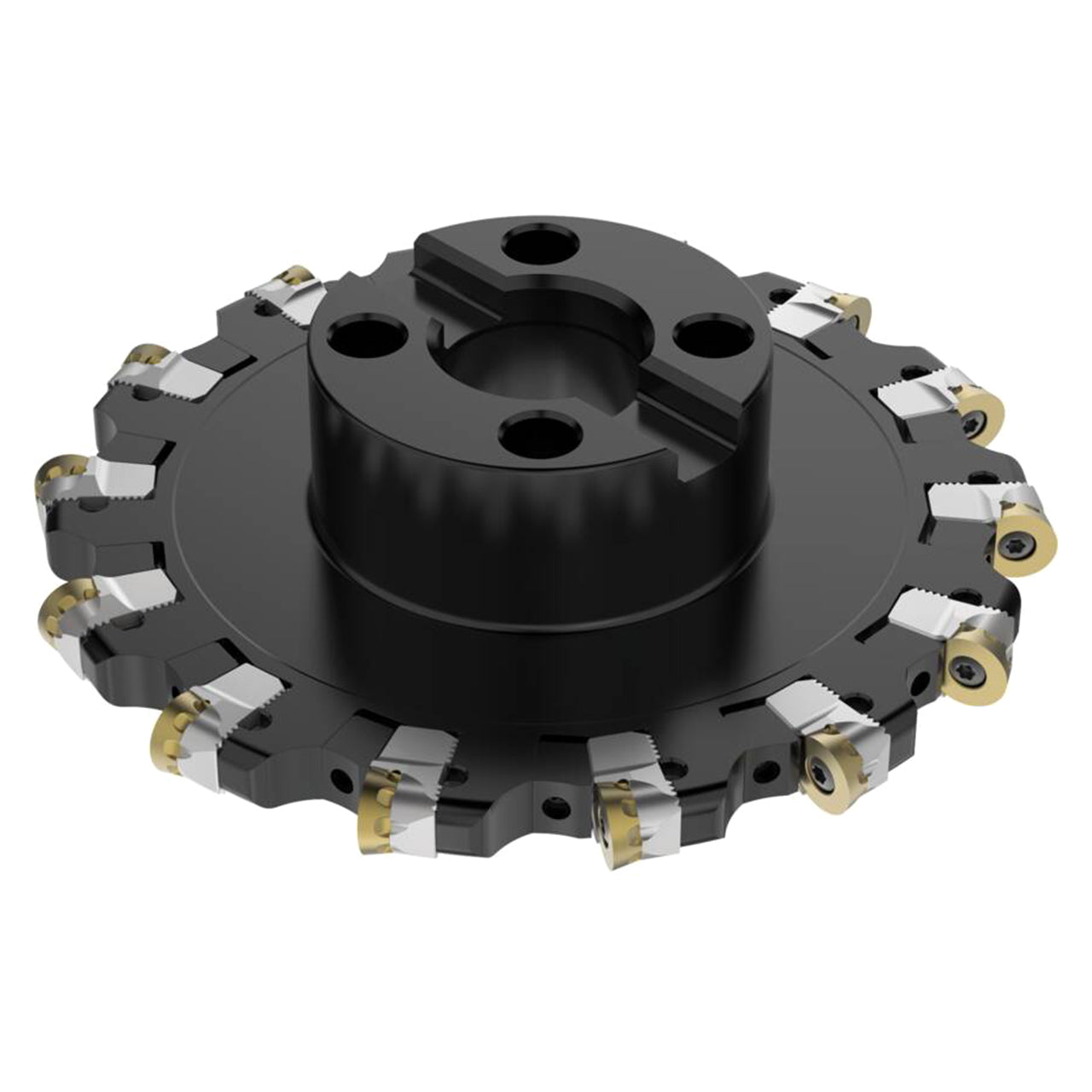

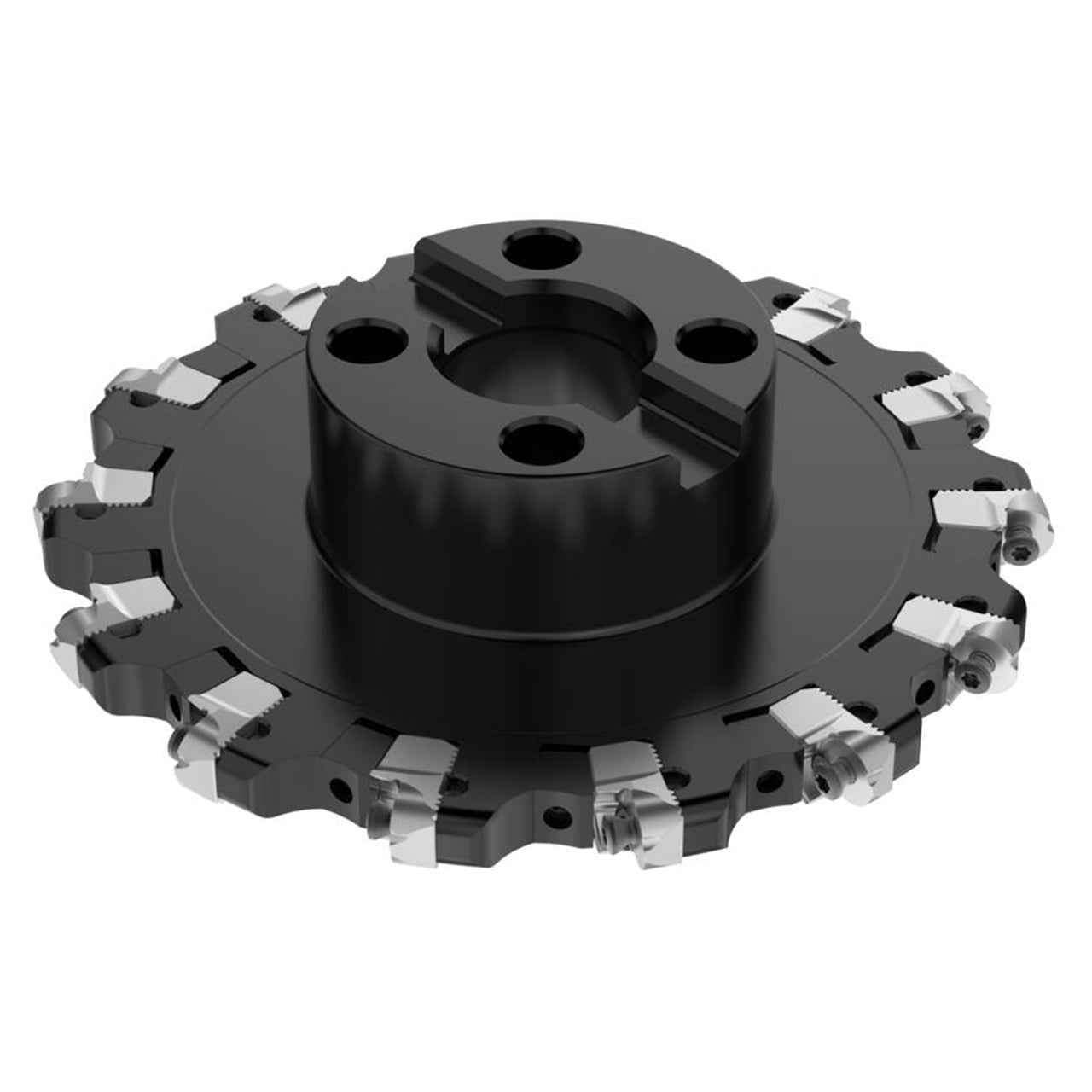

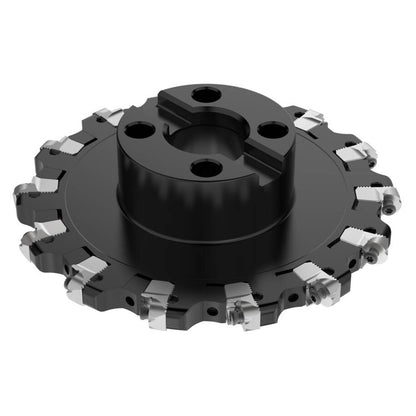

| Product Type | Indexable Slotting Cutter |
