Product Specifications
| Manufacturer Part Number | 02993784 |
| Cutting Diameter (mm) | 100.00mm |
| Connection Bore Diameter (mm) | 27.00mm |
| Contact Surface Diameter Machine Side (mm) | 48.00mm |
| Functional Length (mm) | 50.00mm |
| Keyway Width (mm) | 12.40mm |
| Minimum Cutting Width (mm) | 13.50mm |
| Maximum Depth of Cut (mm) | 8.50mm |
| Depth of Key Way (mm) | 7.00mm |
| Maximum Cutting Depth (mm) | 24.82mm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Rake Radial Angle (Degree) | -10.5 Degree |
| Cutting Direction | Left Hand |
| Maximum Rotational Speed (rpm) | 9200 rpm |
| Cutting Pitch Density | Normal |
| Pocket Seat Code of The Cutter | XNHQ0905 |
| Cutting Item Material Type | Steel |
| Shank Type | Arbor |

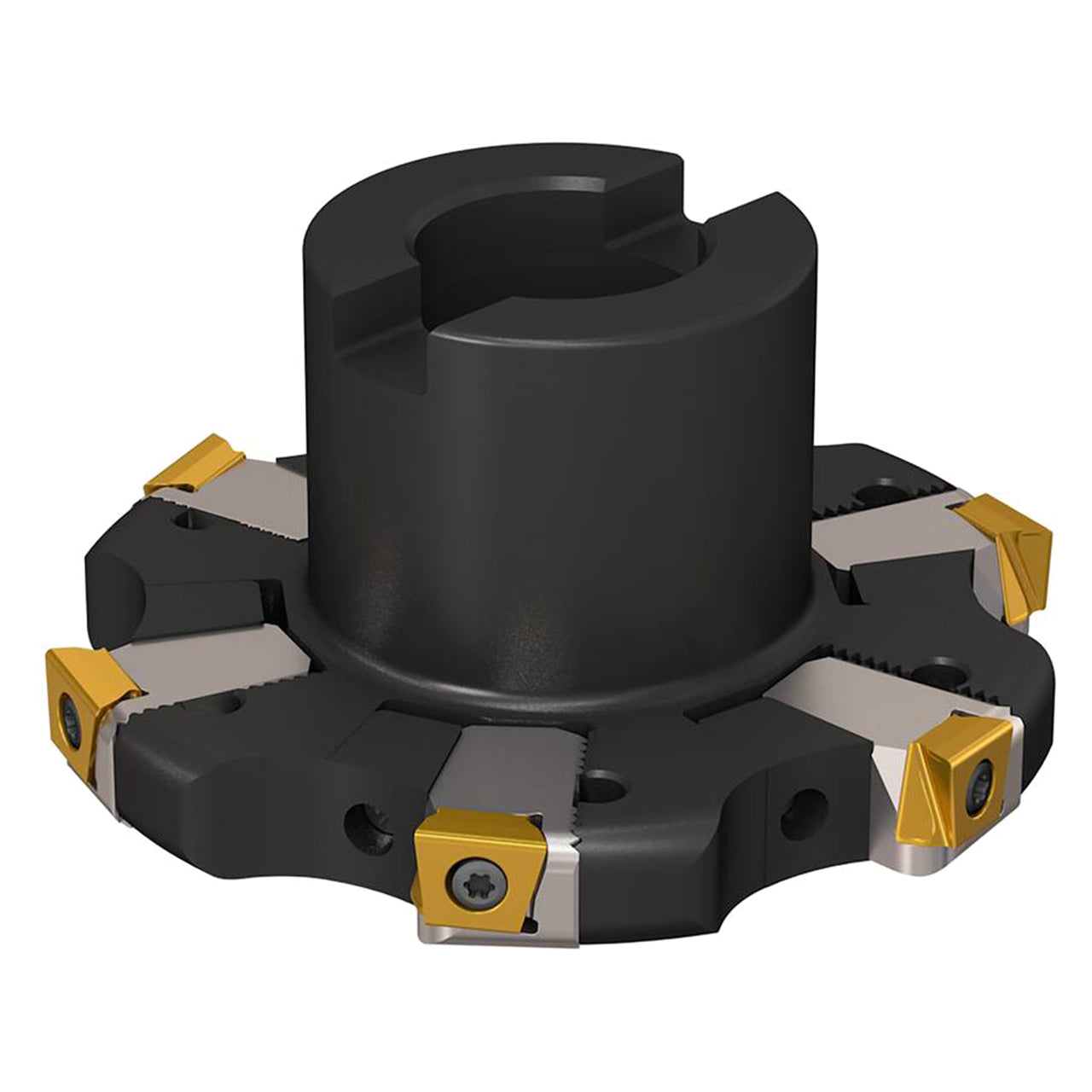

| Product Type | Indexable Slotting Cutter |
