Product Specifications

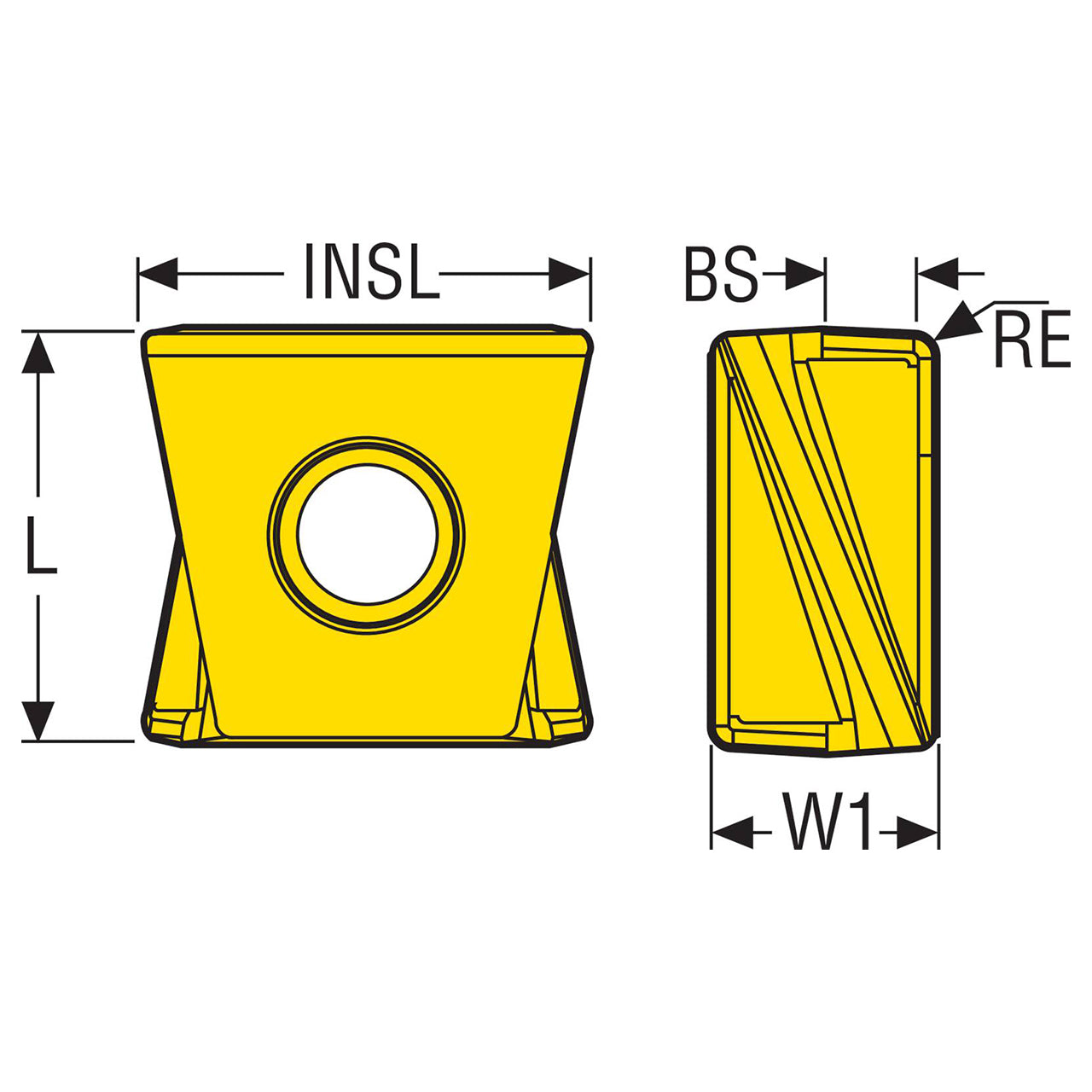

| Manufacturer Part Number | 02989591 |
| Insert Length (Decimal Inch) | 0.461" |
| Insert Length (mm) | 11.70mm |
| Wiper Edge Length (Decimal Inch) | 0.071" |
| Wiper Edge Length (mm) | 1.80mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.349" |
| Cutting Edge Effective Length (mm) | 8.86mm |
| Corner Radius (Decimal Inch) | 0.032" |
| Corner Radius (mm) | 0.80mm |
| Cutting Edge Count | 4 |
| Cutting Geometry Type Technical | M08 |
| Insert Size And Shape | XNHQ0905 |
| Insert Rake Angle (Degree) | 16 Degree |
| Insert Hand | Neutral |
| Material | Carbide |

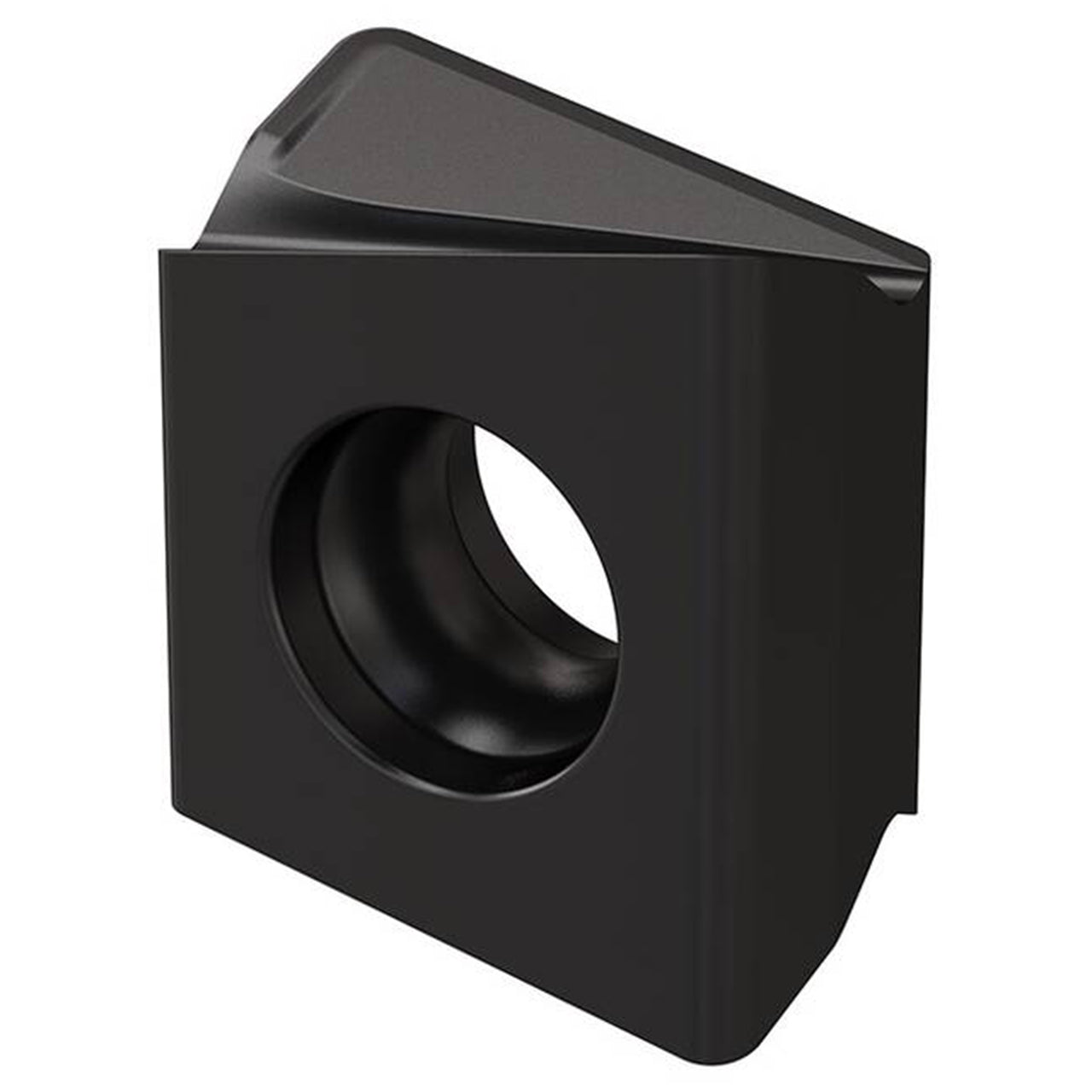

| Product Type | Disc Milling Insert |
