Product Specifications

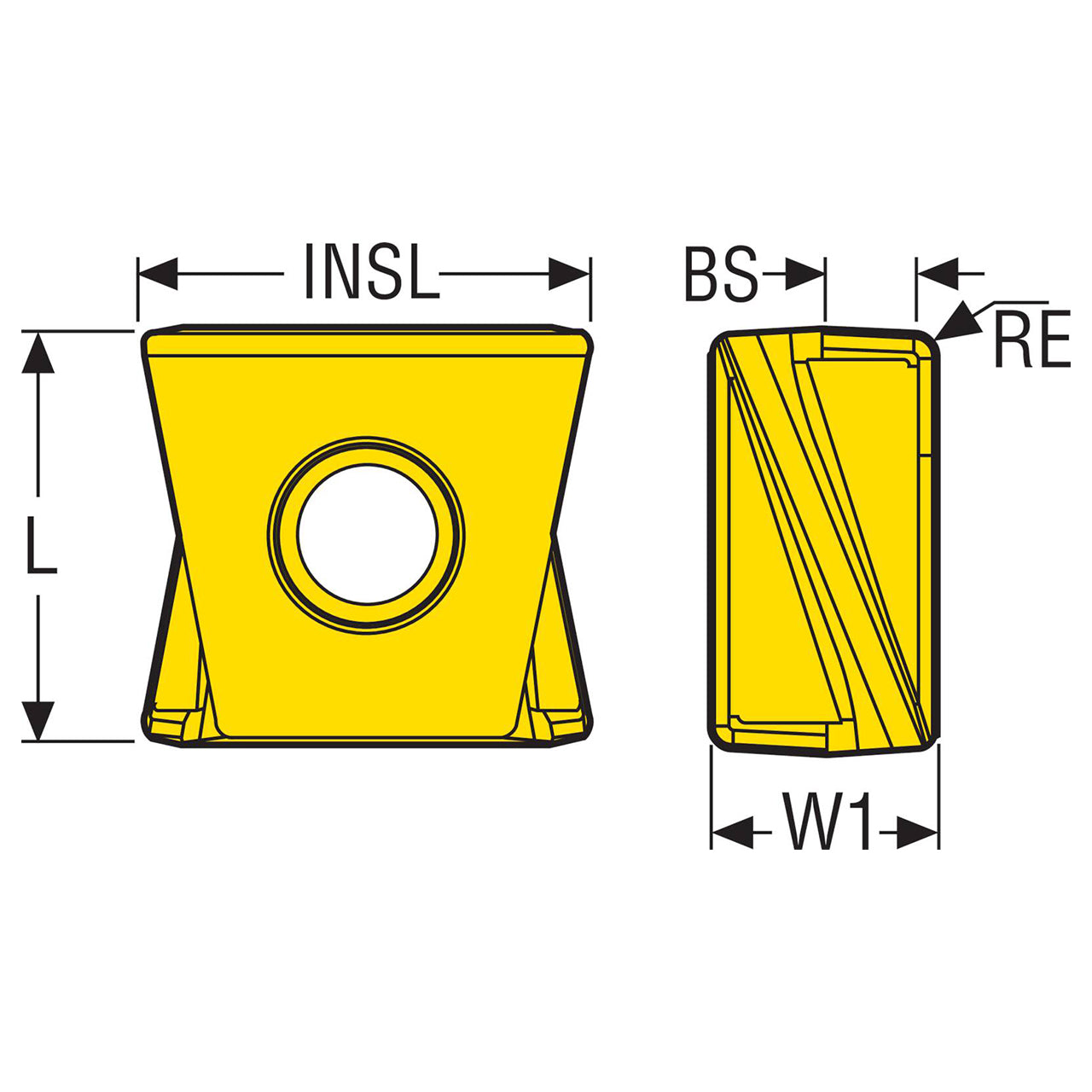

| Manufacturer Part Number | 02989583 |
| Insert Length (Decimal Inch) | 0.501" |
| Insert Length (mm) | 12.72mm |
| Wiper Edge Length (Decimal Inch) | 0.028" |
| Wiper Edge Length (mm) | 0.70mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.431" |
| Cutting Edge Effective Length (mm) | 10.94mm |
| Corner Radius (Decimal Inch) | 0.095" |
| Corner Radius (mm) | 2.40mm |
| Cutting Edge Count | 4 |
| Cutting Geometry Type Technical | M10 |
| Insert Size And Shape | XNHQ1206 |
| Insert Rake Angle (Degree) | 16 Degree |
| Insert Hand | Neutral |
| Material | Carbide |

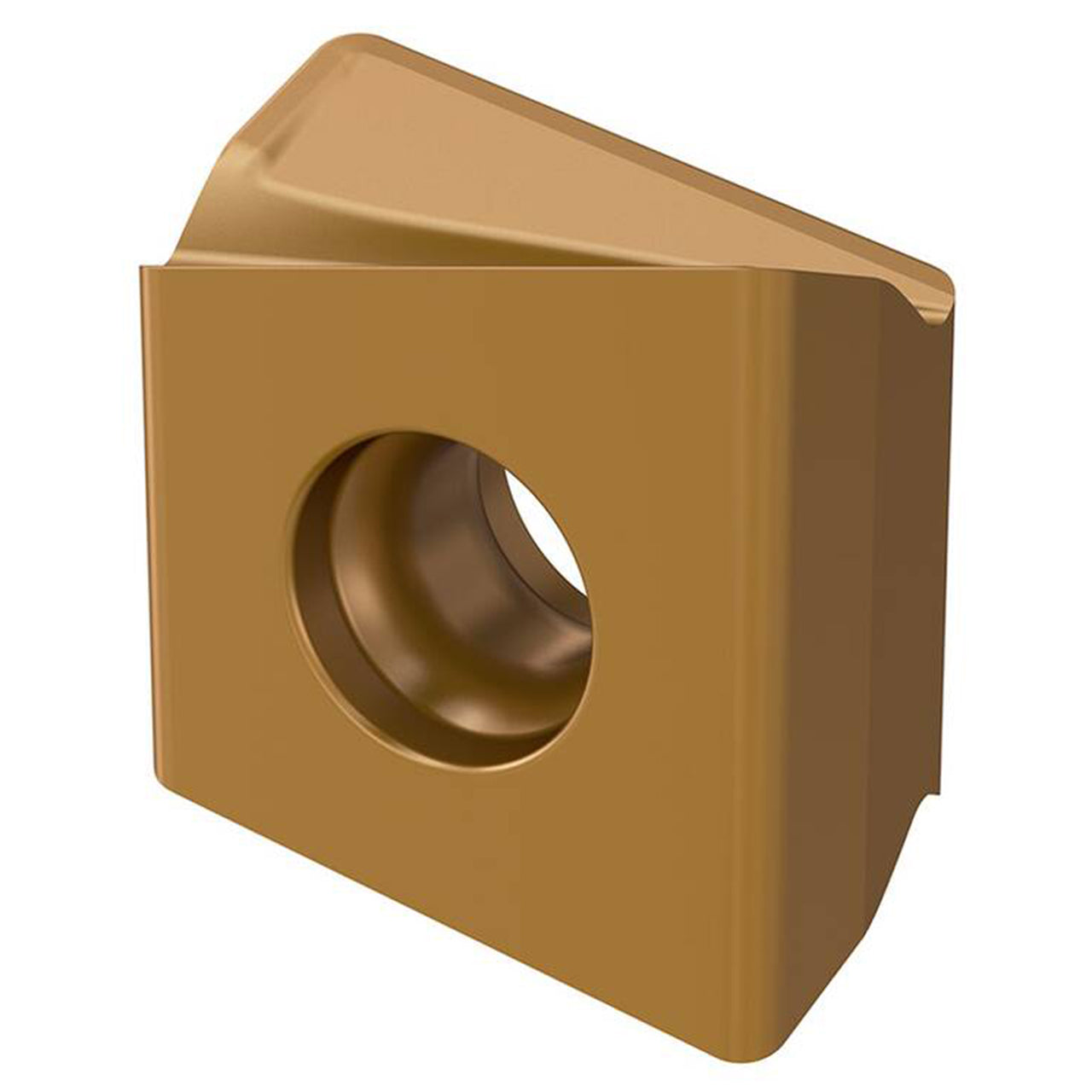

| Product Type | Disc Milling Insert |
