Product Specifications
| Manufacturer Part Number | 02952507 |
| Cutting Diameter (mm) | 5.40mm |
| Contact Surface Diameter Machine Side (mm) | 13.50mm |
| Maximum Cutting Diameter (mm) | 12.00mm |
| Thread Diameter Size | M8 |
| Maximum Helical Interpolation Hole Diameter (mm) | 22.00mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 17.40mm |
| Functional Length (mm) | 20.00mm |
| Overall Length (mm) | 37.75mm |
| Maximum Depth of Cut (mm) | 0.65mm |
| Connection Mounting Torque (Nm) | 25.0 Nm |
| Programming Radius (mm) | 1.50mm |
| Uncut Thickness (mm) | 0.32 |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Close |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -8 Degree |
| Rake Radial Angle (Degree) | -8 Degree |
| Rake Orthogonal Angle (Degree) | -8 Degree |
| Axial Rake Angle (Degree) | 4 Degree |
| Maximum Ramping Angle (Degree) | 3.9 Degree |
| Maximum Rotational Speed (rpm) | 45000 rpm |
| Insert Shape Code | L |
| Shank Type | Combimaster |

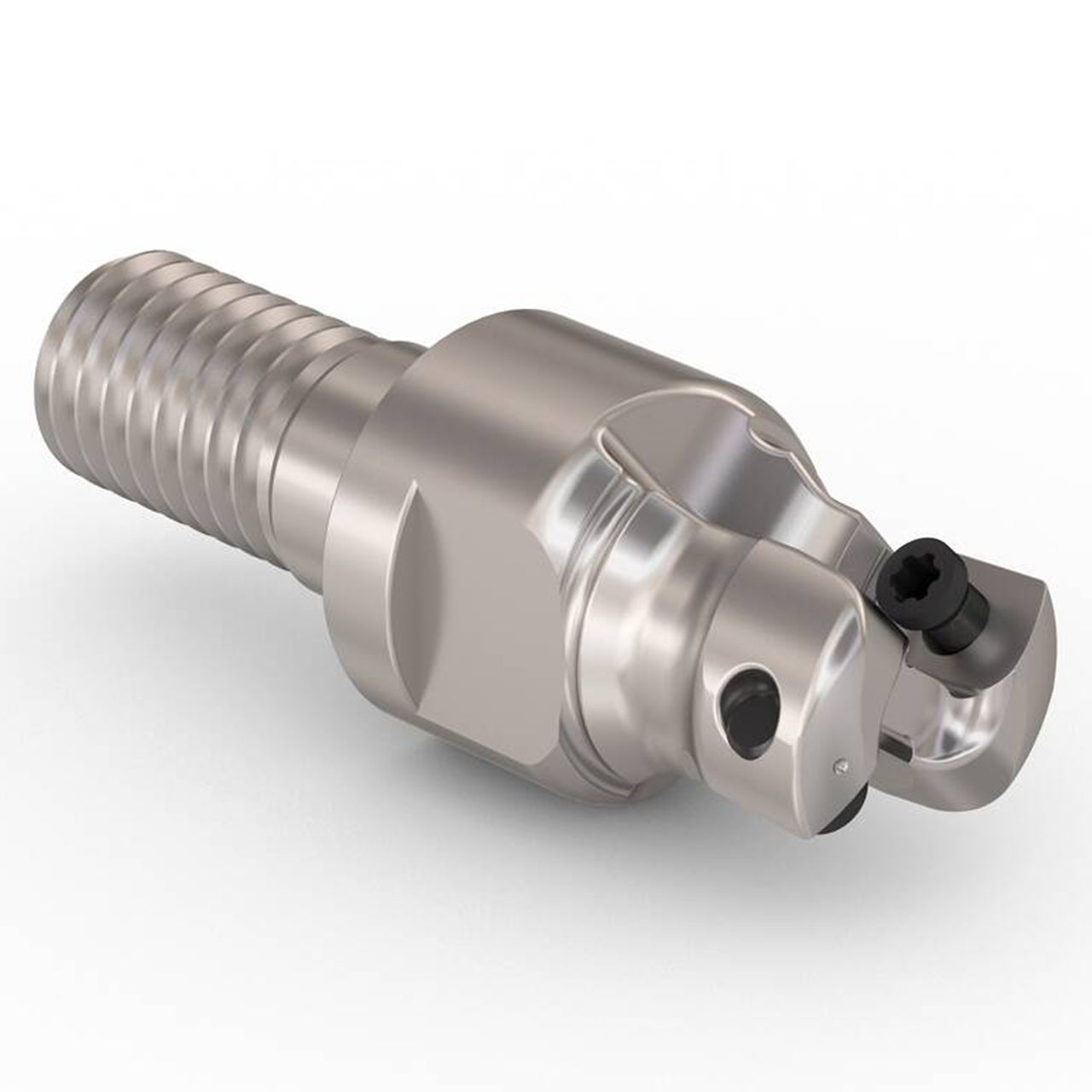

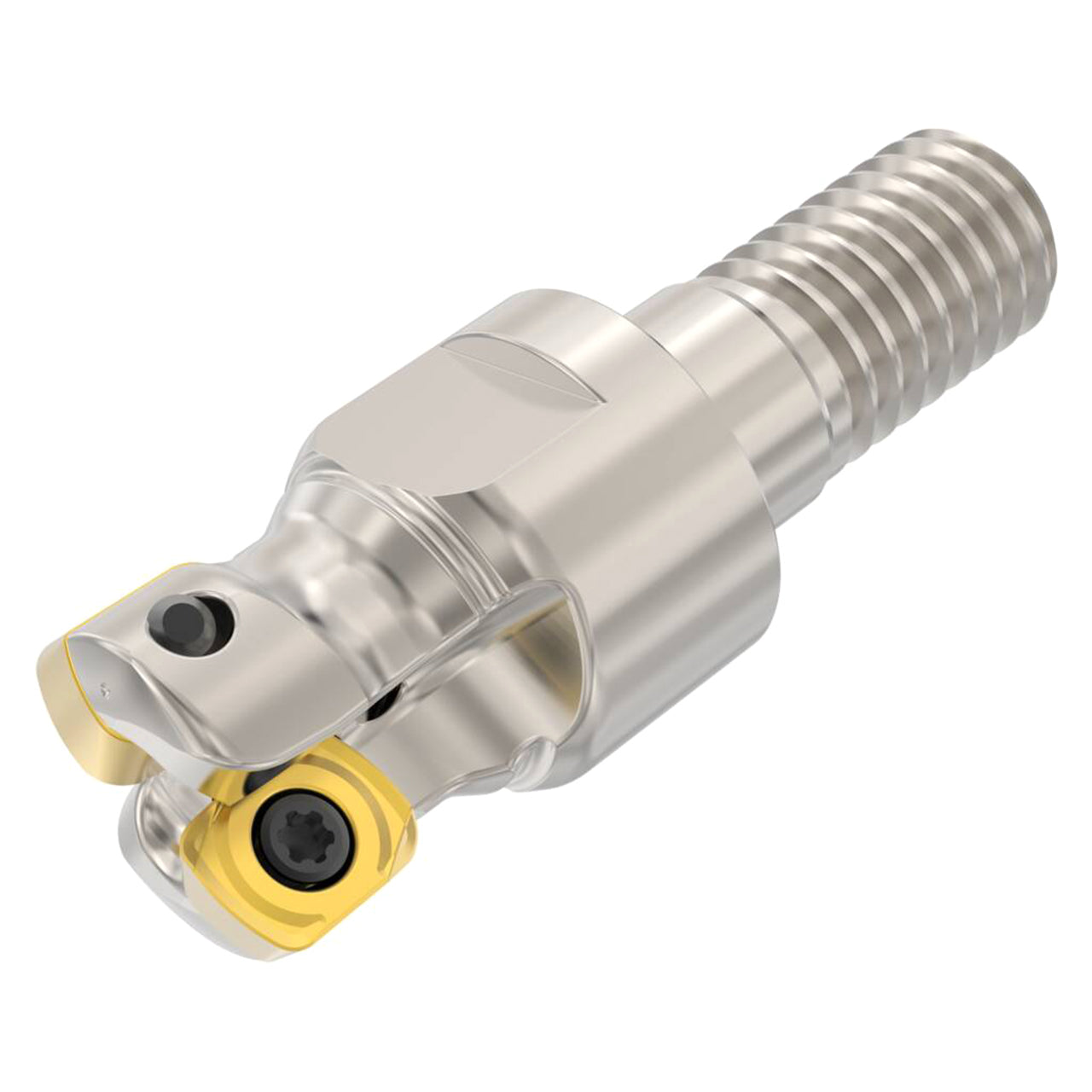

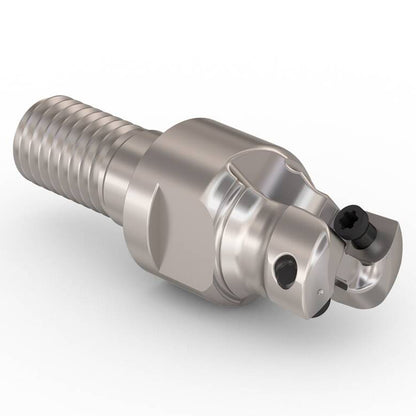

| Product Type | Indexable High-Feed End Mill |
