Product Specifications
| Manufacturer Part Number | 02949652 |
| Cutting Diameter (Decimal Inch) | 5.528" |
| Cutting Diameter (mm) | 140.40mm |
| Connection Bore Diameter (Decimal Inch) | 2.000" |
| Connection Bore Diameter (mm) | 50.80mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 4.331" |
| Contact Surface Diameter Machine Side (mm) | 110.00mm |
| Maximum Cutting Diameter (Decimal Inch) | 6.000" |
| Maximum Cutting Diameter (mm) | 152.40mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 11.921" |
| Maximum Helical Interpolation Hole Diameter (mm) | 302.80mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 11.528" |
| Minimum Helical Interpolation Hole Diameter (mm) | 292.80mm |
| Functional Length (Decimal Inch) | 2.000" |
| Functional Length (mm) | 50.80mm |
| Maximum Depth of Cut (mm) | 6.00mm |
| Maximum Depth of Cut (Decimal Inch) | 0.236" |
| Depth of Key Way (Decimal Inch) | 0.438" |
| Depth of Key Way (mm) | 11.13mm |
| Keyway Width (Decimal Inch) | 0.750" |
| Keyway Width (mm) | 19.05mm |
| Cutting Pitch Density | Normal |
| Rake Radial Angle (Degree) | -3 Degree |
| Rake Radial Angle (Degree) | -3 Degree |
| Rake Orthogonal Angle (Degree) | -3 Degree |
| Axial Rake Angle (Degree) | 4 Degree |
| Maximum Ramping Angle (Degree) | 1.2 Degree |
| Maximum Rotational Speed (rpm) | 7600 rpm |
| Insert Shape Code | R |
| Shank Type | Arbor |

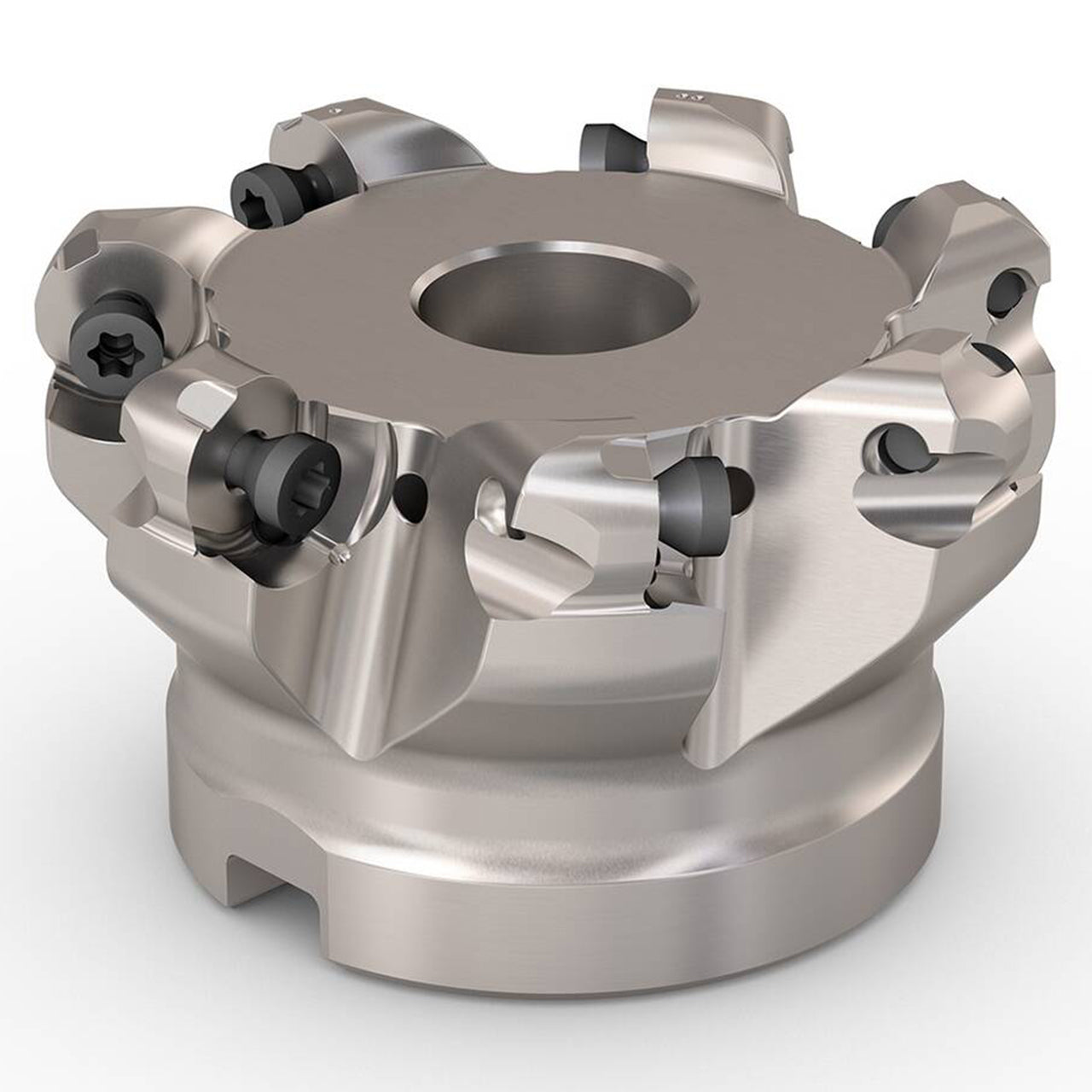

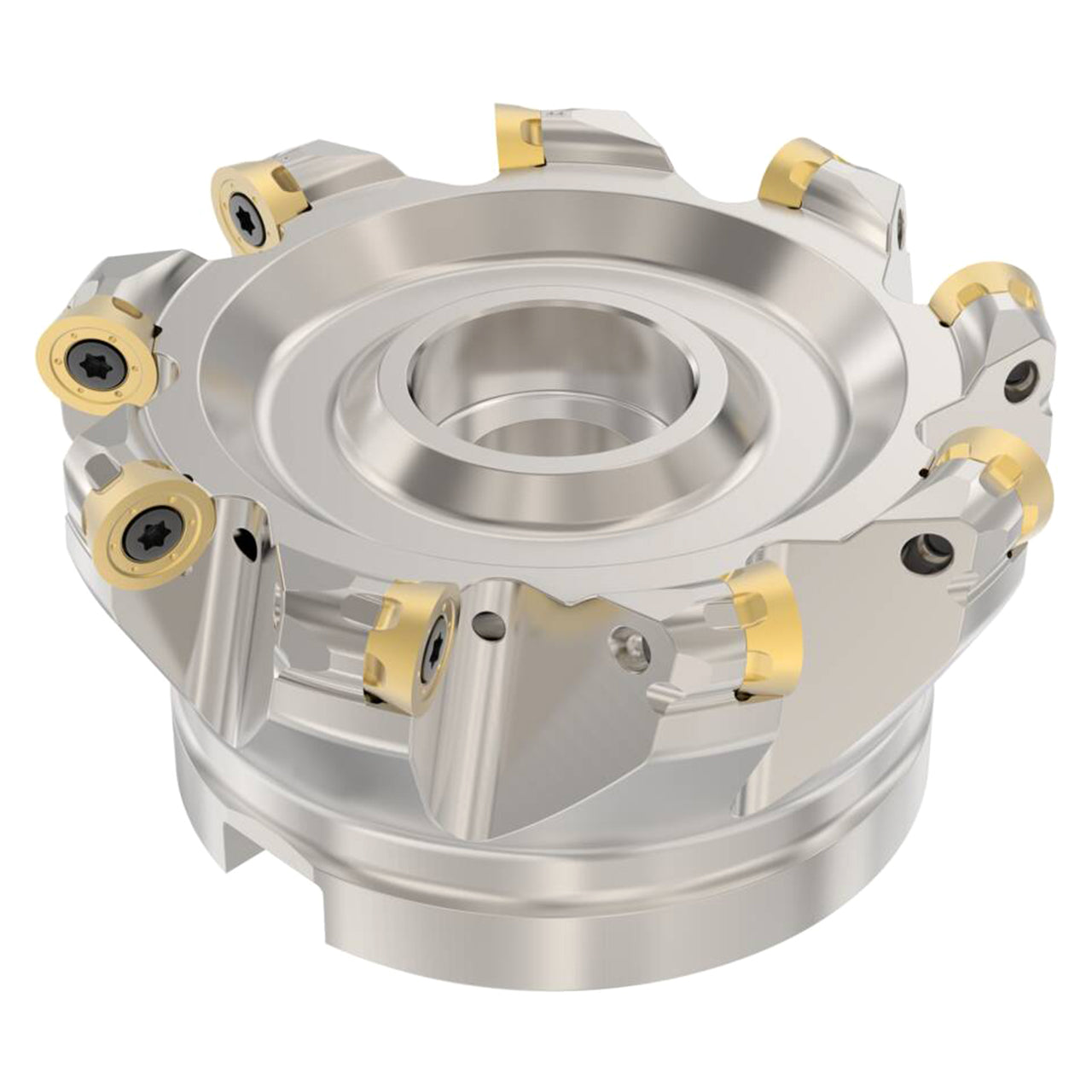

| Product Type | Indexable Copy End Mill |
