Product Specifications
| Manufacturer Part Number | 02949638 |
| Cutting Diameter (Decimal Inch) | 0.528" |
| Cutting Diameter (mm) | 13.40mm |
| Connection Diameter Machine Side (Decimal Inch) | 1.000" |
| Connection Diameter Machine Side (mm) | 25.40mm |
| Maximum Cutting Diameter (Decimal Inch) | 1.000" |
| Maximum Cutting Diameter (mm) | 25.40mm |
| Shank Diameter (Decimal Inch) | 1.000" |
| Shank Diameter (mm) | 25.40mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 1.921" |
| Maximum Helical Interpolation Hole Diameter (mm) | 48.80mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 1.528" |
| Minimum Helical Interpolation Hole Diameter (mm) | 38.80mm |
| Protruding Length (Decimal Inch) | 4.295" |
| Protruding Length (mm) | 109.10mm |
| Shank Length (Decimal Inch) | 4.008" |
| Shank Length (mm) | 101.80mm |
| Overall Length (Decimal Inch) | 6.500" |
| Overall Length (mm) | 165.10mm |
| Maximum Depth of Cut (mm) | 6.00mm |
| Maximum Depth of Cut (Decimal Inch) | 0.236" |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -3 Degree |
| Rake Radial Angle (Degree) | -3 Degree |
| Rake Orthogonal Angle (Degree) | -3 Degree |
| Axial Rake Angle (Degree) | -4 Degree |
| Maximum Ramping Angle (Degree) | 12 Degree |
| Maximum Rotational Speed (rpm) | 17700 rpm |
| Insert Shape Code | R |
| Shank Type | Cylindrical |

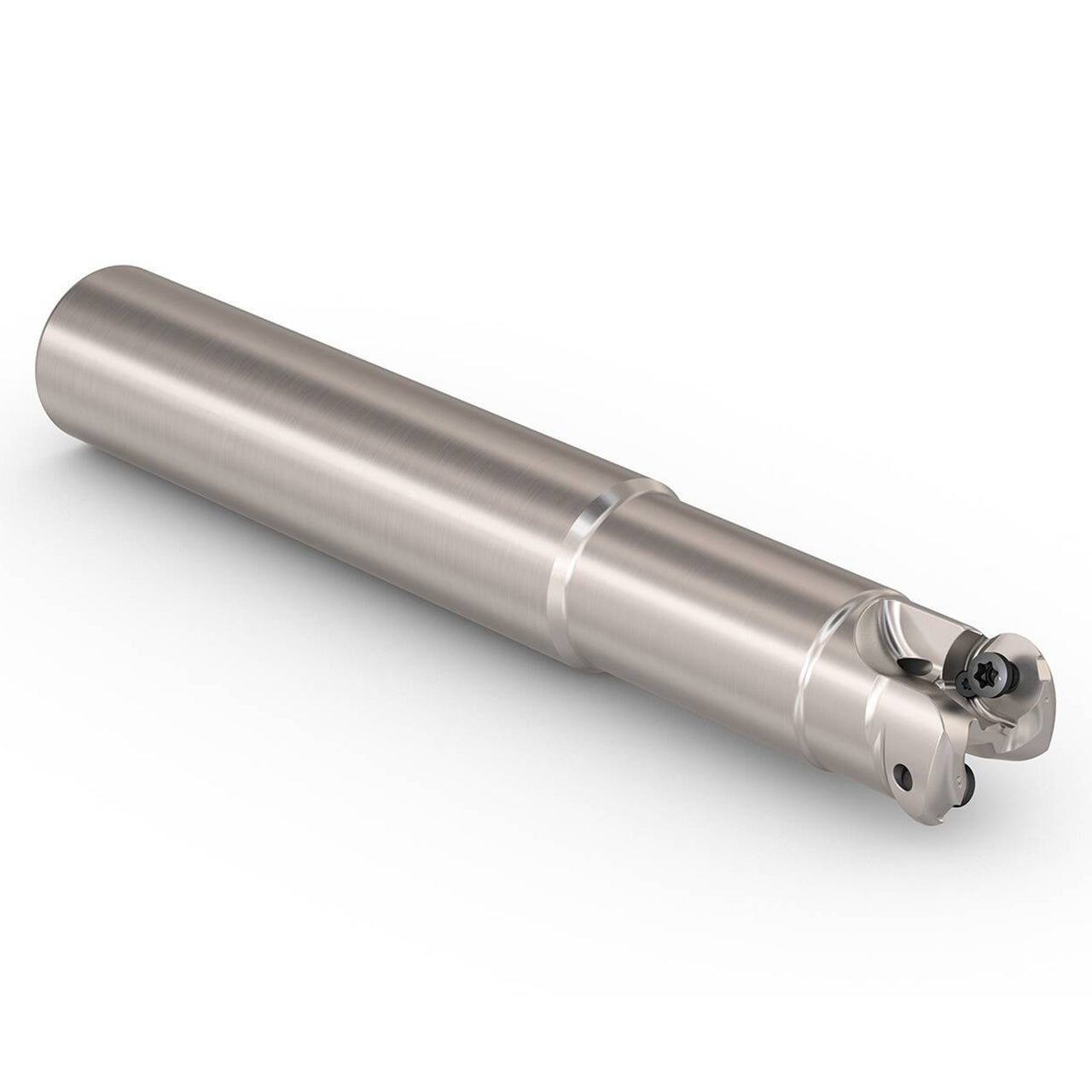

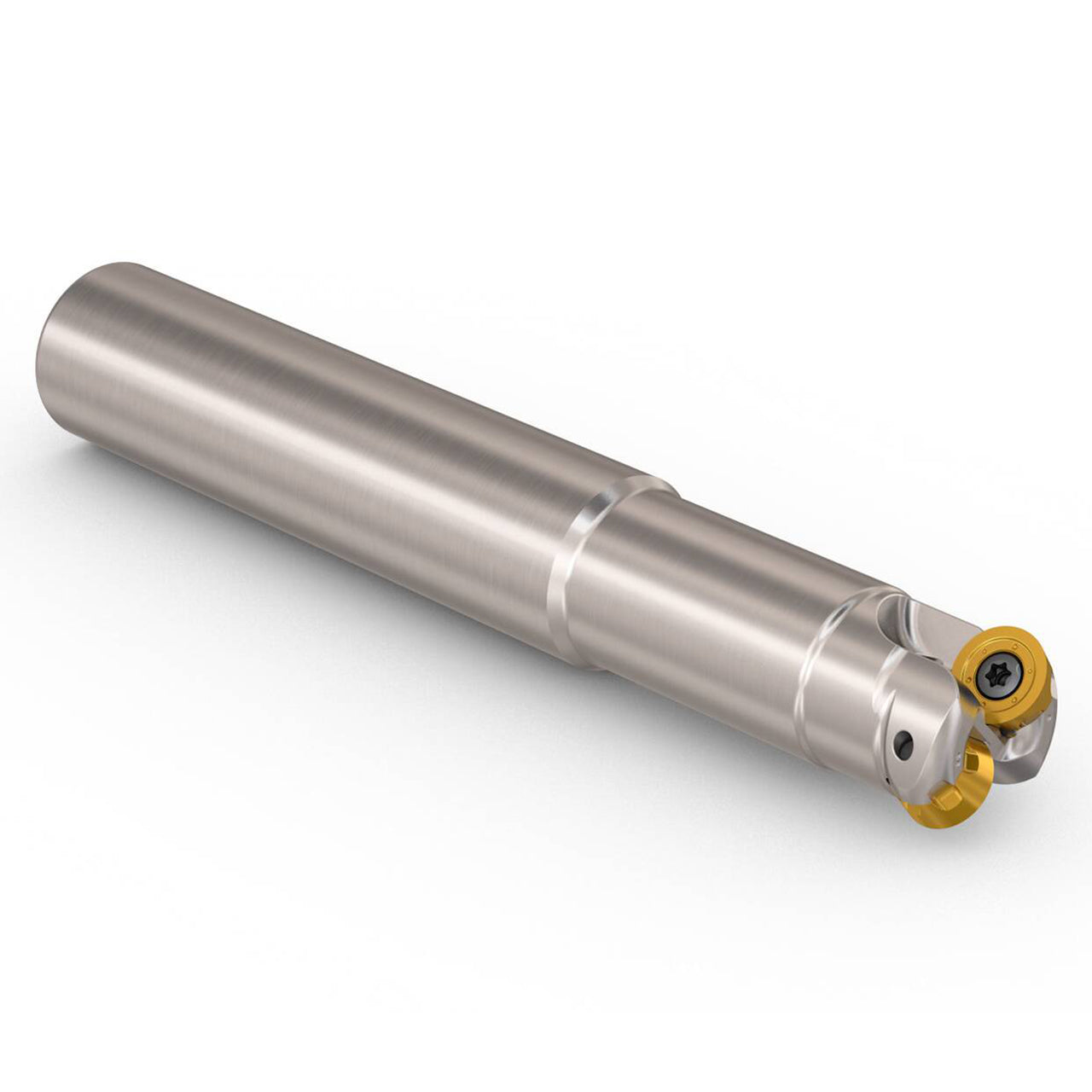

| Product Type | Indexable Copy End Mill |
