Product Specifications
| Manufacturer Part Number | 02941527 |
| Cutting Diameter (Decimal Inch) | 0.996" |
| Cutting Diameter (mm) | 25.30mm |
| Connection Diameter Machine Side (Decimal Inch) | 1.000" |
| Connection Diameter Machine Side (mm) | 25.40mm |
| Shank Diameter (Decimal Inch) | 1.000" |
| Shank Diameter (mm) | 25.40mm |
| Functional Length (Decimal Inch) | 3.347" |
| Functional Length (mm) | 85.00mm |
| Protruding Length (Decimal Inch) | 1.772" |
| Protruding Length (mm) | 45.00mm |
| Shank Length (Decimal Inch) | 2.382" |
| Shank Length (mm) | 60.50mm |
| Overall Length (Decimal Inch) | 4.488" |
| Overall Length (mm) | 114.00mm |
| Maximum Depth of Cut (mm) | 43.00mm |
| Maximum Depth of Cut (Decimal Inch) | 1.693" |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Close |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Flute Helix Hand | Right Hand |
| Rake Radial Angle (Degree) | -26 Degree |
| Rake Radial Angle (Degree) | -26 Degree |
| Rake Orthogonal Angle (Degree) | -26 Degree |
| Axial Rake Angle (Degree) | 4 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Number of Flute | 2 |
| Maximum Rotational Speed (rpm) | 20800 rpm |
| Insert Shape Code | L |
| Shank Type | Weldon |

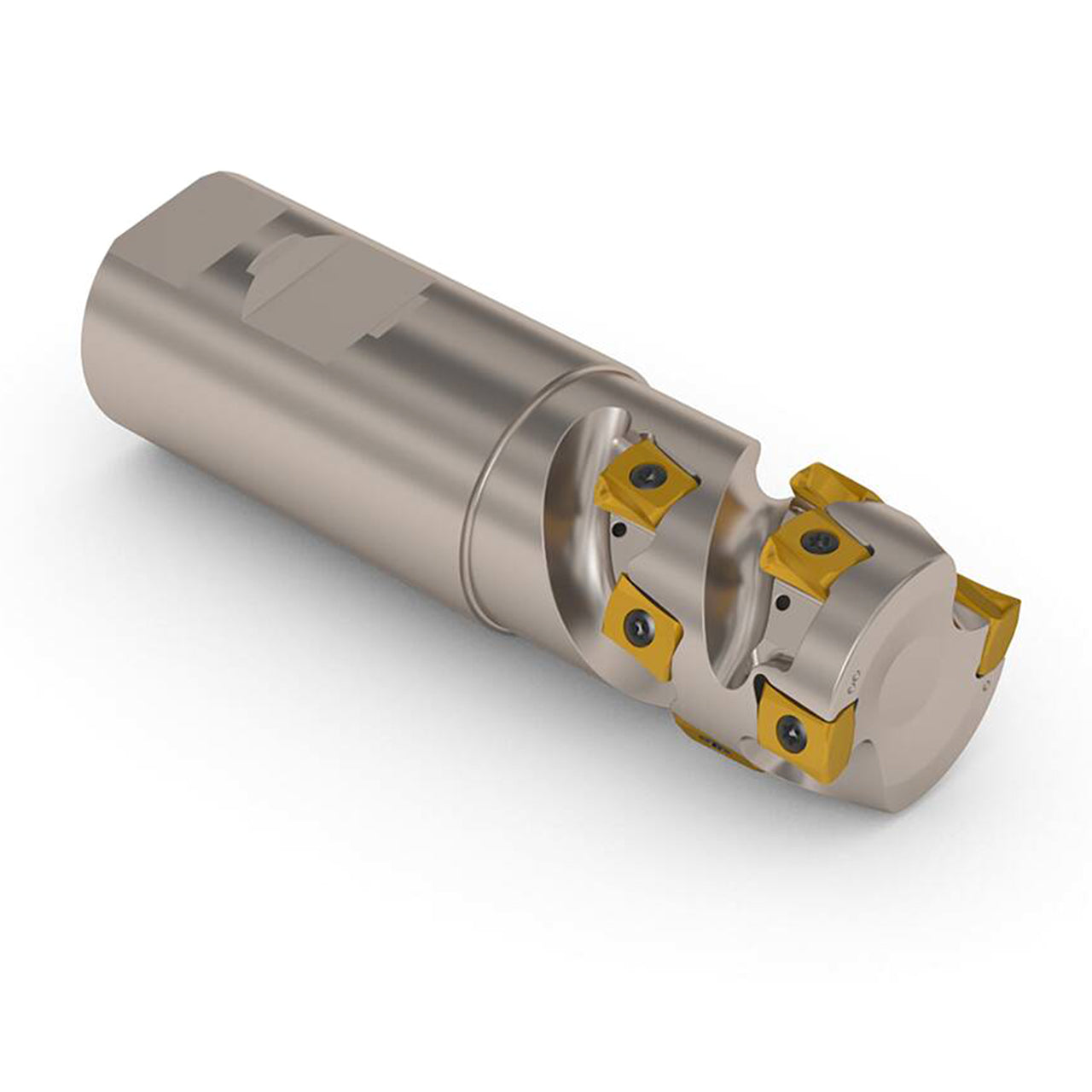

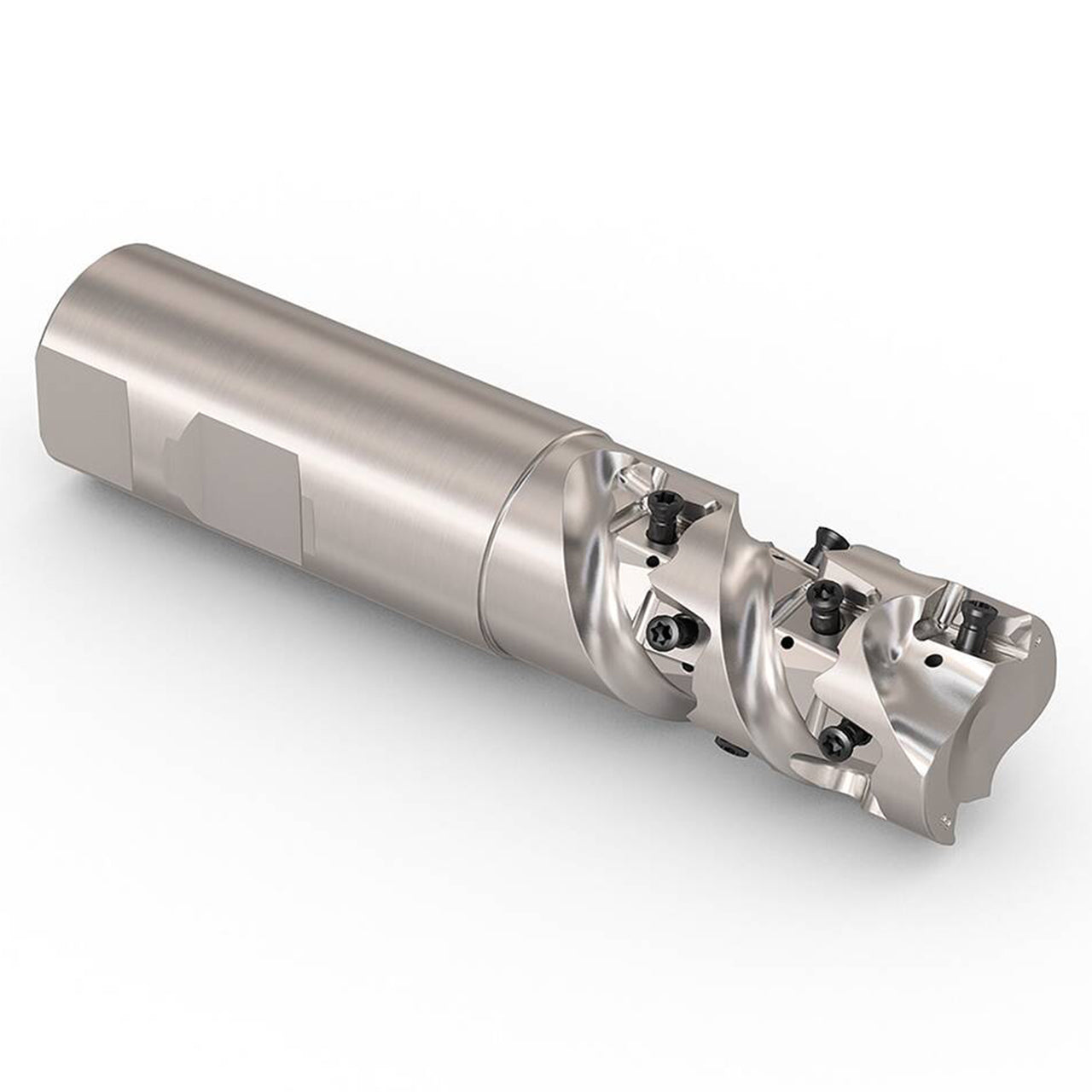

| Product Type | Indexable Square Shoulder Mill |
