Product Specifications

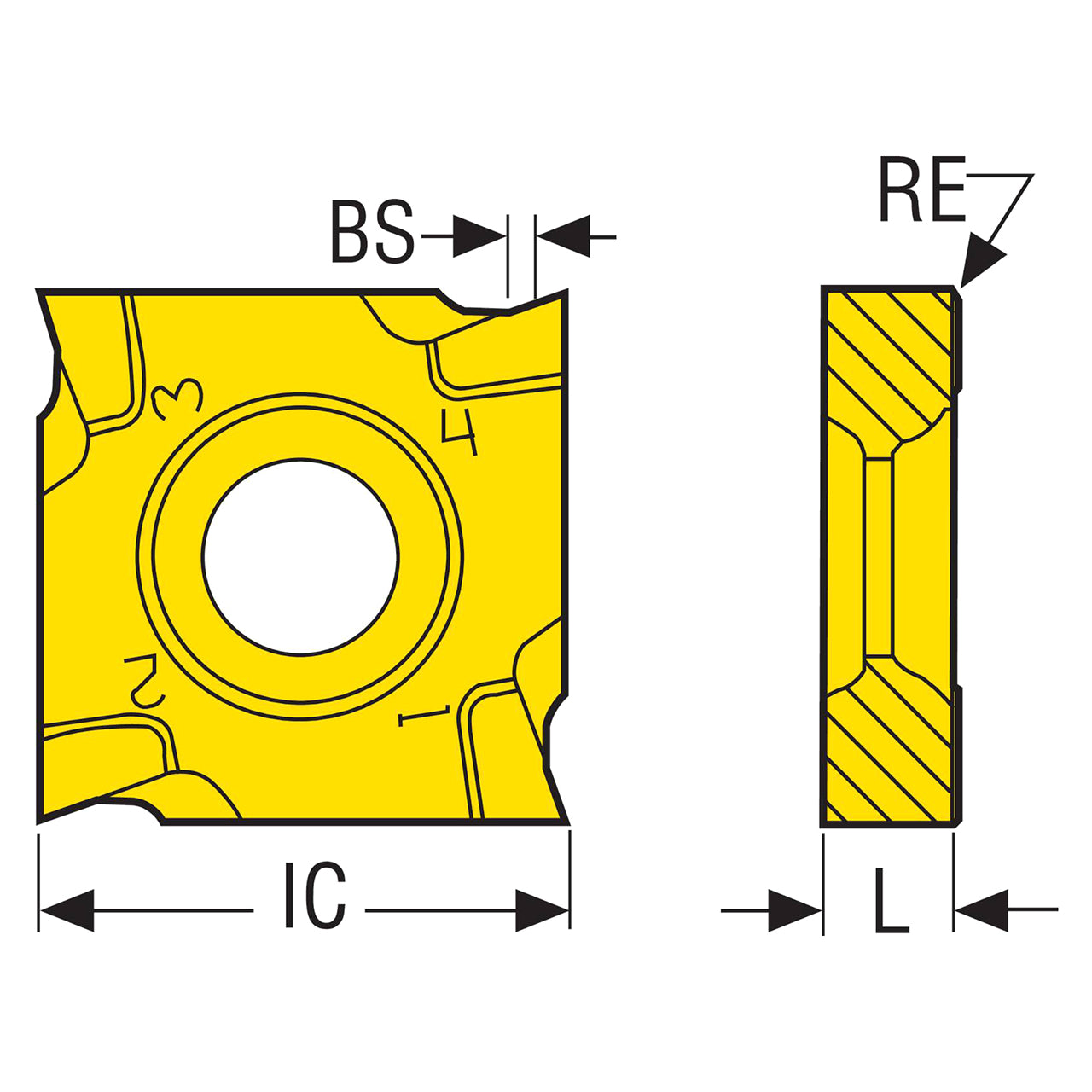

| Manufacturer Part Number | 02939470 |
| Inscribed Circle Diameter (Decimal Inch) | 0.433" |
| Inscribed Circle Diameter (mm) | 11.00mm |
| Corner Radius (Decimal Inch) | 0.032" |
| Corner Radius (mm) | 0.80mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.083" |
| Cutting Edge Effective Length (mm) | 2.10mm |
| Wiper Edge Length (Decimal Inch) | 0.008" |
| Wiper Edge Length (mm) | 0.20mm |
| Theoretical Cutting Edge Length (Decimal Inch) | 0.091" |
| Theoretical Cutting Edge Length (mm) | 2.30mm |
| Cutting Edge Count | 4 |
| Cutting Geometry Type | M |
| Cutting Geometry Type Technical | M07 |
| Insert Size And Shape | SNHQ1102 |
| Insert Rake Angle (Degree) | 20 Degree |
| Material | Carbide |
| Insert Hand | Left Hand |

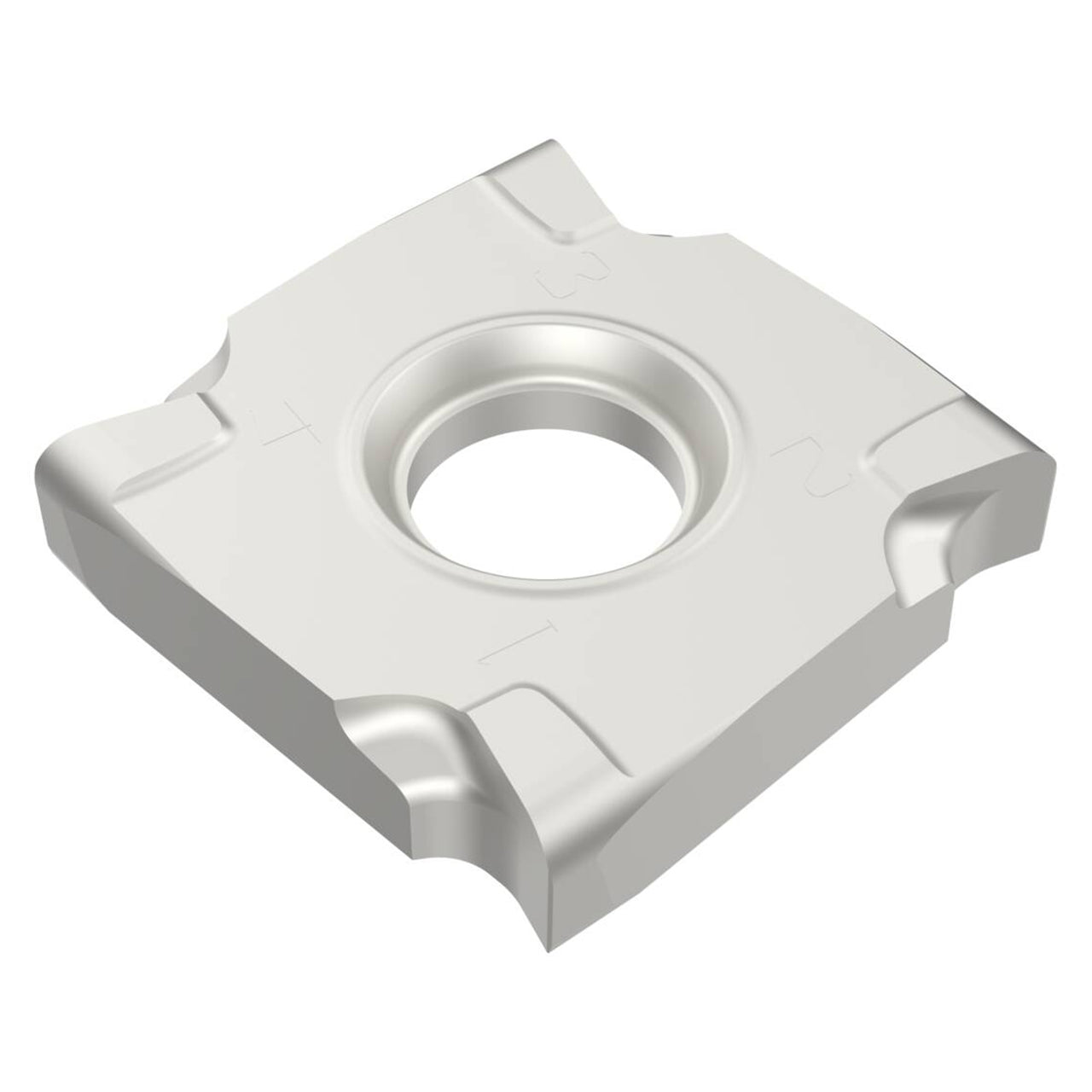

| Product Type | Milling Insert |
