Product Specifications

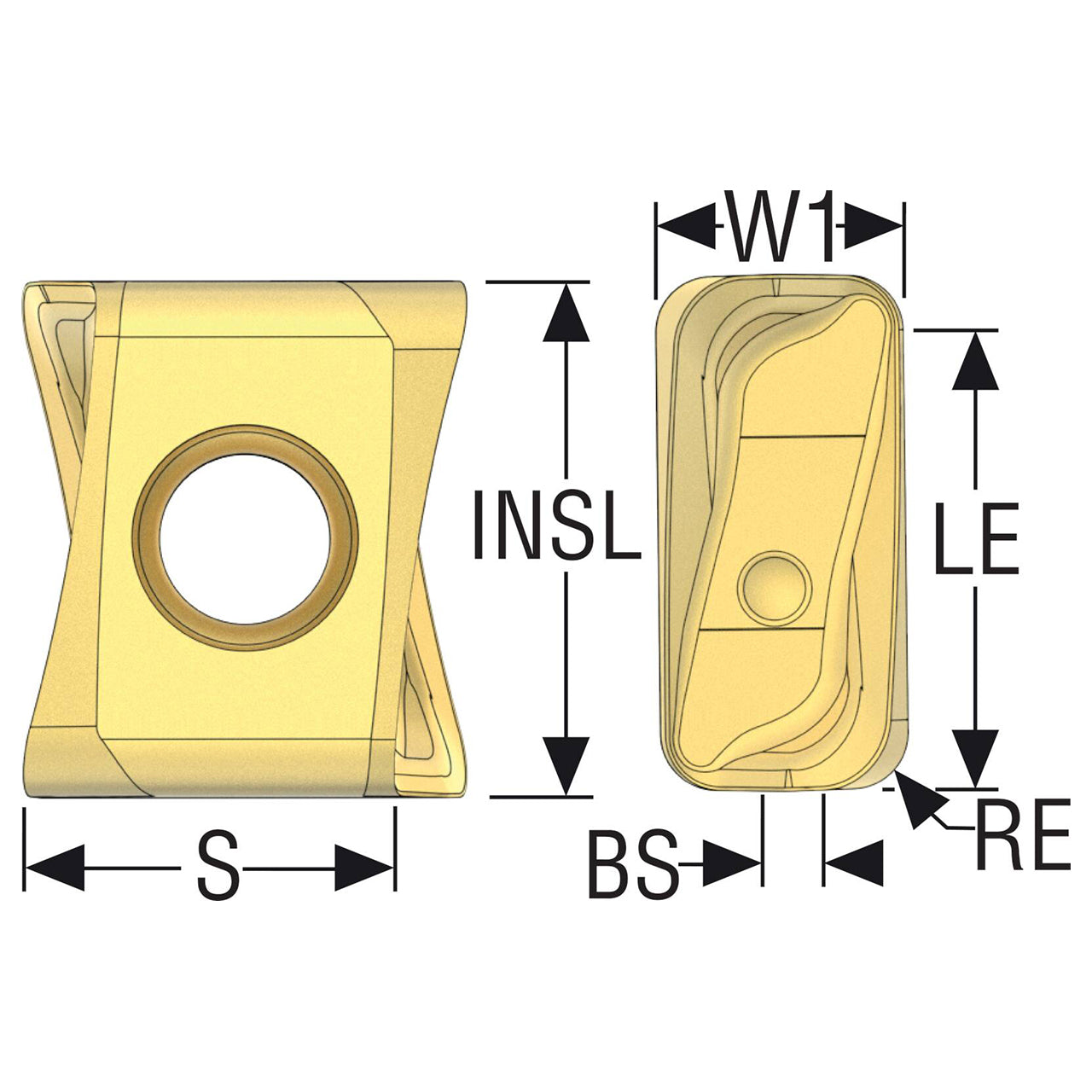

| Manufacturer Part Number | 02903474 |
| Insert Length (Decimal Inch) | 0.366" |
| Insert Length (mm) | 9.30mm |
| Wiper Edge Length (Decimal Inch) | 0.036" |
| Wiper Edge Length (mm) | 0.92mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.327" |
| Cutting Edge Effective Length (mm) | 8.30mm |
| Corner Radius (Decimal Inch) | 0.032" |
| Corner Radius (mm) | 0.80mm |
| Insert Thickness (Decimal Inch) | 0.260" |
| Insert Thickness (mm) | 6.60mm |
| Cutting Edge Count | 4 |
| Cutting Geometry Type | MD |
| Cutting Geometry Type Technical | MD08 |
| Pocket Seat Code of The Cutter | LO.X0804 |
| Insert Size And Shape | LOEX0804 |
| Insert Rake Angle (Degree) | 29.5 Degree |
| Insert Hand | Right Hand |
| Material | Carbide |
| Product Type | Milling Insert |
