Product Specifications
| Manufacturer Part Number | 02902843 |
| Minimum Cutting Diameter Internal (Decimal Inch) | 3.937" |
| Minimum Cutting Diameter Internal (mm) | 100.00mm |
| Minimum Cutting Diameter Internal 3 (Decimal Inch) | 5.906" |
| Minimum Cutting Diameter Internal 3 (mm) | 150.00mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.969" |
| Contact Surface Diameter Machine Side (mm) | 50.00mm |
| Functional Length (Decimal Inch) | 2.362" |
| Functional Length (mm) | 60.00mm |
| Maximum Radial Cutting Depth (Decimal Inch) | 0.098" |
| Maximum Radial Cutting Depth (mm) | 2.50mm |
| Maximum Cutting Depth (Decimal Inch) | 0.087" |
| Maximum Cutting Depth (mm) | 2.20mm |
| Functional Width (Decimal Inch) | 1.378" |
| Functional Width (mm) | 35.00mm |
| Coolant Entry Style Code | 1 |
| Coolant Supply Property | 1 |
| Rake Radial Angle (Degree) | -6 Degree |
| Rake Radial Angle (Degree) | -6 Degree |
| Rake Orthogonal Angle (Degree) | -6 Degree |
| Axial Rake Angle (Degree) | -6 Degree |
| Cutting Direction | Right Hand |
| Insert Clamping System | P |
| Tool Cutting Edge Angle (Degree) | 95 Degree |
| Tool Cutting Edge Angle Code | L |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 95 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 95 Degree |
| Inclination Angle (Degree) | -6 Degree |
| Maximum Ramping Angle (Degree) | 40 Degree |
| Insert Shape Code | C |
| Shank Type | Seco-Capto |

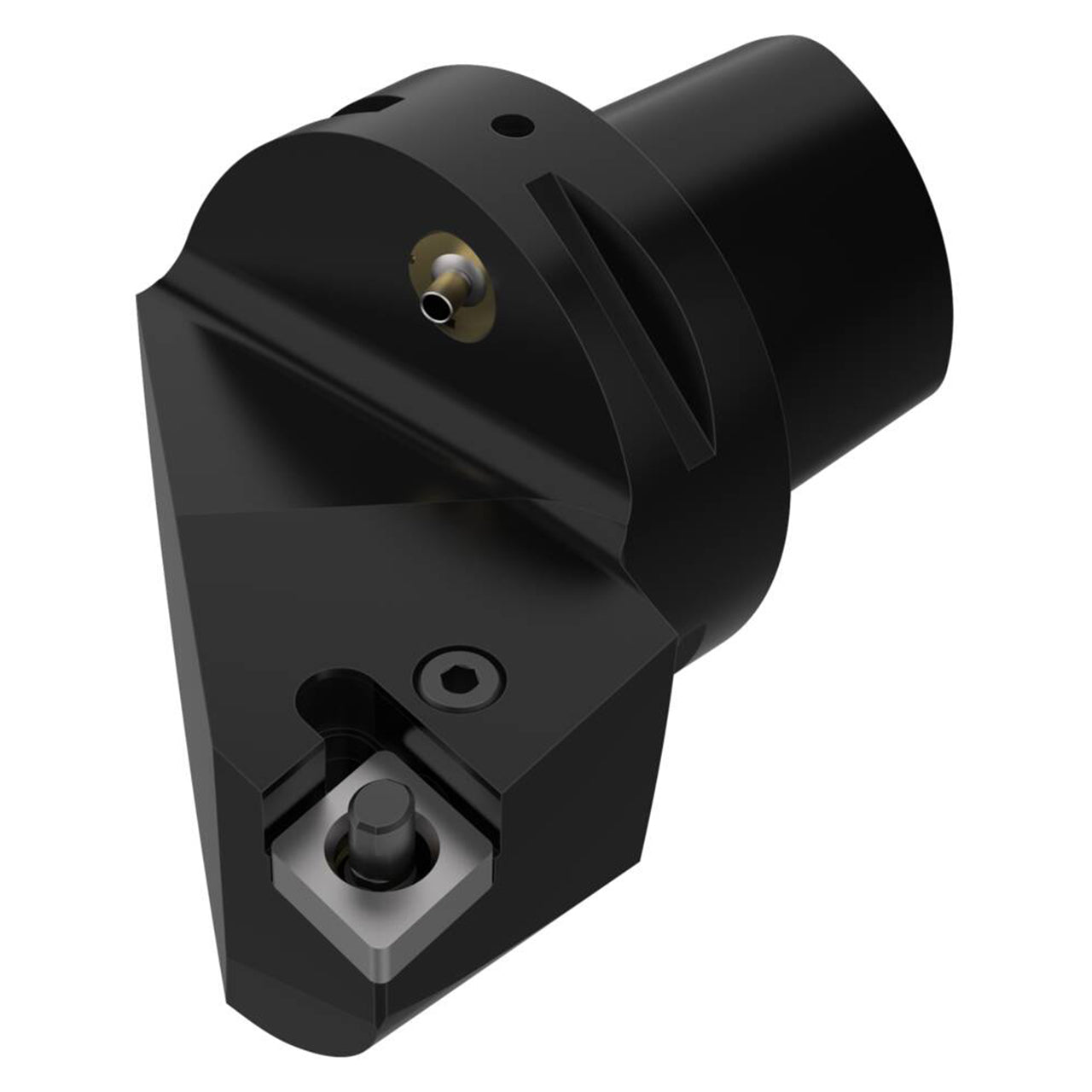

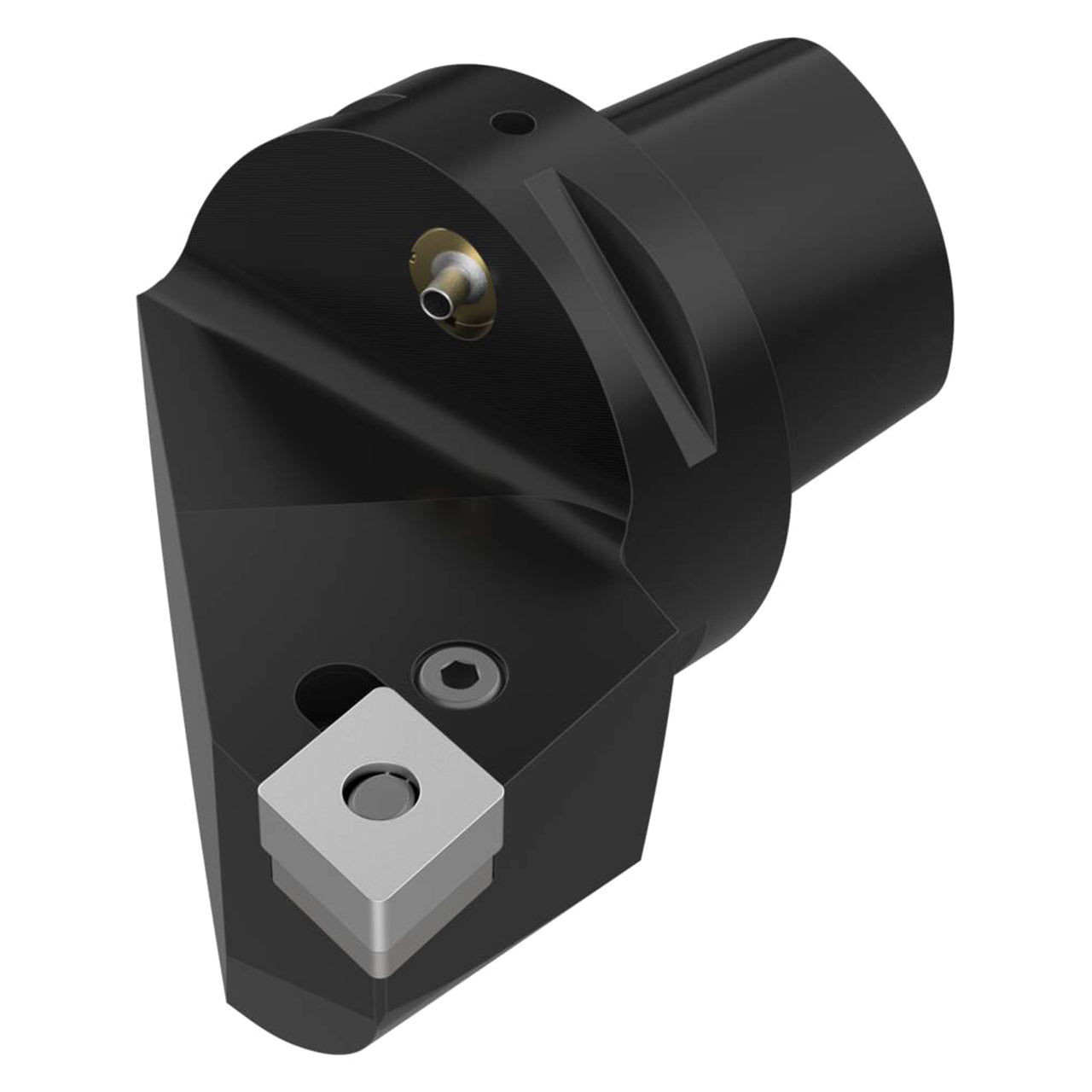

| Product Type | Modular Turning Head |
