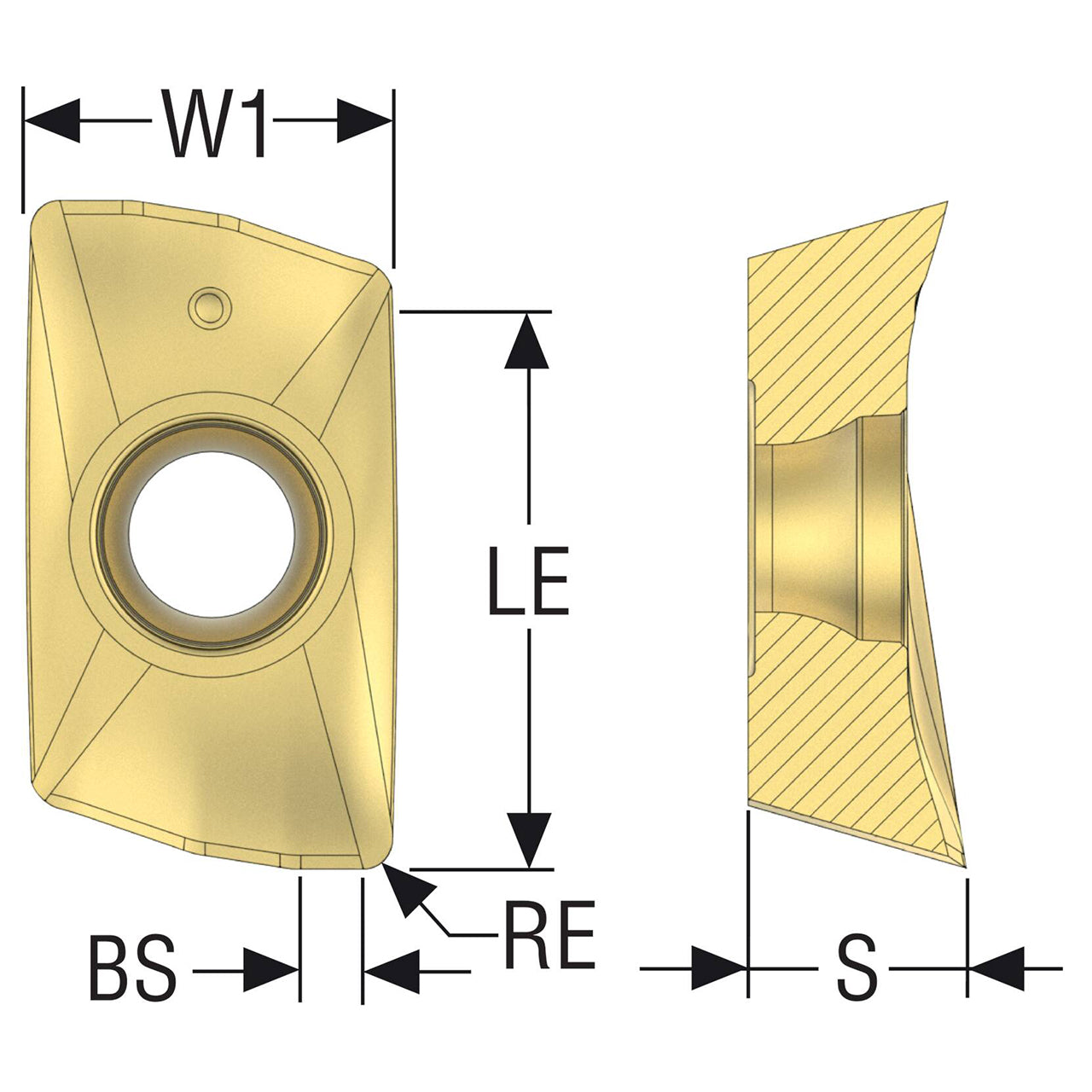

Product Specifications
| Manufacturer Part Number | 02899475 |
| Fixing Hole Diameter (Decimal Inch) | 0.154" |
| Fixing Hole Diameter (mm) | 3.90mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.472" |
| Cutting Edge Effective Length (mm) | 12.00mm |
| Corner Radius (Decimal Inch) | 0.158" |
| Corner Radius (mm) | 4.00mm |
| Insert Thickness (Decimal Inch) | 0.198" |
| Insert Thickness (mm) | 5.03mm |
| Clearance Angle Major (Degree) | 15 Degree |
| Cutting Edge Count | 2 |
| Cutting Geometry Type Technical | M07 |
| Pocket Seat Code of The Cutter | XO.X1204 |
| Insert Size And Shape | XOEX1204 |
| Insert Rake Angle (Degree) | 23.7 Degree |
| Insert Hand | Right Hand |
| Material | Carbide |

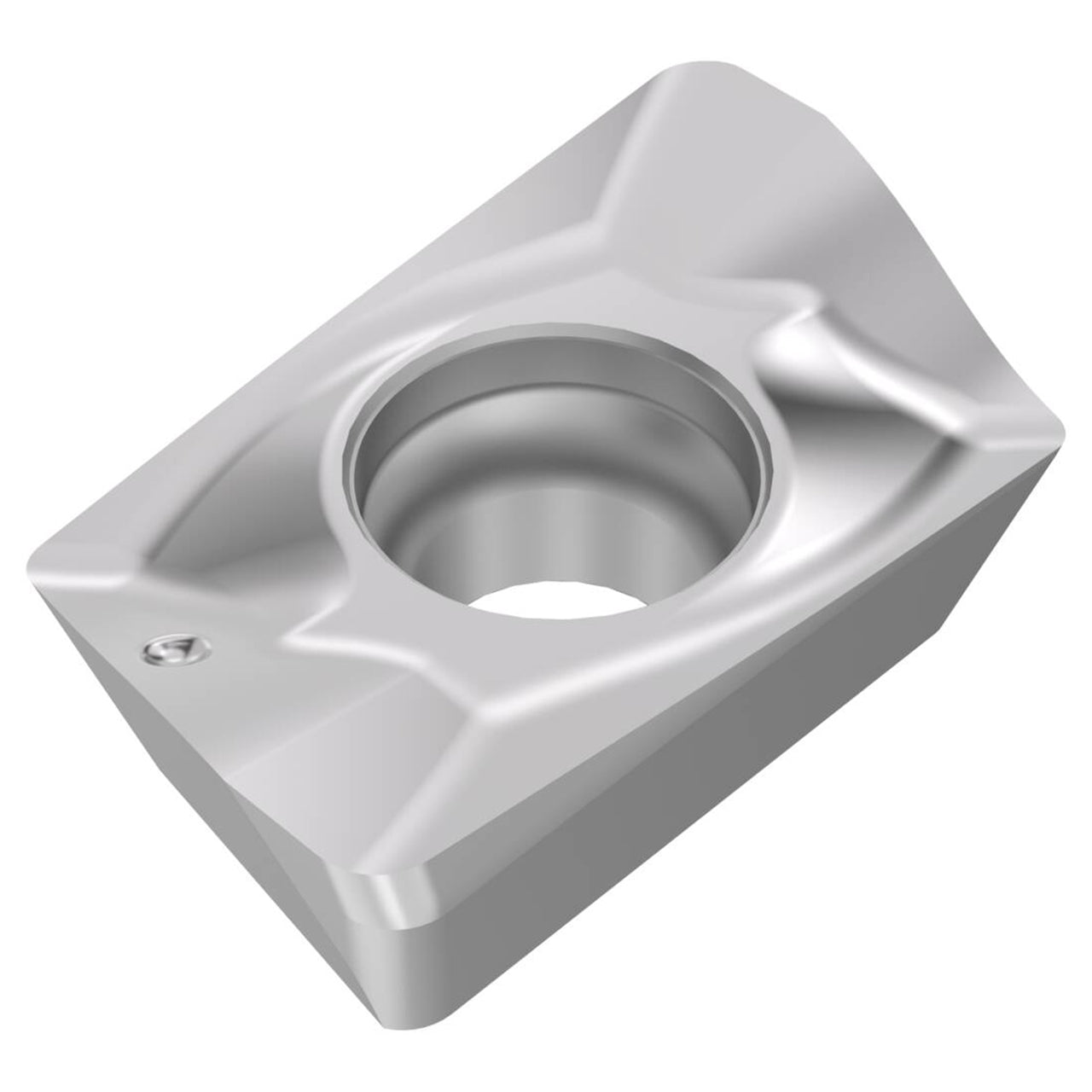

| Product Type | Square Shoulder Milling Insert |
