Product Specifications
| Manufacturer Part Number | 02899117 |
| Cutting Diameter (Decimal Inch) | 0.563" |
| Cutting Diameter (mm) | 14.29mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.630" |
| Connection Diameter Machine Side (mm) | 16.00mm |
| Shank Diameter (Decimal Inch) | 0.630" |
| Shank Diameter (mm) | 16.00mm |
| Chip Flute Length (Decimal Inch) | 2.559" |
| Chip Flute Length (mm) | 65.00mm |
| Functional Length Secondary (Decimal Inch) | 2.638" |
| Functional Length Secondary (mm) | 67.00mm |
| Shank Length (Decimal Inch) | 1.890" |
| Shank Length (mm) | 48.00mm |
| Usable Length (Decimal Inch) | 1.772" |
| Usable Length (mm) | 45.00mm |
| Overall Length (Decimal Inch) | 4.528" |
| Overall Length (mm) | 115.00mm |
| Point Length (Decimal Inch) | 0.102" |
| Point Length (mm) | 2.60mm |
| Tool Cutting Edge Angle (Degree) | 70 Degree |
| Flute Helix Angle (Degree) | 30 Degree |
| Flute Helix Hand | Right Hand |
| Shank Type | Cylindrical |
| Material | Carbide |

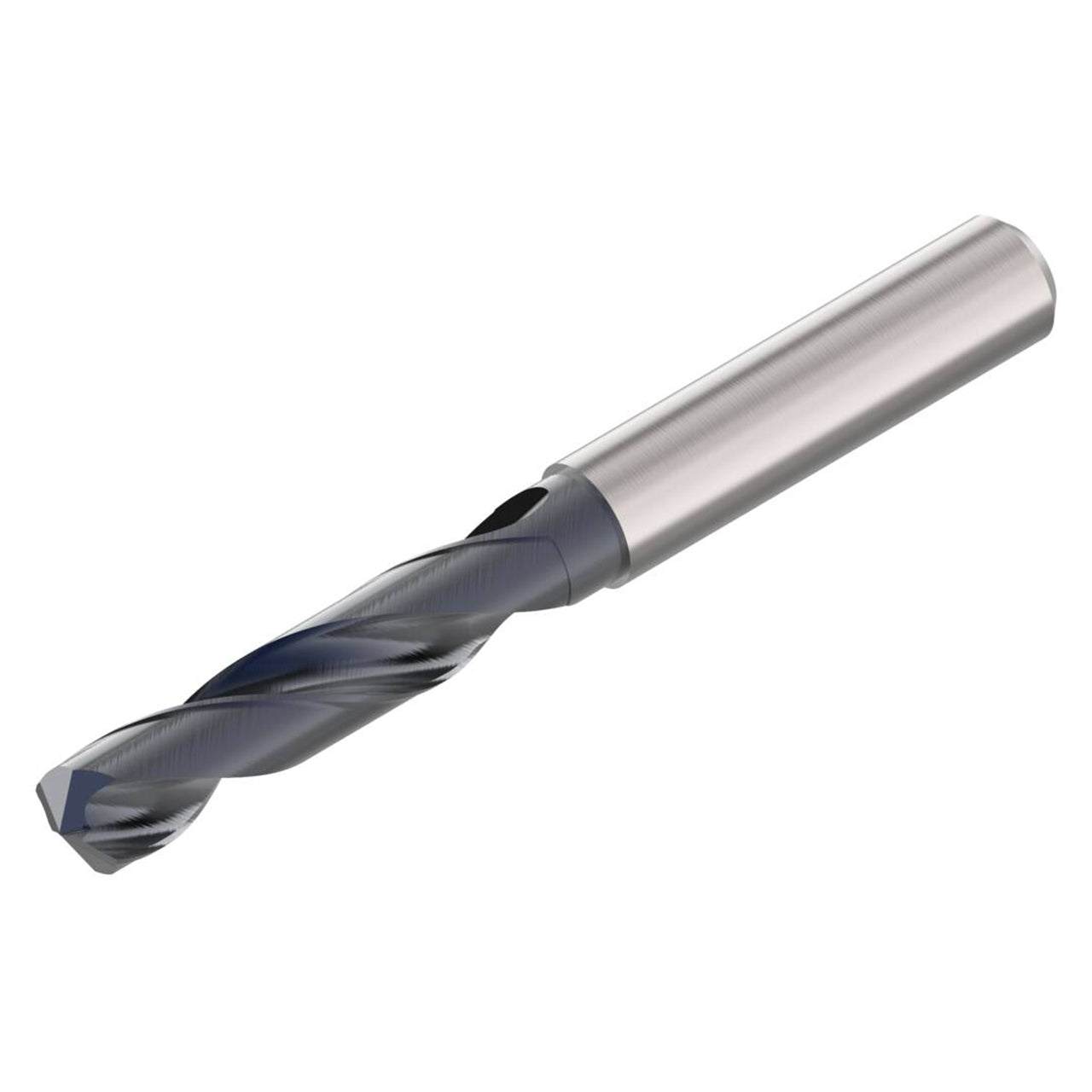

| Product Type | Screw Machine Length Drill Bit |
