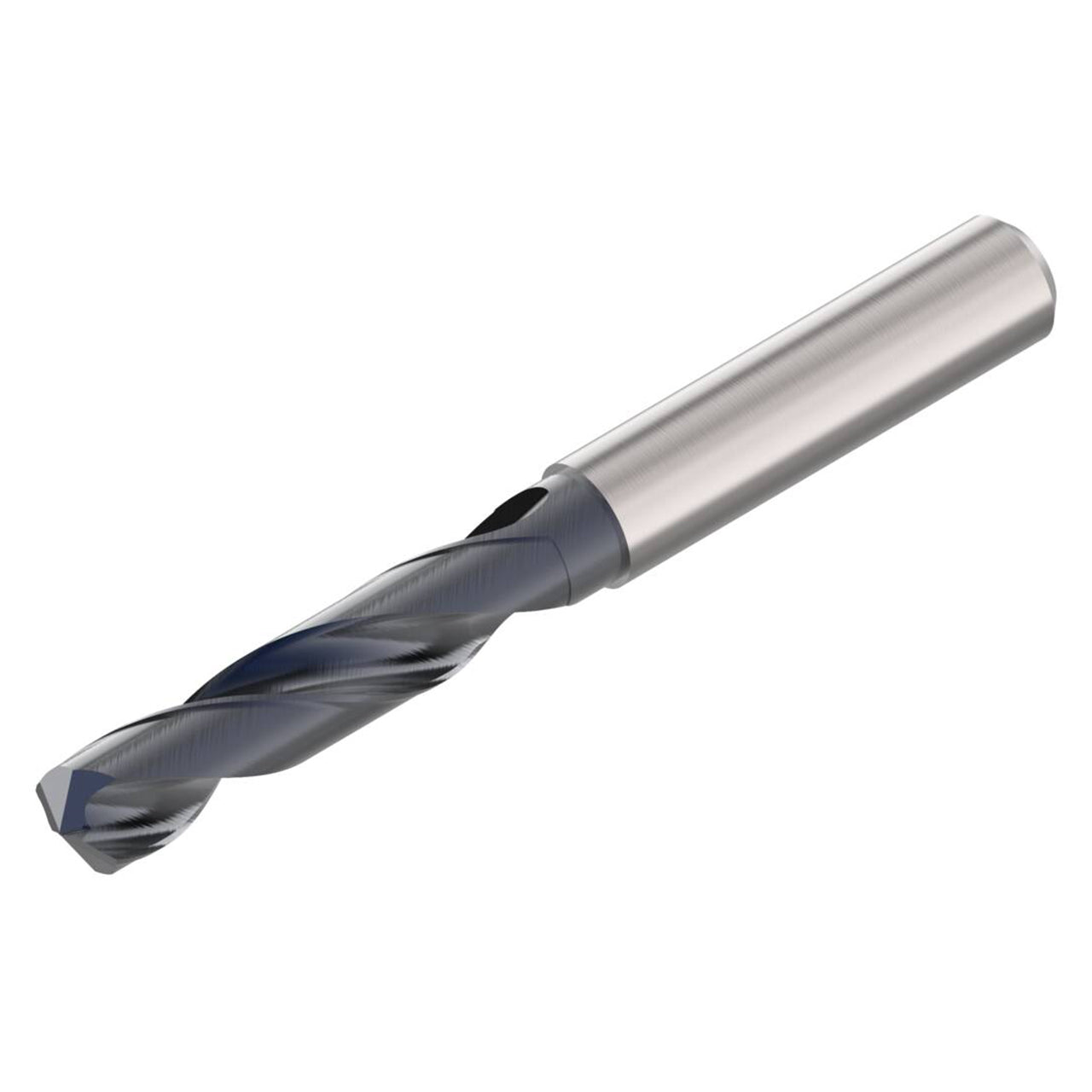

Product Specifications
| Manufacturer Part Number | 02899109 |
| Cutting Diameter (Decimal Inch) | 0.531" |
| Cutting Diameter (mm) | 13.49mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.551" |
| Connection Diameter Machine Side (mm) | 14.00mm |
| Shank Diameter (Decimal Inch) | 0.551" |
| Shank Diameter (mm) | 14.00mm |
| Chip Flute Length (Decimal Inch) | 2.362" |
| Chip Flute Length (mm) | 60.00mm |
| Functional Length Secondary (Decimal Inch) | 2.441" |
| Functional Length Secondary (mm) | 62.00mm |
| Shank Length (Decimal Inch) | 1.772" |
| Shank Length (mm) | 45.00mm |
| Usable Length (Decimal Inch) | 1.693" |
| Usable Length (mm) | 43.00mm |
| Overall Length (Decimal Inch) | 4.213" |
| Overall Length (mm) | 107.00mm |
| Point Length (Decimal Inch) | 0.096" |
| Point Length (mm) | 2.44mm |
| Tool Cutting Edge Angle (Degree) | 70 Degree |
| Flute Helix Angle (Degree) | 30 Degree |
| Flute Helix Hand | Right Hand |
| Shank Type | Cylindrical |
| Material | Carbide |
| Product Type | Screw Machine Length Drill Bit |
