Product Specifications
| Manufacturer Part Number | 02898019 |
| Cutting Diameter (mm) | 16.60mm |
| Connection Diameter Machine Side (mm) | 18.00mm |
| Shank Diameter (mm) | 18.00mm |
| Chip Flute Length (mm) | 93.00mm |
| Functional Length Secondary (mm) | 95.00mm |
| Shank Length (mm) | 48.00mm |
| Usable Length (mm) | 71.00mm |
| Overall Length (mm) | 143.00mm |
| Point Length (mm) | 3.02mm |
| Tool Cutting Edge Angle (Degree) | 70 Degree |
| Flute Helix Angle (Degree) | 30 Degree |
| Flute Helix Hand | Right Hand |
| Coolant Entry Style Code | 4 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 4 |
| Shank Type | Cylindrical |
| Material | Carbide |

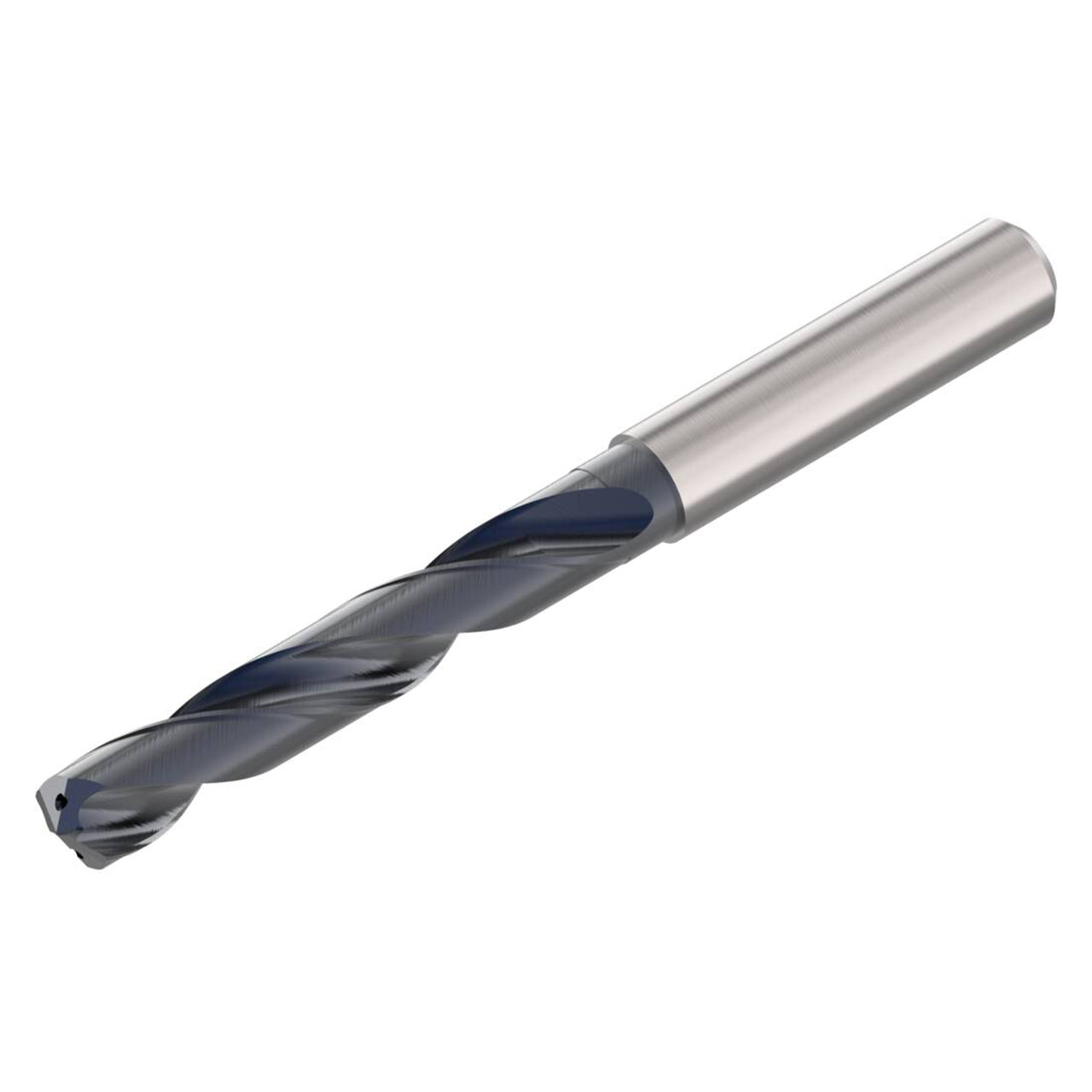

| Product Type | Jobber Length Drill Bit |
