Product Specifications
| Manufacturer Part Number | 02892229 |
| Cutting Diameter (Decimal Inch) | 1.165" |
| Cutting Diameter (mm) | 29.60mm |
| Connection Bore Diameter (Decimal Inch) | 0.500" |
| Connection Bore Diameter (mm) | 12.70mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.260" |
| Contact Surface Diameter Machine Side (mm) | 32.00mm |
| Maximum Cutting Diameter (Decimal Inch) | 1.500" |
| Maximum Cutting Diameter (mm) | 38.10mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 2.921" |
| Maximum Helical Interpolation Hole Diameter (mm) | 74.20mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 2.665" |
| Minimum Helical Interpolation Hole Diameter (mm) | 67.70mm |
| Functional Length (Decimal Inch) | 1.500" |
| Functional Length (mm) | 38.10mm |
| Maximum Depth of Cut (mm) | 0.80mm |
| Maximum Depth of Cut (Decimal Inch) | 0.032" |
| Depth of Key Way (Decimal Inch) | 0.158" |
| Depth of Key Way (mm) | 4.00mm |
| Keyway Width (Decimal Inch) | 0.258" |
| Keyway Width (mm) | 6.55mm |
| Programming Radius (Decimal Inch) | 0.071" |
| Programming Radius (mm) | 1.80mm |
| Uncut Thickness (Decimal Inch) | 0.0177 |
| Uncut Thickness (mm) | 0.45 |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Super close |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -5 Degree |
| Rake Radial Angle (Degree) | -5 Degree |
| Rake Orthogonal Angle (Degree) | -5 Degree |
| Axial Rake Angle (Degree) | 4 Degree |
| Maximum Ramping Angle (Degree) | 1 Degree |
| Maximum Rotational Speed (rpm) | 25000 rpm |
| Insert Shape Code | L |
| Shank Type | Arbor |

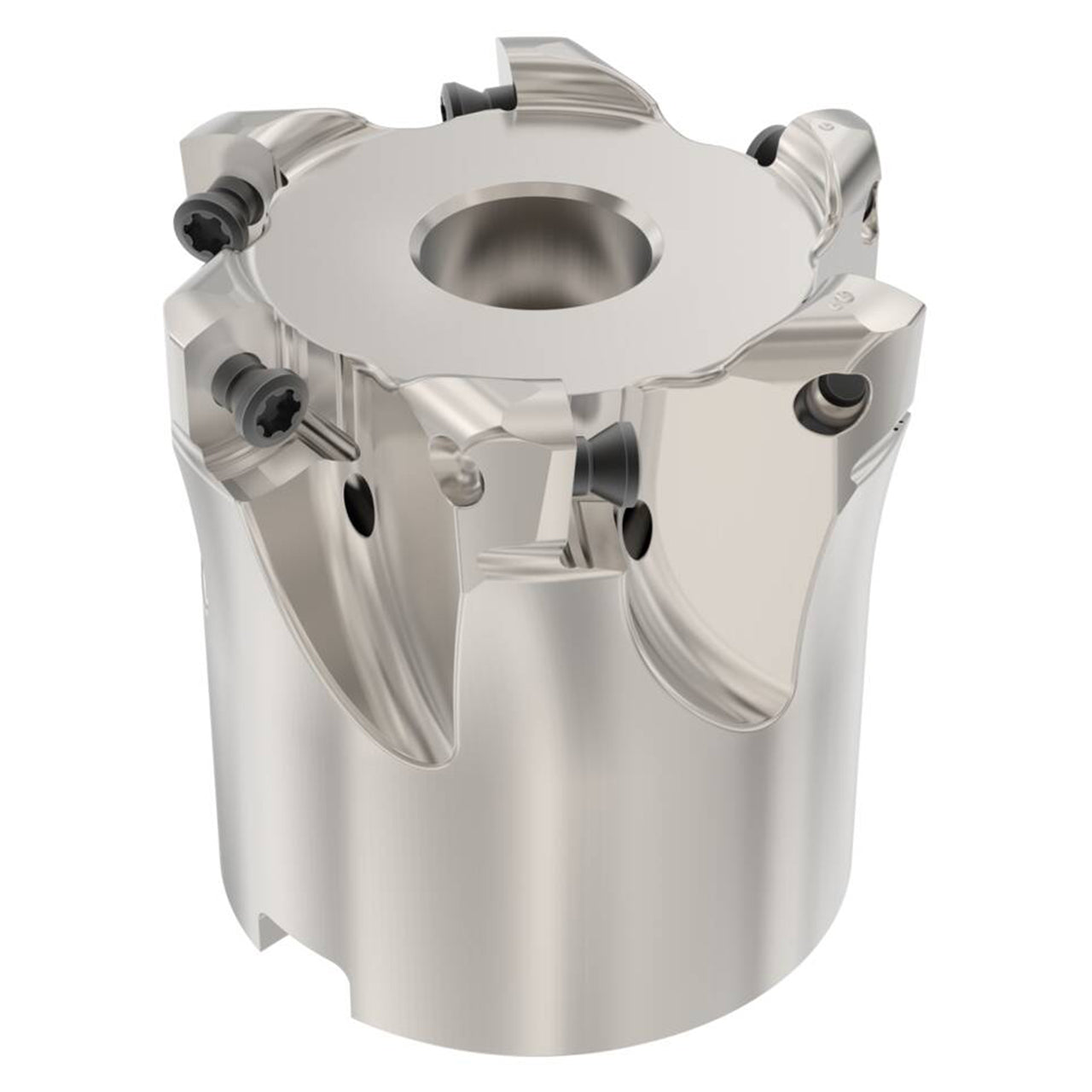

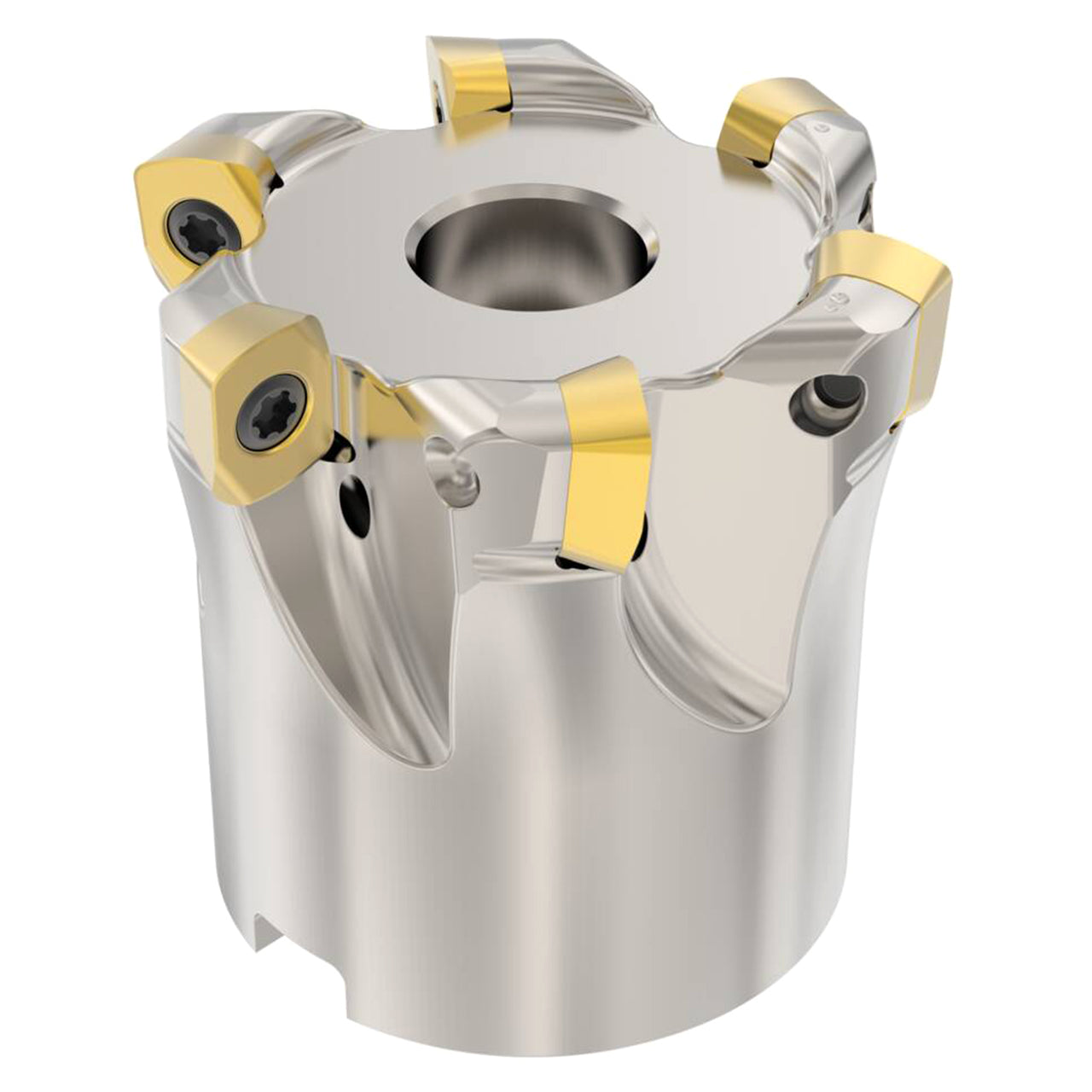

| Product Type | Indexable High-Feed End Mill |
