Product Specifications
| Manufacturer Part Number | 02890010 |

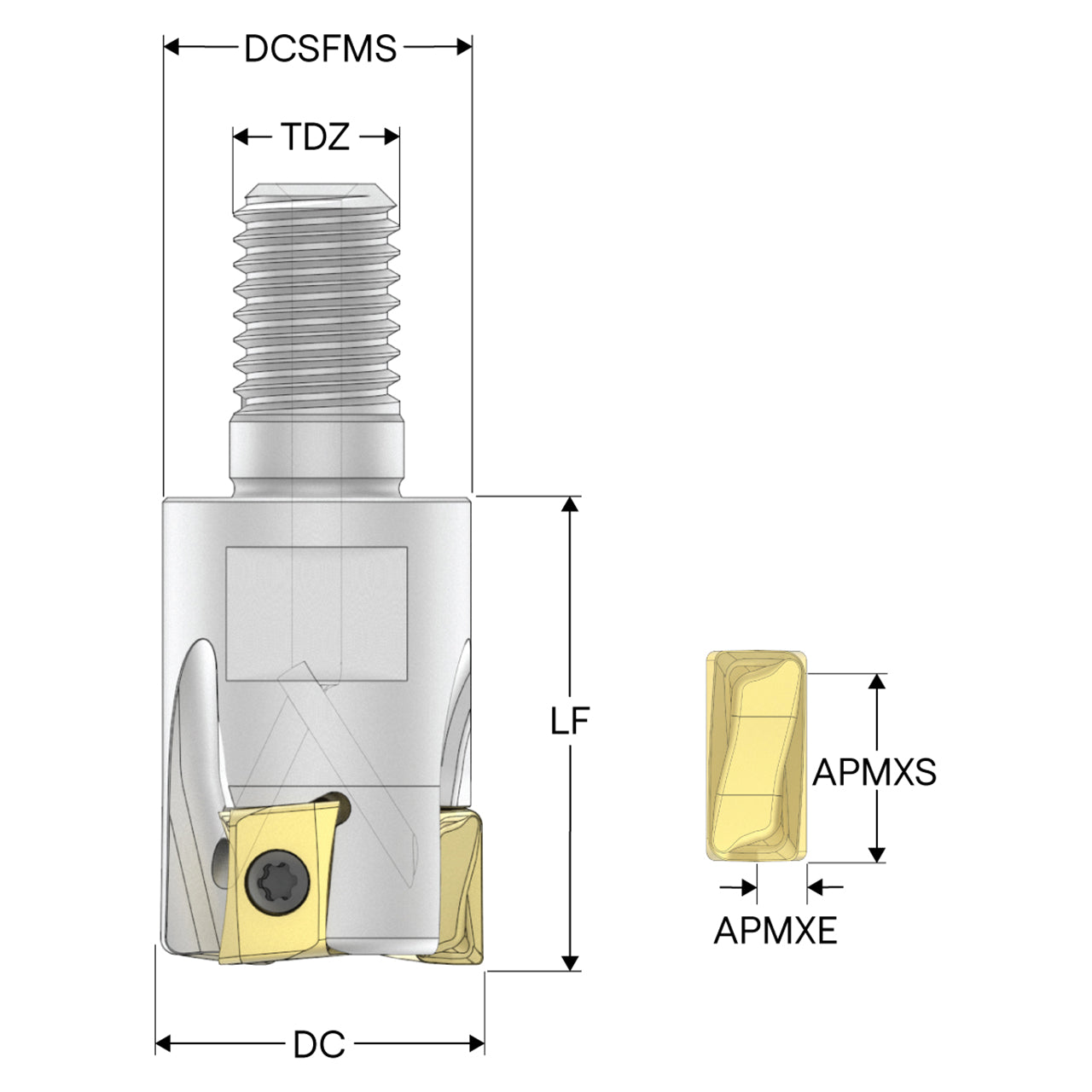

| Depth of Cut Maximum in Feed Direction Side (Decimal Inch) | 0.315" |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Cutting Diameter (Decimal Inch) | 1.000" |
| Contact Surface Diameter Machine Side (Decimal Inch) | 0.906" |
| Tool Cutting Edge Angle in Feed Direction Side (Degree) | 90.00 Degree |
| Functional Length (Decimal Inch) | 1.181" |
| Rotational Speed Maximum | 16500 rpm |
| Shank Type | Combimaster |
| Peripheral Effective Cutting Edge Count | 3 |
| Product Series | R217.94 |

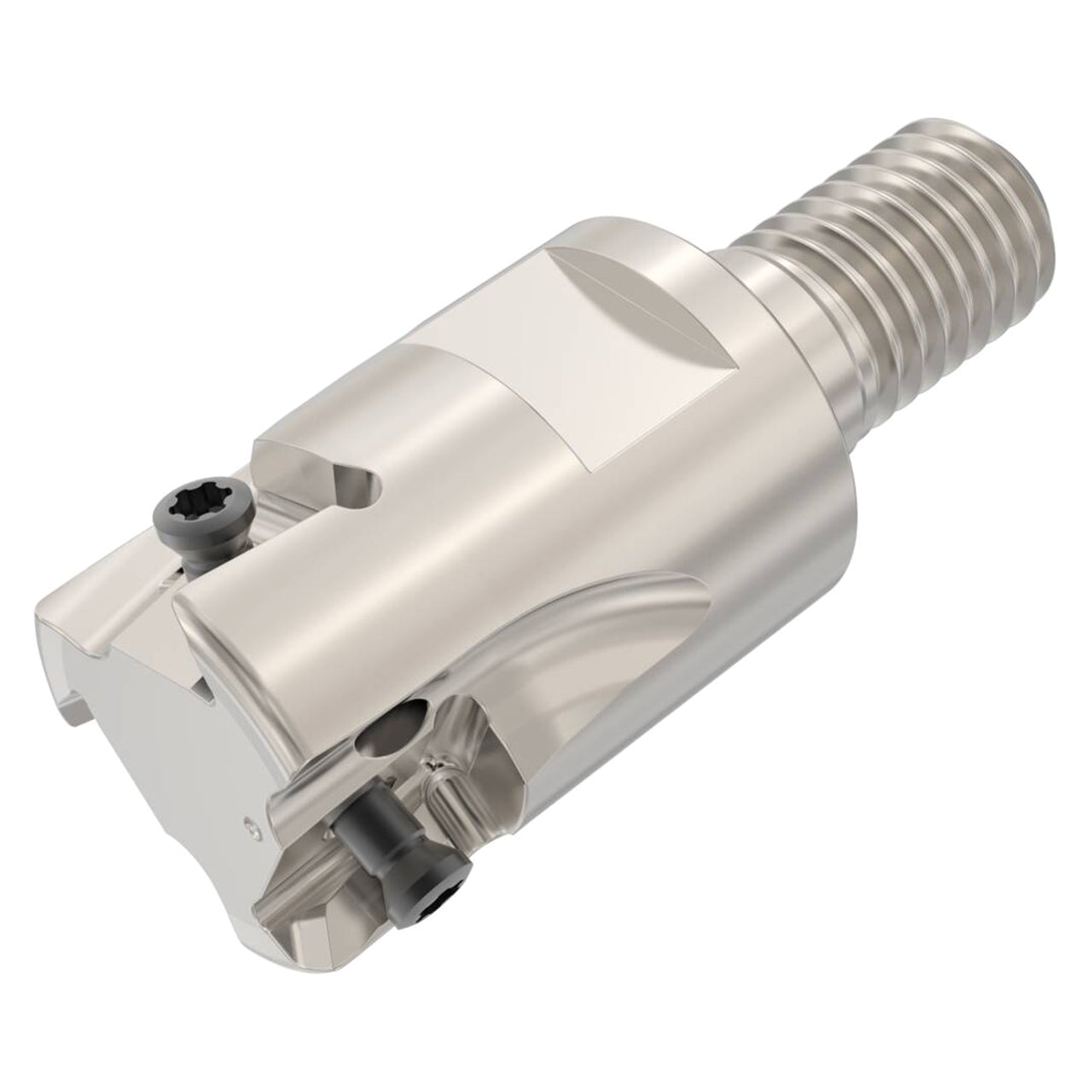

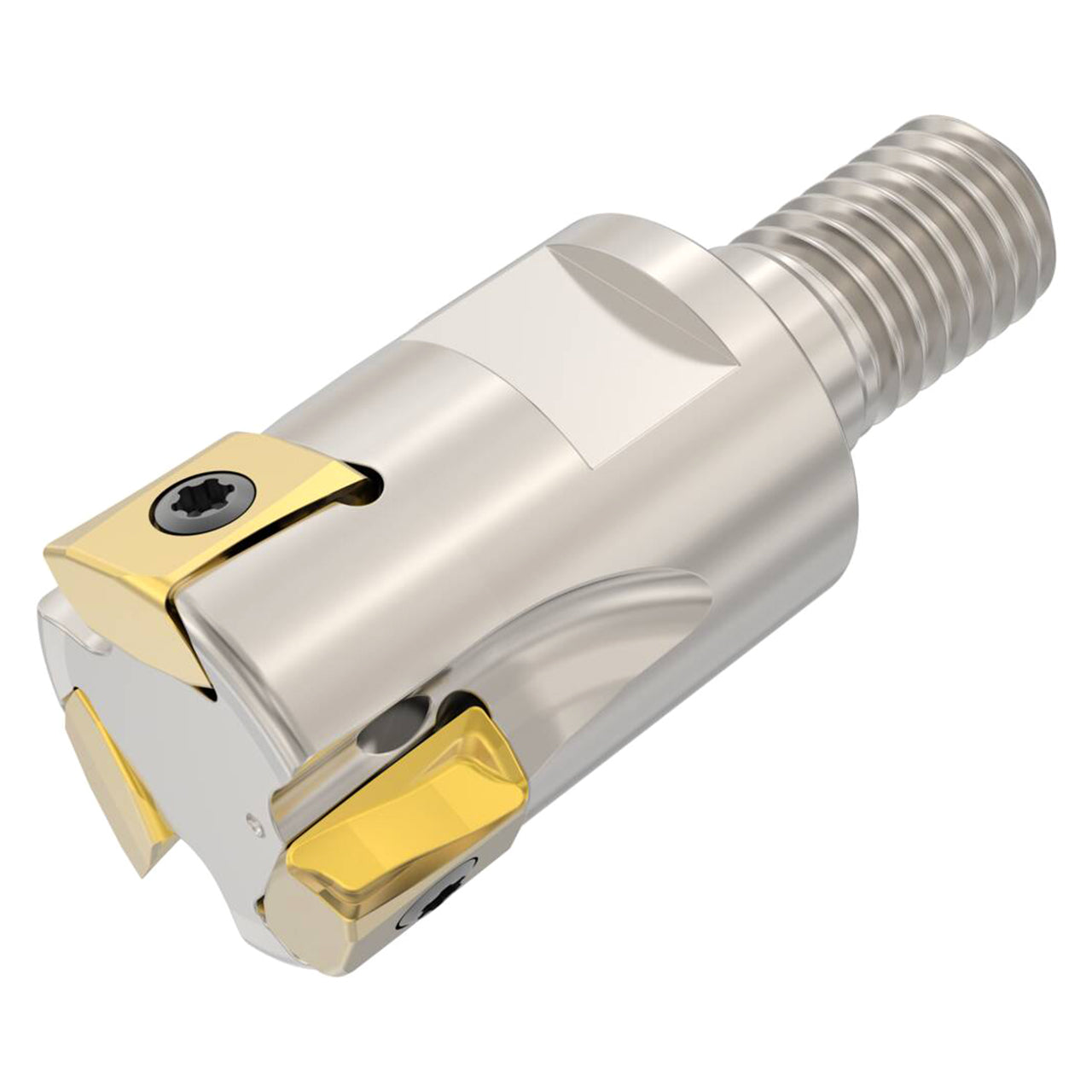

| Product Type | Indexable Square-Shoulder End Mill |
