Product Specifications
| Manufacturer Part Number | 02883051 |
| Depth of Cut Maximum in Feed Direction Side (mm) | 6.00mm |
| Cutting Pitch Density | Normal |
| Cutting Diameter (mm) | 160.00mm |
| Contact Surface Diameter Machine Side (mm) | 130.00mm |
| Cutting Diameter Maximum (mm) | 175.00mm |
| Cutting Direction | Left Hand |
| Tool Cutting Edge Angle in Feed Direction Side (Degree) | 40.00 Degree |
| Functional Length (mm) | 80.00mm |
| Rotational Speed Maximum | 3100 rpm |
| Shank Type | Arbor |
| Peripheral Effective Cutting Edge Count | 10 |
| Product Series | L220.48 |

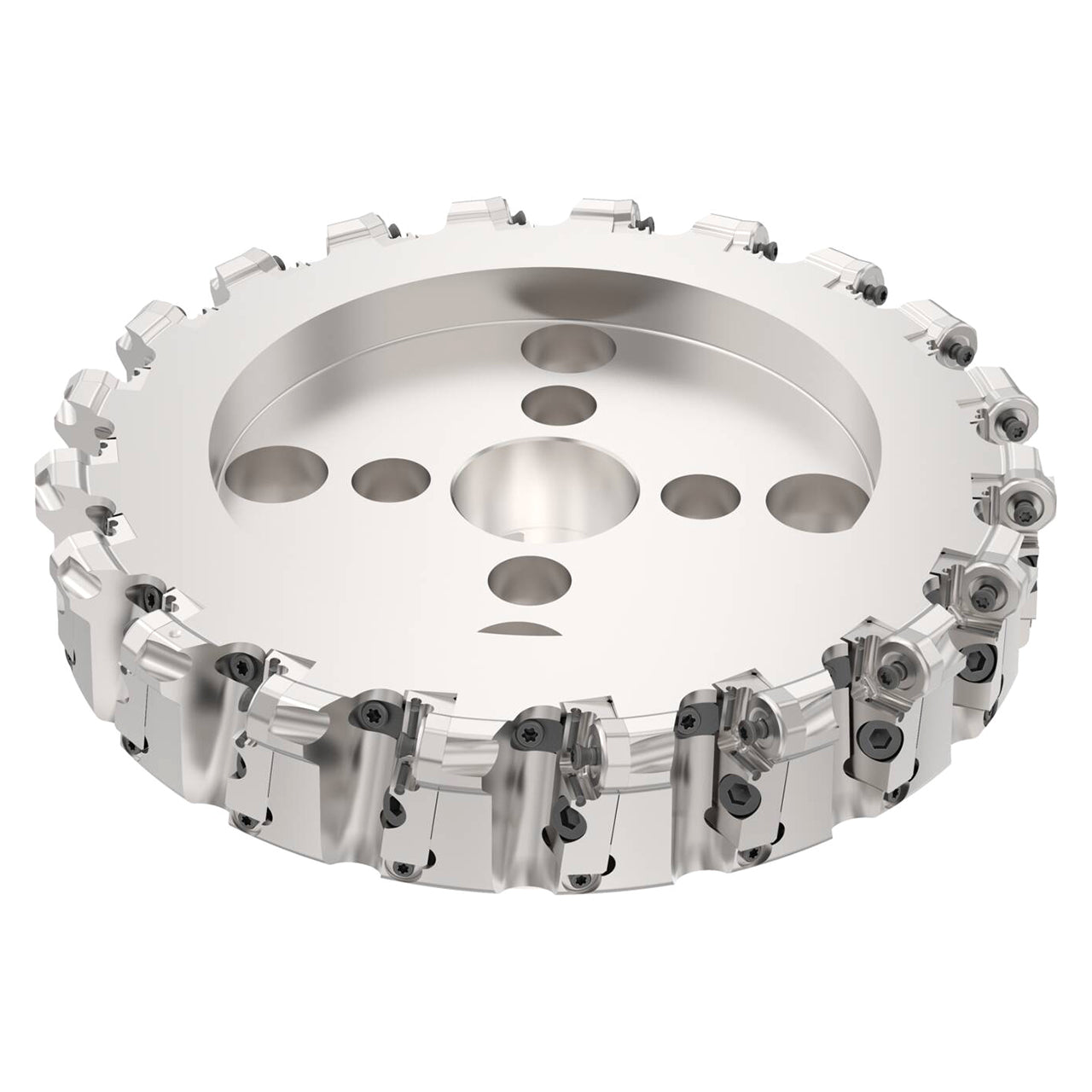

| Product Type | Indexable Chamfer & Angle Face Mill |
