Product Specifications
| Manufacturer Part Number | 02883050 |
| Cutting Diameter (mm) | 125.00mm |
| Connection Bore Diameter (mm) | 40.00mm |
| Contact Surface Diameter Machine Side (mm) | 90.00mm |
| Maximum Cutting Diameter (mm) | 140.00mm |
| Functional Length (mm) | 80.00mm |
| Maximum Depth of Cut (mm) | 6.00mm |
| Depth of Key Way (mm) | 9.00mm |
| Keyway Width (mm) | 16.40mm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 2 |
| Rake Radial Angle (Degree) | -8 Degree |
| Rake Radial Angle (Degree) | -8 Degree |
| Rake Orthogonal Angle (Degree) | -11 Degree |
| Axial Rake Angle (Degree) | -8 Degree |
| Cutting Direction | Left Hand |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 40 Degree |
| Maximum Rotational Speed (rpm) | 3500 rpm |
| Insert Shape Code | O |
| Shank Type | Arbor |

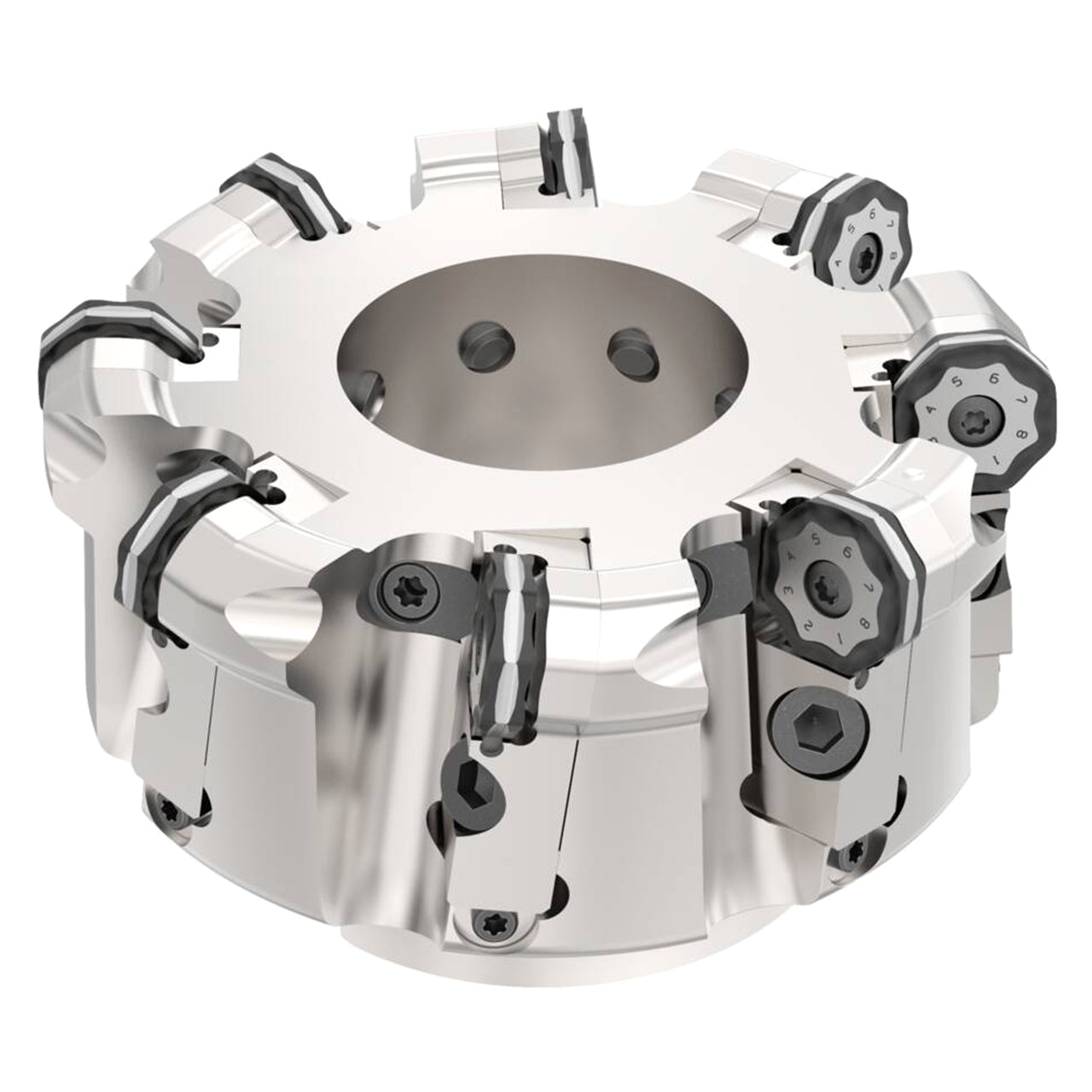

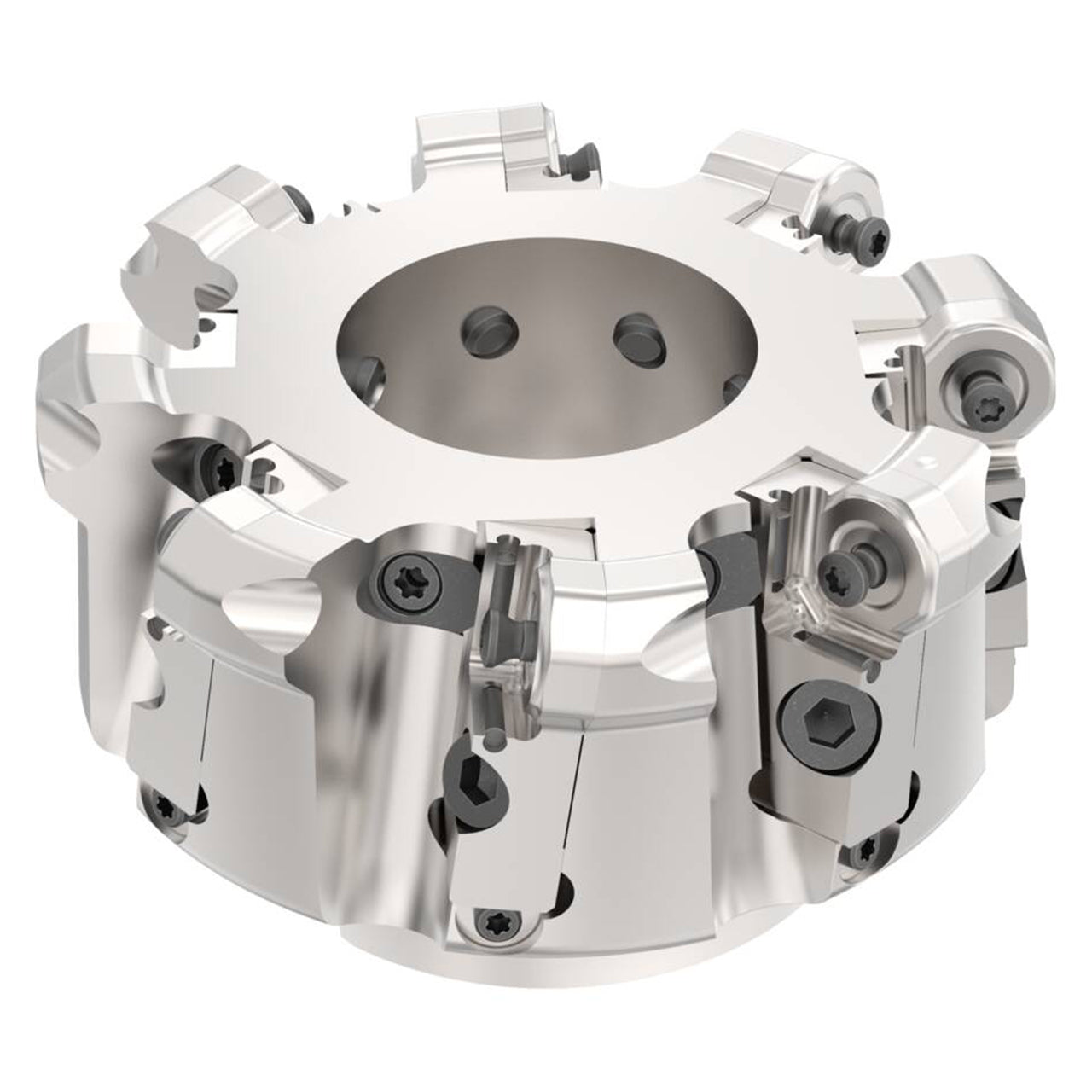

| Product Type | Indexable Face Mill Cutter |
