Product Specifications
| Manufacturer Part Number | 02881178 |
| Cutting Diameter (Decimal Inch) | 2.500" |
| Cutting Diameter (mm) | 63.50mm |
| Connection Bore Diameter (Decimal Inch) | 0.750" |
| Connection Bore Diameter (mm) | 19.05mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.575" |
| Contact Surface Diameter Machine Side (mm) | 40.00mm |
| Body Length (Decimal Inch) | 0.350" |
| Body Length (mm) | 8.90mm |
| Functional Length (Decimal Inch) | 2.000" |
| Functional Length (mm) | 50.80mm |
| Keyway Width (Decimal Inch) | 0.321" |
| Keyway Width (mm) | 8.15mm |
| Cutting Width (Decimal Inch) | 0.250" |
| Cutting Width (mm) | 6.35mm |
| Minimum Cutting Width (Decimal Inch) | 0.250" |
| Minimum Cutting Width (mm) | 6.35mm |
| Maximum Cutting Width (Decimal Inch) | 0.289" |
| Maximum Depth of Cut (Decimal Inch) | 0.250" |
| Maximum Depth of Cut (mm) | 6.35mm |
| Depth of Key Way (Decimal Inch) | 0.193" |
| Depth of Key Way (mm) | 4.90mm |
| Maximum Cutting Depth (Decimal Inch) | 0.555" |
| Maximum Cutting Depth (mm) | 14.10mm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Rake Radial Angle (Degree) | -15 Degree |
| Cutting Direction | Right Hand |
| Maximum Rotational Speed (rpm) | 9400 rpm |
| Cutting Pitch Density | Normal |
| Pocket Seat Code of The Cutter | 335.19-1204 |
| Cutting Item Material Type | Steel |
| Shank Type | Arbor |

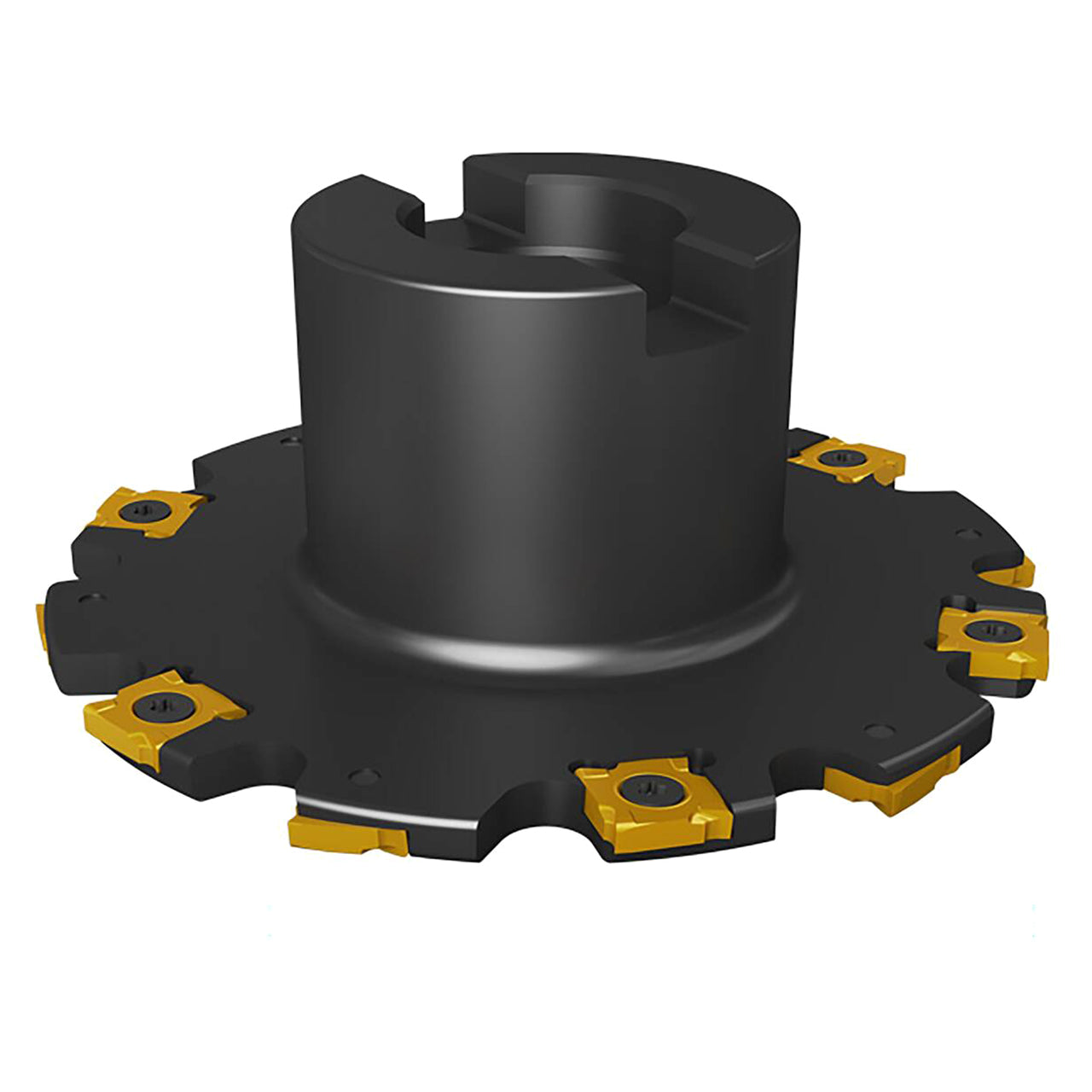

| Product Type | Indexable Slotting Cutter |
