Product Specifications
| Manufacturer Part Number | 02881043 |
| Cutting Diameter (Decimal Inch) | 0.240" |
| Cutting Diameter (mm) | 6.10mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.500" |
| Connection Diameter Machine Side (mm) | 12.70mm |
| Maximum Cutting Diameter (Decimal Inch) | 0.500" |
| Maximum Cutting Diameter (mm) | 12.70mm |
| Shank Diameter (Decimal Inch) | 0.500" |
| Shank Diameter (mm) | 12.70mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 0.921" |
| Maximum Helical Interpolation Hole Diameter (mm) | 23.40mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 0.740" |
| Minimum Helical Interpolation Hole Diameter (mm) | 18.80mm |
| Protruding Length (Decimal Inch) | 3.228" |
| Protruding Length (mm) | 82.00mm |
| Shank Length (Decimal Inch) | 4.370" |
| Shank Length (mm) | 111.00mm |
| Overall Length (Decimal Inch) | 5.000" |
| Overall Length (mm) | 127.00mm |
| Maximum Depth of Cut (mm) | 0.65mm |
| Maximum Depth of Cut (Decimal Inch) | 0.026" |
| Programming Radius (Decimal Inch) | 0.059" |
| Programming Radius (mm) | 1.50mm |
| Uncut Thickness (Decimal Inch) | 0.0126 |
| Uncut Thickness (mm) | 0.32 |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -8 Degree |
| Rake Radial Angle (Degree) | -8 Degree |
| Rake Orthogonal Angle (Degree) | -8 Degree |
| Axial Rake Angle (Degree) | 4 Degree |
| Maximum Ramping Angle (Degree) | 5.4 Degree |
| Maximum Rotational Speed (rpm) | 45000 rpm |
| Insert Shape Code | L |
| Shank Type | Cylindrical |

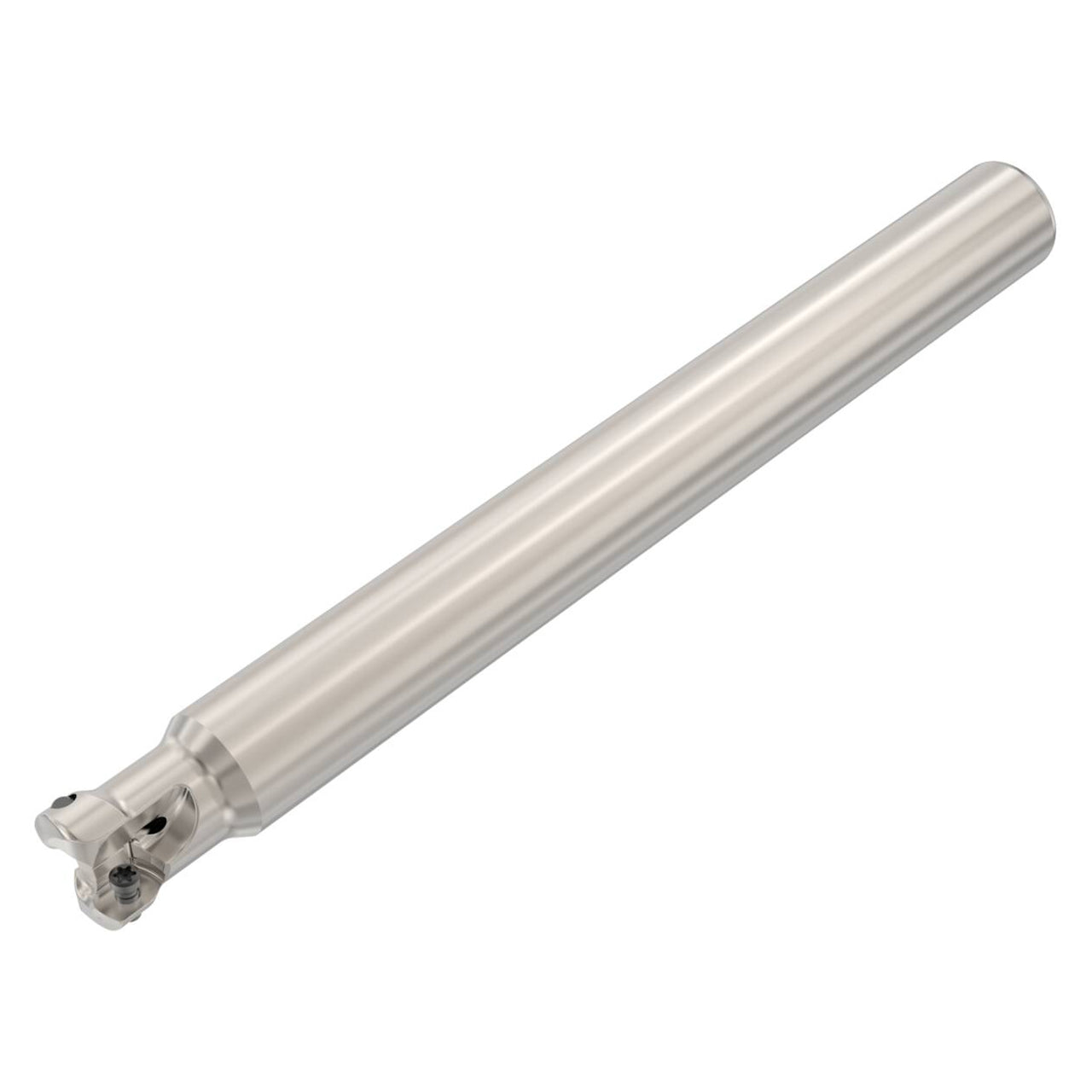

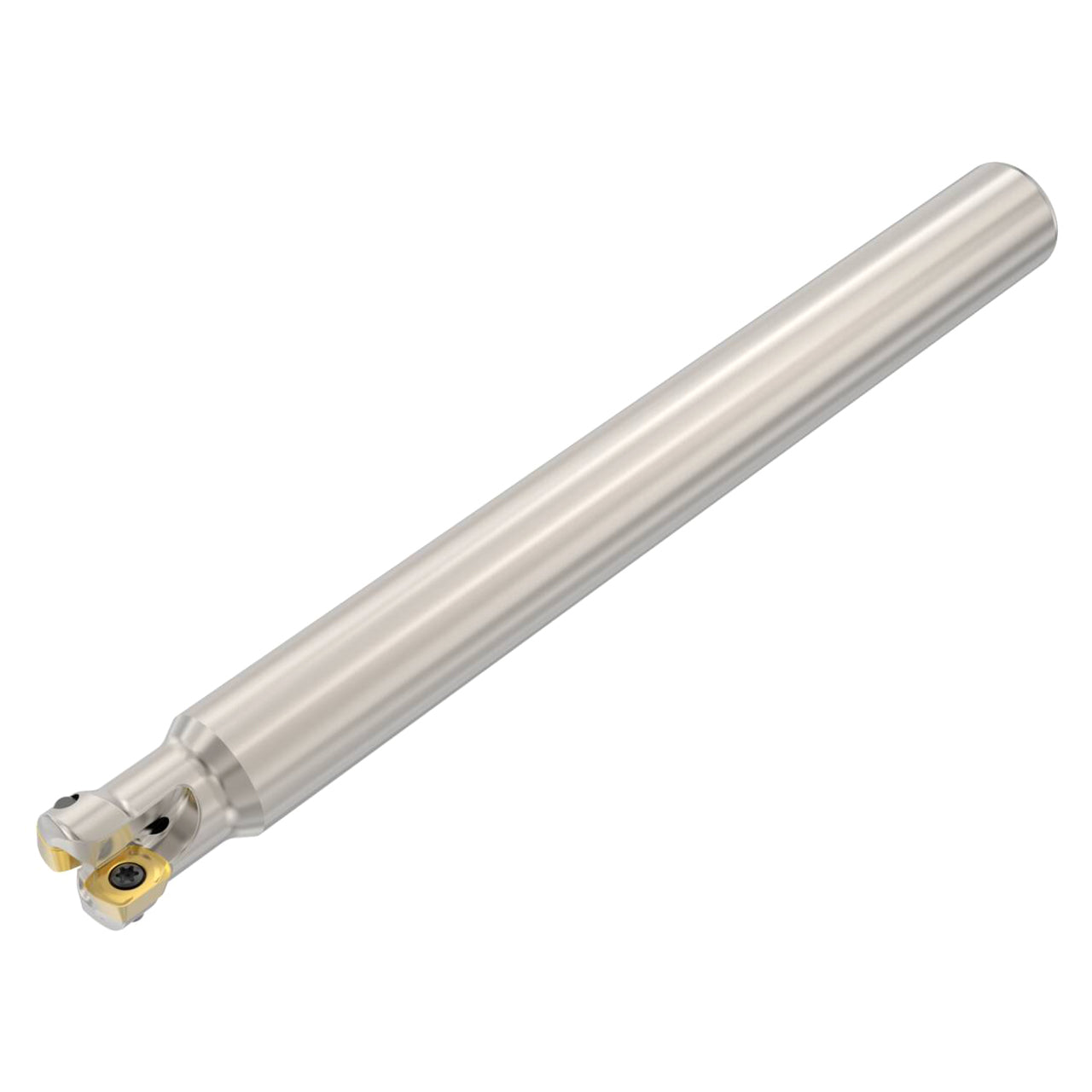

| Product Type | Indexable High-Feed End Mill |
