Product Specifications
| Manufacturer Part Number | 02881040 |
| Cutting Diameter (Decimal Inch) | 0.362" |
| Cutting Diameter (mm) | 9.20mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 0.532" |
| Contact Surface Diameter Machine Side (mm) | 13.50mm |
| Maximum Cutting Diameter (Decimal Inch) | 0.625" |
| Maximum Cutting Diameter (mm) | 15.88mm |
| Thread Diameter Size | M8 |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 1.171" |
| Maximum Helical Interpolation Hole Diameter (mm) | 29.75mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 0.987" |
| Minimum Helical Interpolation Hole Diameter (mm) | 25.08mm |
| Functional Length (Decimal Inch) | 0.787" |
| Functional Length (mm) | 20.00mm |
| Overall Length (Decimal Inch) | 1.486" |
| Overall Length (mm) | 37.75mm |
| Maximum Depth of Cut (mm) | 0.65mm |
| Maximum Depth of Cut (Decimal Inch) | 0.026" |
| Connection Mounting Torque (Nm) | 25.0 Nm |
| Programming Radius (Decimal Inch) | 0.059" |
| Programming Radius (mm) | 1.50mm |
| Uncut Thickness (Decimal Inch) | 0.0126 |
| Uncut Thickness (mm) | 0.32 |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Close |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -7 Degree |
| Rake Radial Angle (Degree) | -7 Degree |
| Rake Orthogonal Angle (Degree) | -7 Degree |
| Axial Rake Angle (Degree) | 4 Degree |
| Maximum Ramping Angle (Degree) | 3 Degree |
| Maximum Rotational Speed (rpm) | 39000 rpm |
| Insert Shape Code | L |
| Shank Type | Combimaster |

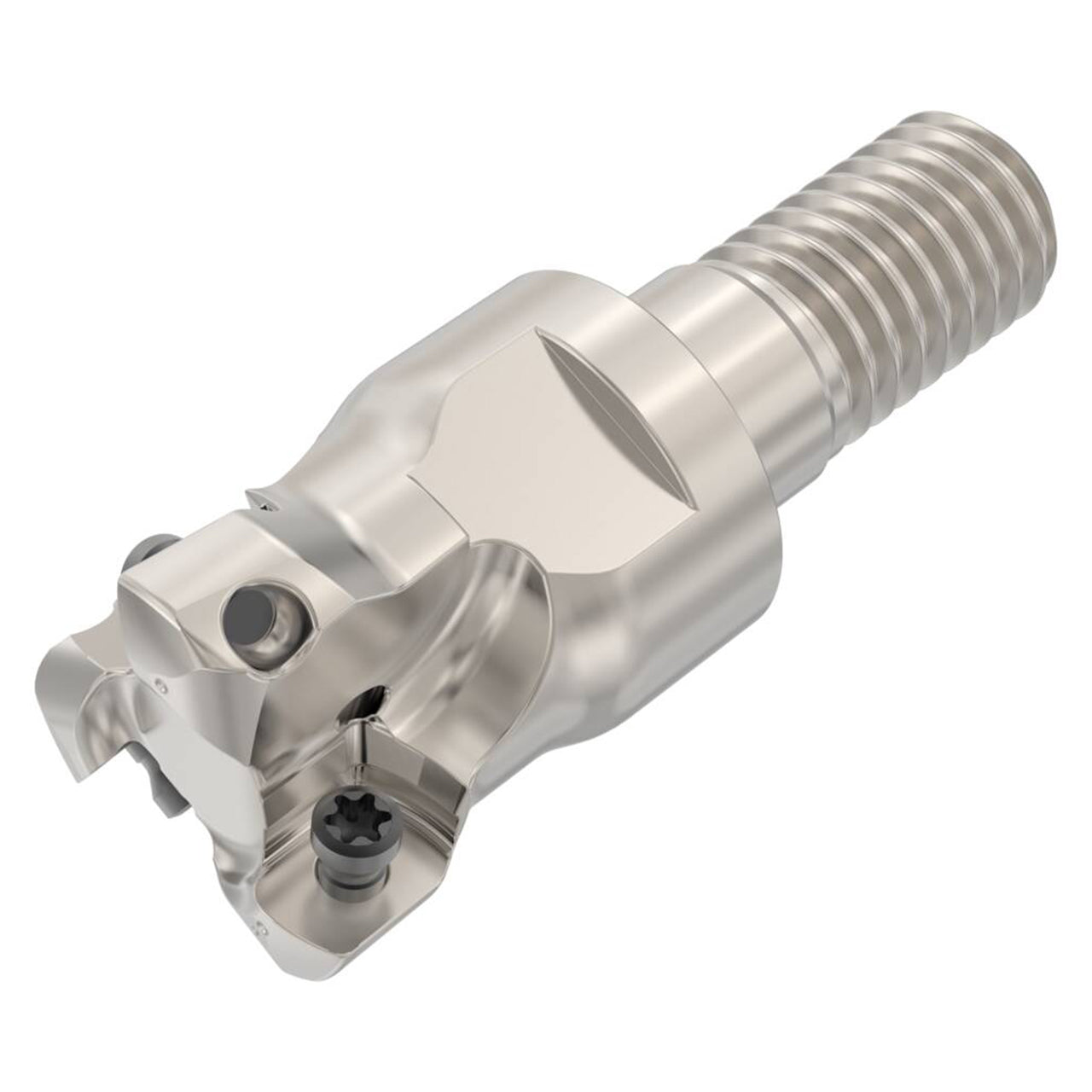

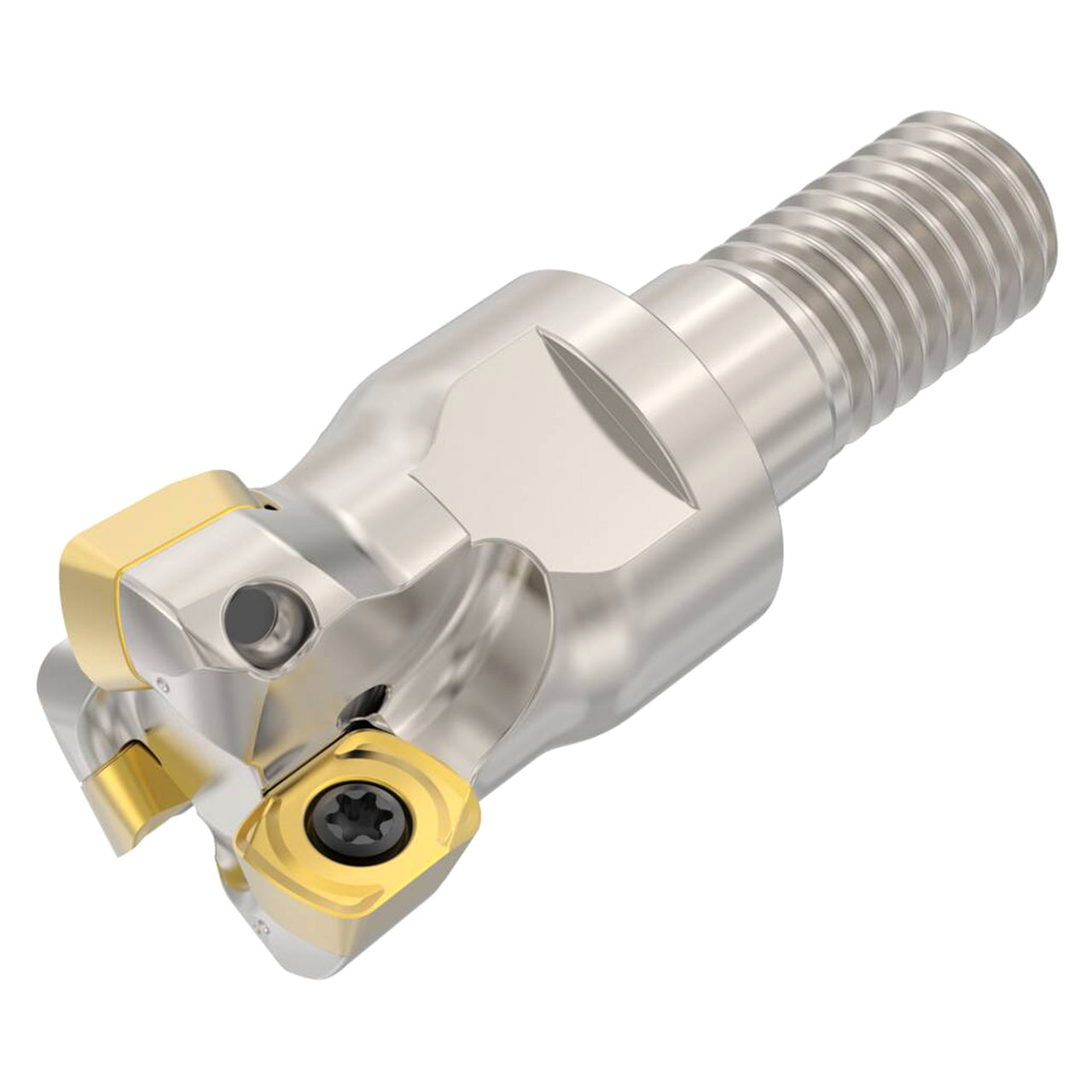

| Product Type | Indexable High-Feed End Mill |
