Product Specifications
| Manufacturer Part Number | 02880962 |

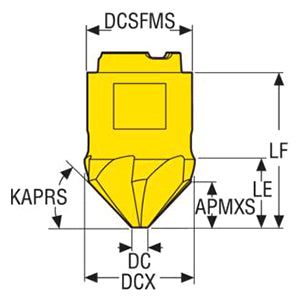

| Cutting Diameter (Decimal Inch) | 0.156" |
| Cutting Diameter (mm) | 3.95mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 0.606" |
| Contact Surface Diameter Machine Side (mm) | 15.40mm |
| Maximum Cutting Diameter (Decimal Inch) | 0.646" |
| Maximum Cutting Diameter (mm) | 16.40mm |
| Maximum Depth of Cut (Decimal Inch) | 0.236" |
| Maximum Depth of Cut (mm) | 6.00mm |
| Corner Chamfer Width (Decimal Inch) | 0.276" |
| Corner Chamfer Width (mm) | 7.00mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.409" |
| Cutting Edge Effective Length (mm) | 10.40mm |
| Functional Length (Decimal Inch) | 0.925" |
| Functional Length (mm) | 23.50mm |
| Torque (Nm) | 19Nm |
| Cutting Edge Count | 1 |
| Rake Radial Angle (Degree) | 6 Degree |
| Axial Rake Angle (Degree) | 6 Degree |
| Material | Carbide |
| Tool Cutting Edge Angle (Degree) | 45 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 45 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 45 Degree |
| Corner Chamfer Angle (Degree) | 45 Degree |
| Point Length (Decimal Inch) | 0.236" |
| Point Length (mm) | 6.00mm |
| Point Angle (Degree) | 90 Degree |
| Peripheral Effective Cutting Edge Count | 6 |
| Peripheral Edges In The Tool | 6 |

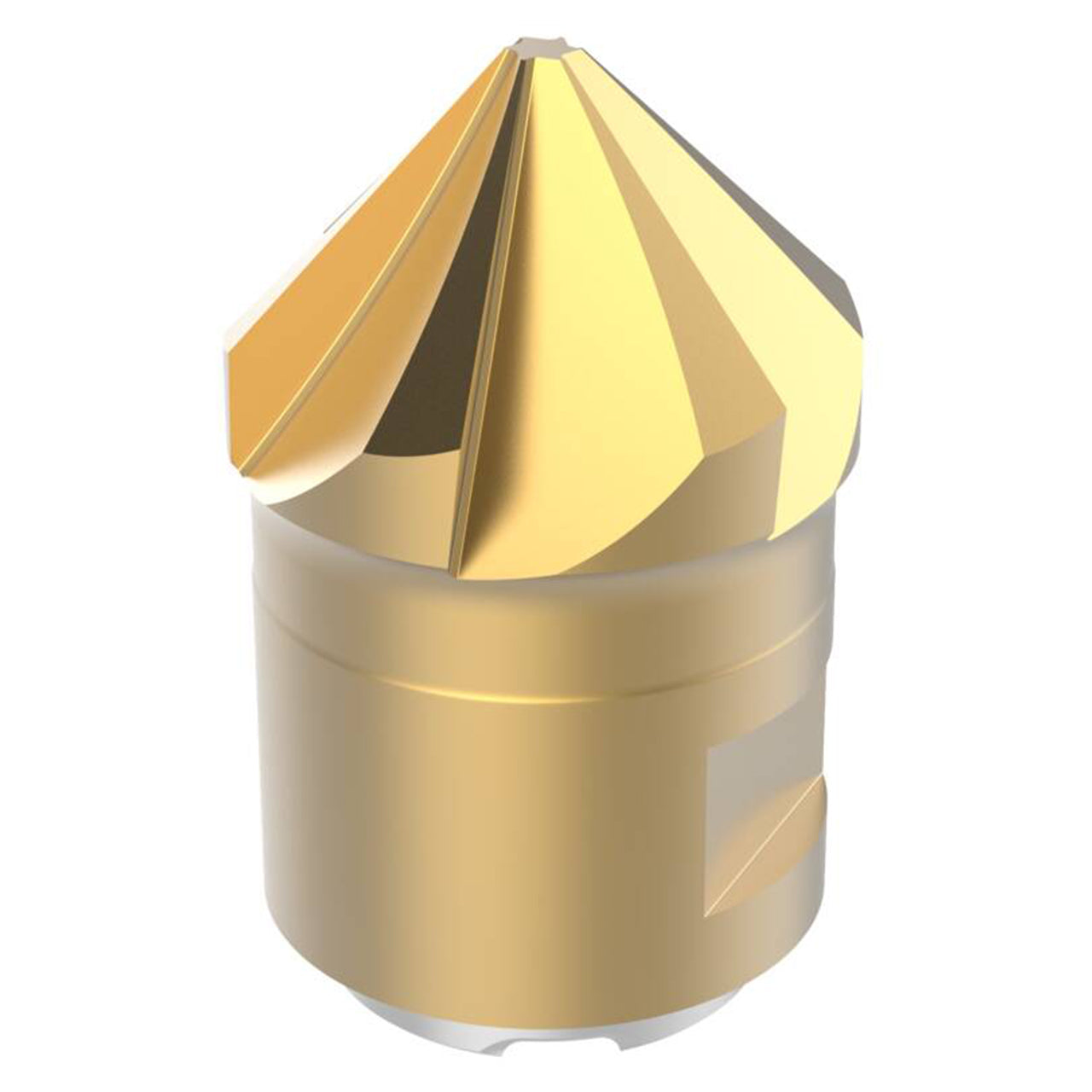

| Product Type | Chamfer Milling Tip Insert |
