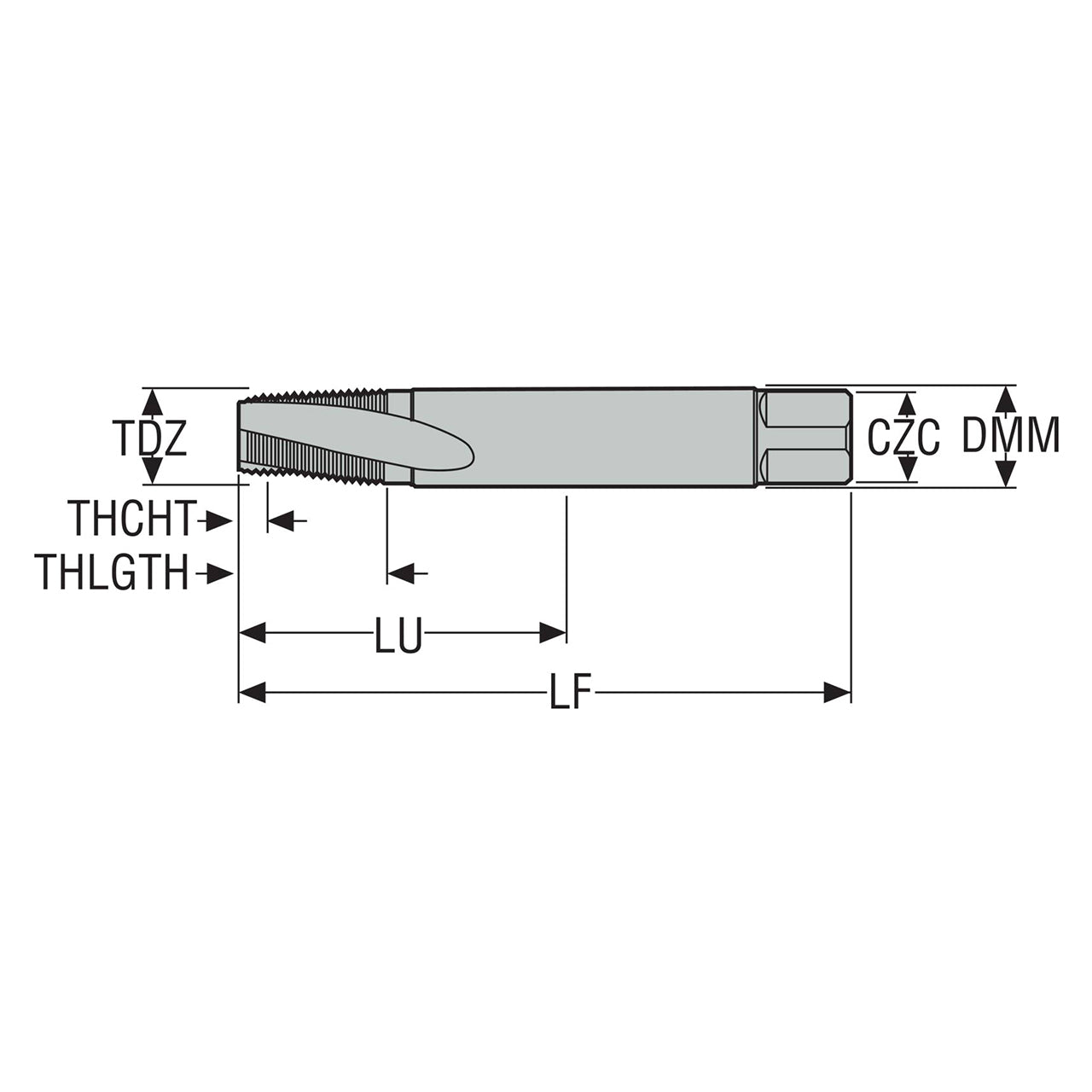

Product Specifications
| Manufacturer Part Number | 02880750 |
| Coating | Vaporised |
| Connection Diameter Machine Side (Decimal Inch) | 0.313" |
| Shank Diameter (Decimal Inch) | 0.313" |
| Flute Helix Angle (Degree) | 15 Degree |
| Cutting Direction | Right Hand |
| Functional Length (Decimal Inch) | 3.150" |
| Usable Length (Decimal Inch) | 2.205" |
| Material | HSS-E |
| Number of Flutes | 3 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.242" |
| Shank Type | Cylindrical |
| Tap Chamfer Length (Decimal Inch) | 0.107" |
| Thread Diameter (Decimal Inch) | 0.304" |
| Thread Tolerance Class | NORMAL |
| Threading Chamfer Length (Decimal Inch) | 0.107" |
| Thread Form Type | NPT |
| Thread Length (Decimal Inch) | 0.551" |
| Product Series | MTH |

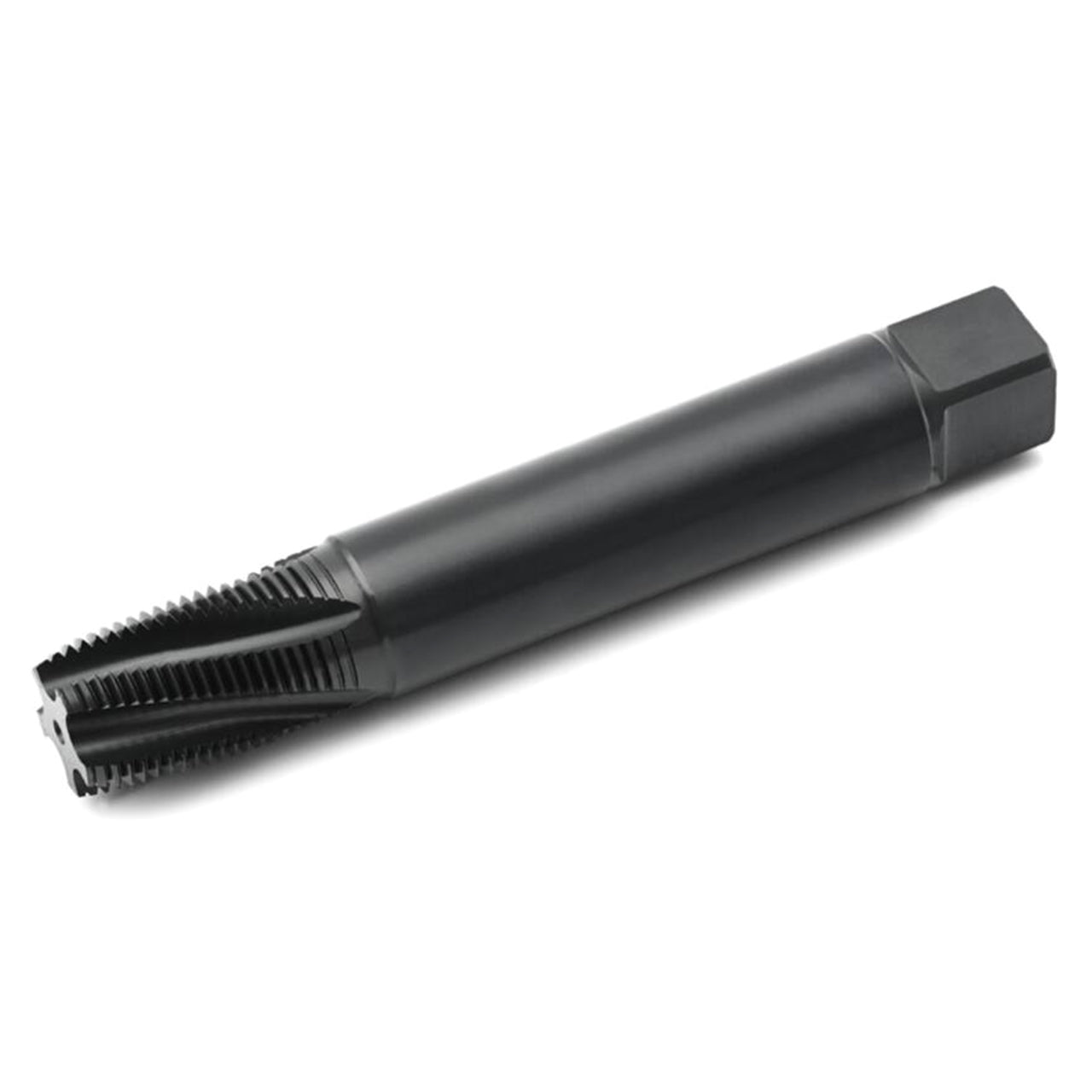

| Product Type | Spiral Flute Pipe Tap |
