Product Specifications
| Manufacturer Part Number | 02880419 |
| Functional Length (Decimal Inch) | 4.500" |
| Functional Length (mm) | 114.30mm |
| Head Length (Decimal Inch) | 1.181" |
| Head Length (mm) | 30.00mm |
| Shank Width (Decimal Inch) | 0.625" |
| Shank Width (mm) | 15.88mm |
| Height of Tool Holder Shank (Decimal Inch) | 0.625" |
| Height of Tool Holder Shank (mm) | 15.88mm |
| Functional Height (Decimal Inch) | 0.625" |
| Functional Height (mm) | 15.88mm |
| Functional Width (Decimal Inch) | 0.875" |
| Functional Width (mm) | 22.23mm |
| Rake Orthogonal Angle (Degree) | -6 Degree |
| Axial Rake Angle (Degree) | -6 Degree |
| Cutting Direction | Left Hand |
| Insert Clamping System | D |
| Tool Cutting Edge Angle (Degree) | 95 Degree |
| Tool Cutting Edge Angle Code | L |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 95 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 95 Degree |
| Inclination Angle (Degree) | -6 Degree |
| Insert Shape Code | W |
| Shank Type | Square shank |

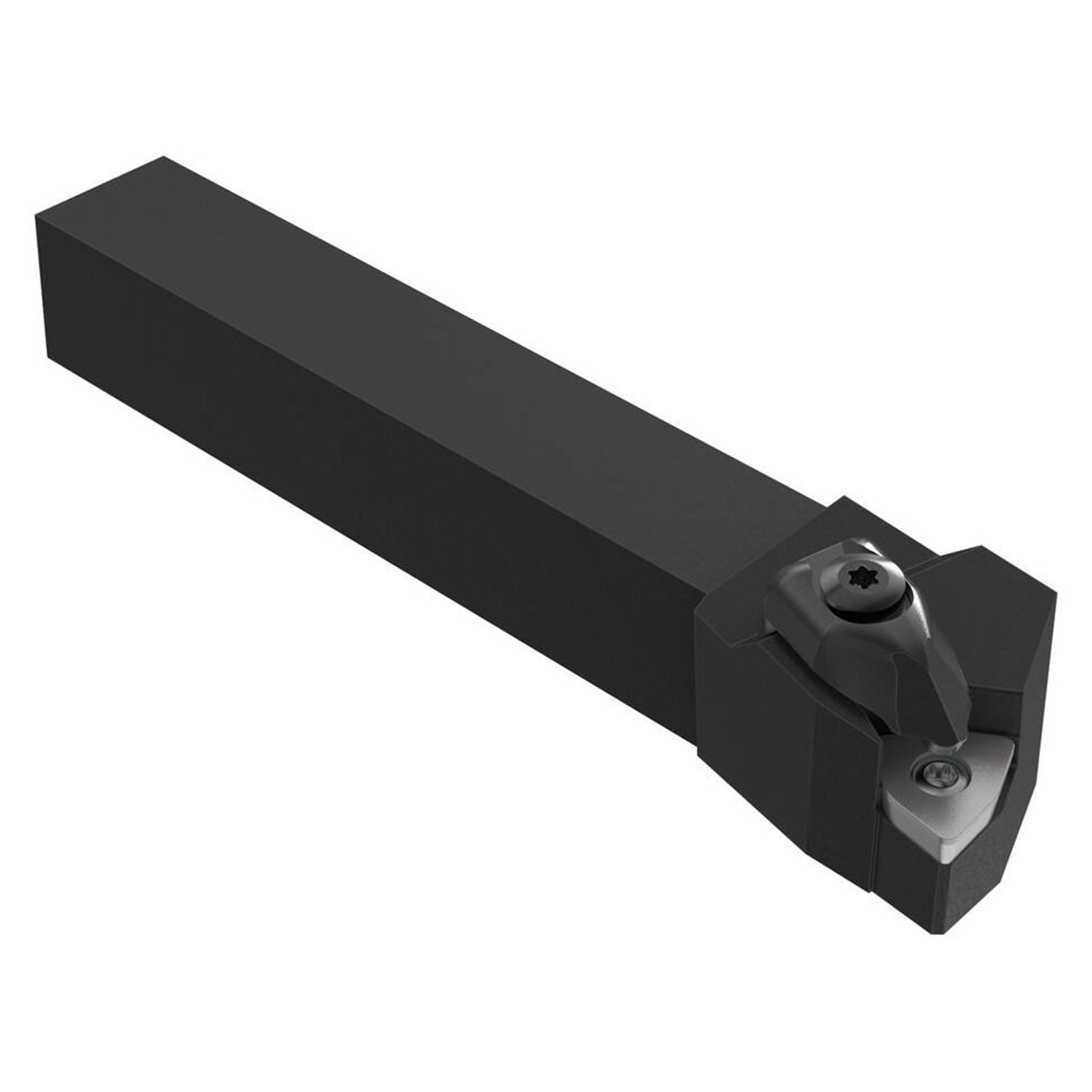

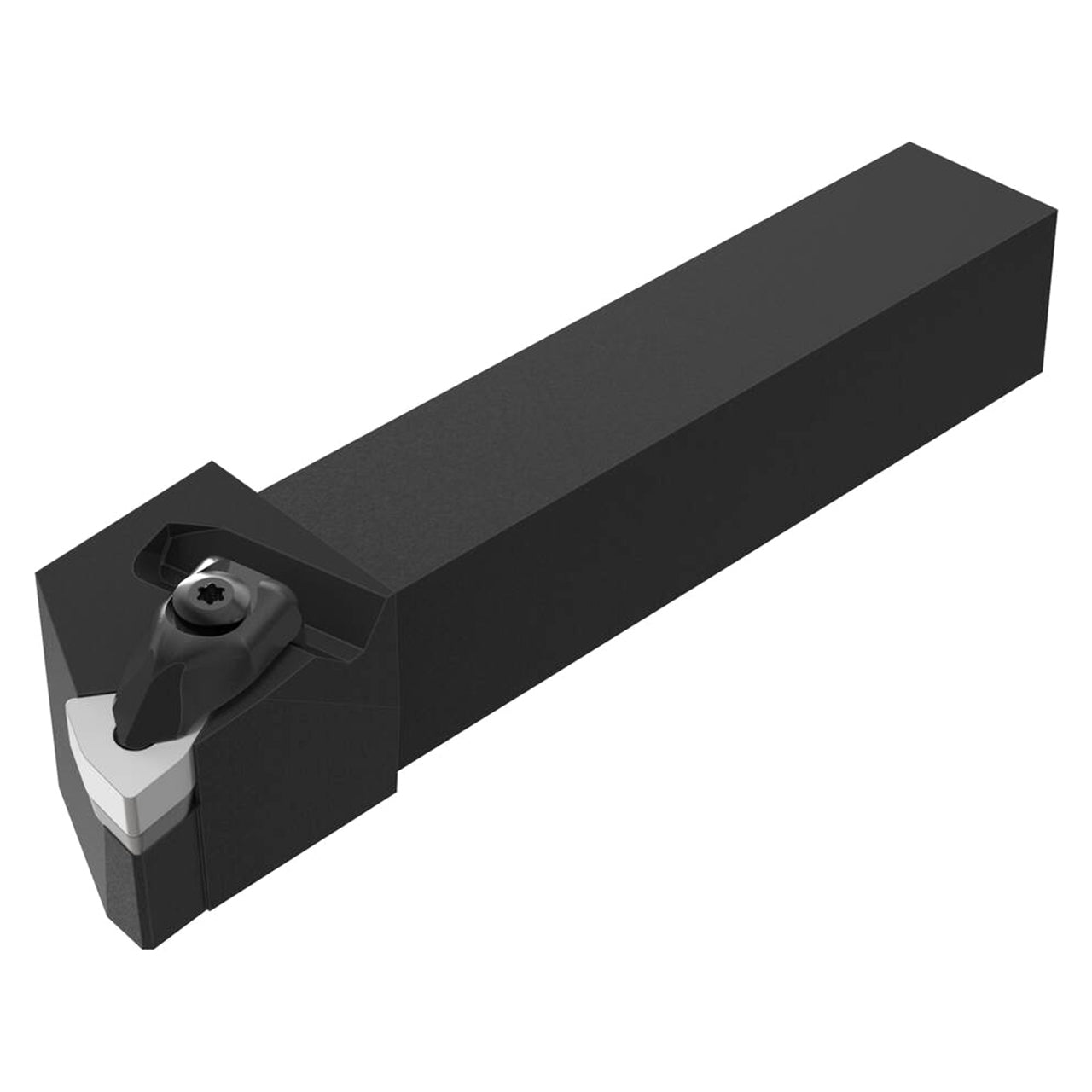

| Product Type | Indexable Turning Toolholder |
