Product Specifications
| Manufacturer Part Number | 02870719 |
| Body Diameter (Decimal Inch) | 1.970" |
| Body Diameter (mm) | 50.04mm |
| Connection Diameter Workpiece Side (Decimal Inch) | 1.250" |
| Connection Diameter Workpiece Side (mm) | 31.75mm |
| Shank Diameter (Decimal Inch) | 1.250" |
| Shank Diameter (mm) | 31.75mm |
| Body Length (Decimal Inch) | 4.000" |
| Body Length (mm) | 101.60mm |
| Functional Length (Decimal Inch) | 4.750" |
| Functional Length (mm) | 120.65mm |
| Maximum Clamping Length (Decimal Inch) | 0.945" |
| Maximum Clamping Length (mm) | 24.00mm |
| Overall Length (Decimal Inch) | 8.756" |
| Overall Length (mm) | 222.40mm |
| Flange Thickness (Decimal Inch) | 0.236" |
| Flange Thickness (mm) | 5.99mm |
| Data Chip Provision | 1 |

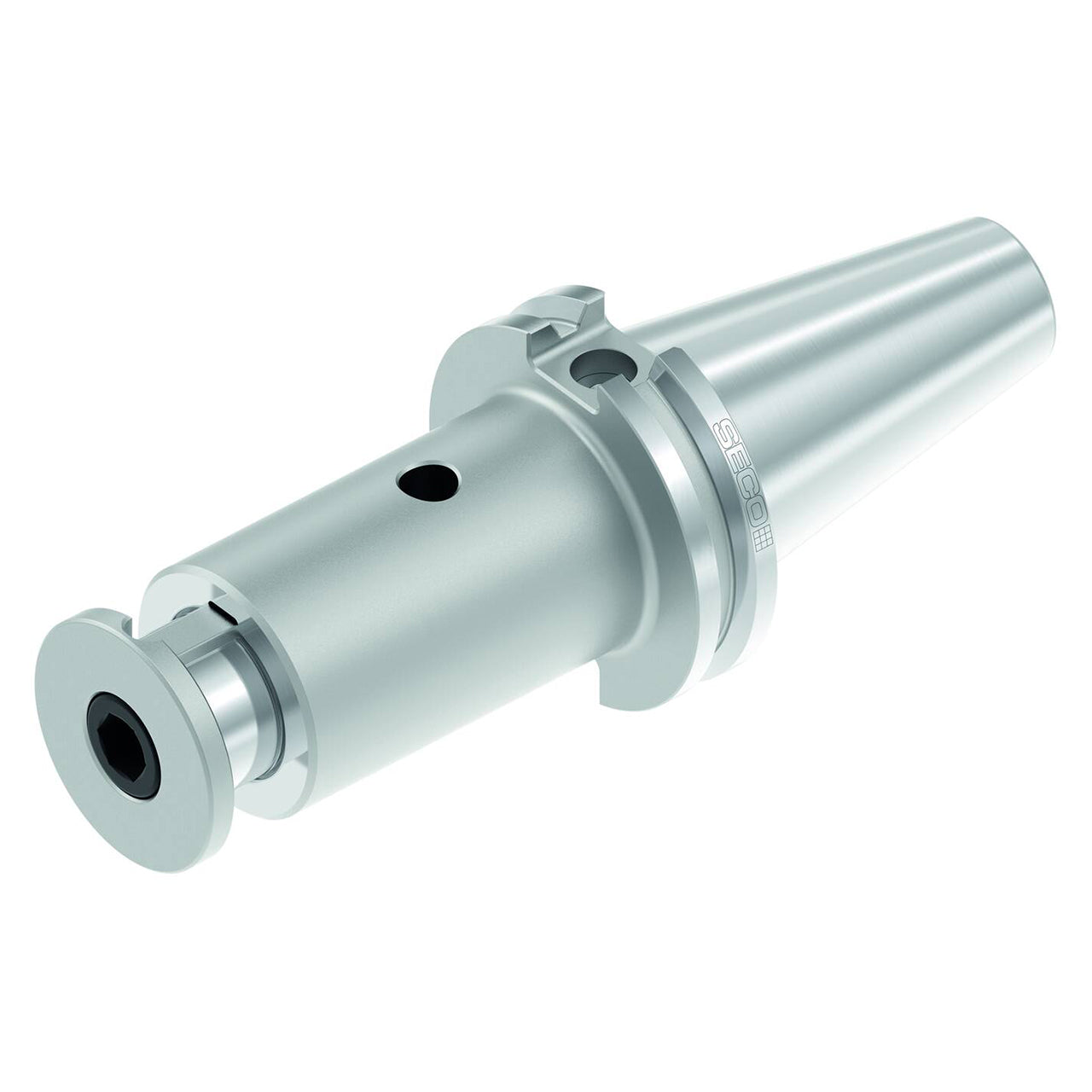

| Product Type | Disc Mill Holder |
