Product Specifications
| Manufacturer Part Number | 02870718 |
| Body Diameter (Decimal Inch) | 1.650" |
| Body Diameter (mm) | 41.91mm |
| Shank Diameter (Decimal Inch) | 1.000" |
| Shank Diameter (mm) | 25.40mm |
| Body Length (Decimal Inch) | 2.750" |
| Body Length (mm) | 69.85mm |
| Functional Length (Decimal Inch) | 3.500" |
| Functional Length (mm) | 88.90mm |
| Maximum Clamping Length (Decimal Inch) | 0.591" |
| Maximum Clamping Length (mm) | 15.01mm |
| Overall Length (Decimal Inch) | 7.504" |
| Overall Length (mm) | 190.60mm |
| Flange Thickness (Decimal Inch) | 0.196" |
| Flange Thickness (mm) | 4.98mm |
| Data Chip Provision | 1 |

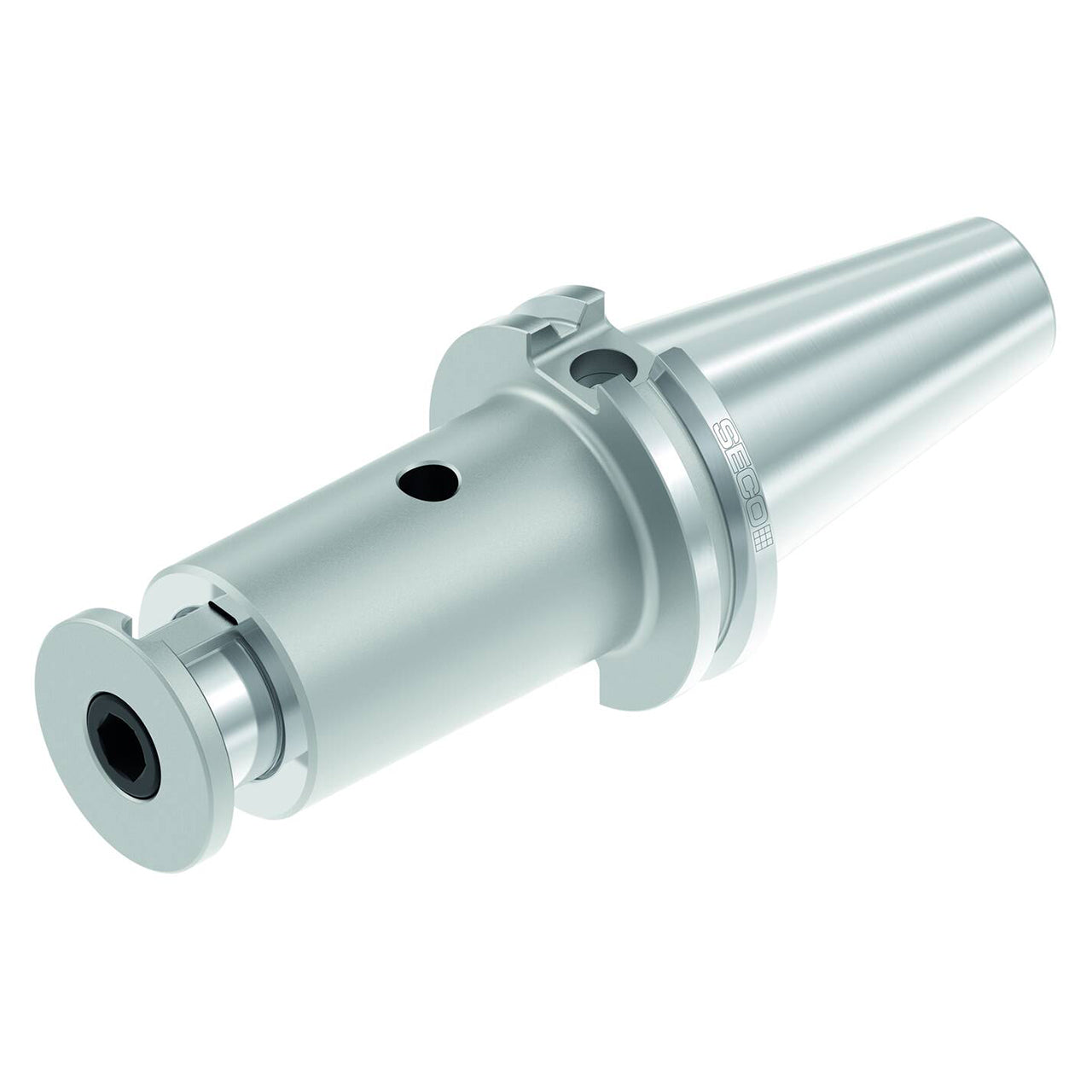

| Product Type | Disc Mill Holder |
