Product Specifications
| Manufacturer Part Number | 02869807 |
| Body Diameter 1 (Decimal Inch) | 2.717" |
| Body Diameter 1 (mm) | 69.00mm |
| Connection Bore Diameter (Decimal Inch) | 1.250" |
| Connection Bore Diameter (mm) | 31.75mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.187" |
| Minimum Connection Bore Diameter (mm) | 4.75mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 1.250" |
| Maximum Connection Bore Diameter (mm) | 31.75mm |
| Body Length (Decimal Inch) | 3.394" |
| Body Length (mm) | 86.20mm |
| Protruding Length (Decimal Inch) | 4.535" |
| Protruding Length (mm) | 115.20mm |
| Overall Length (Decimal Inch) | 7.016" |
| Overall Length (mm) | 178.20mm |
| Connection Bore Depth (mm) | 78.00mm |

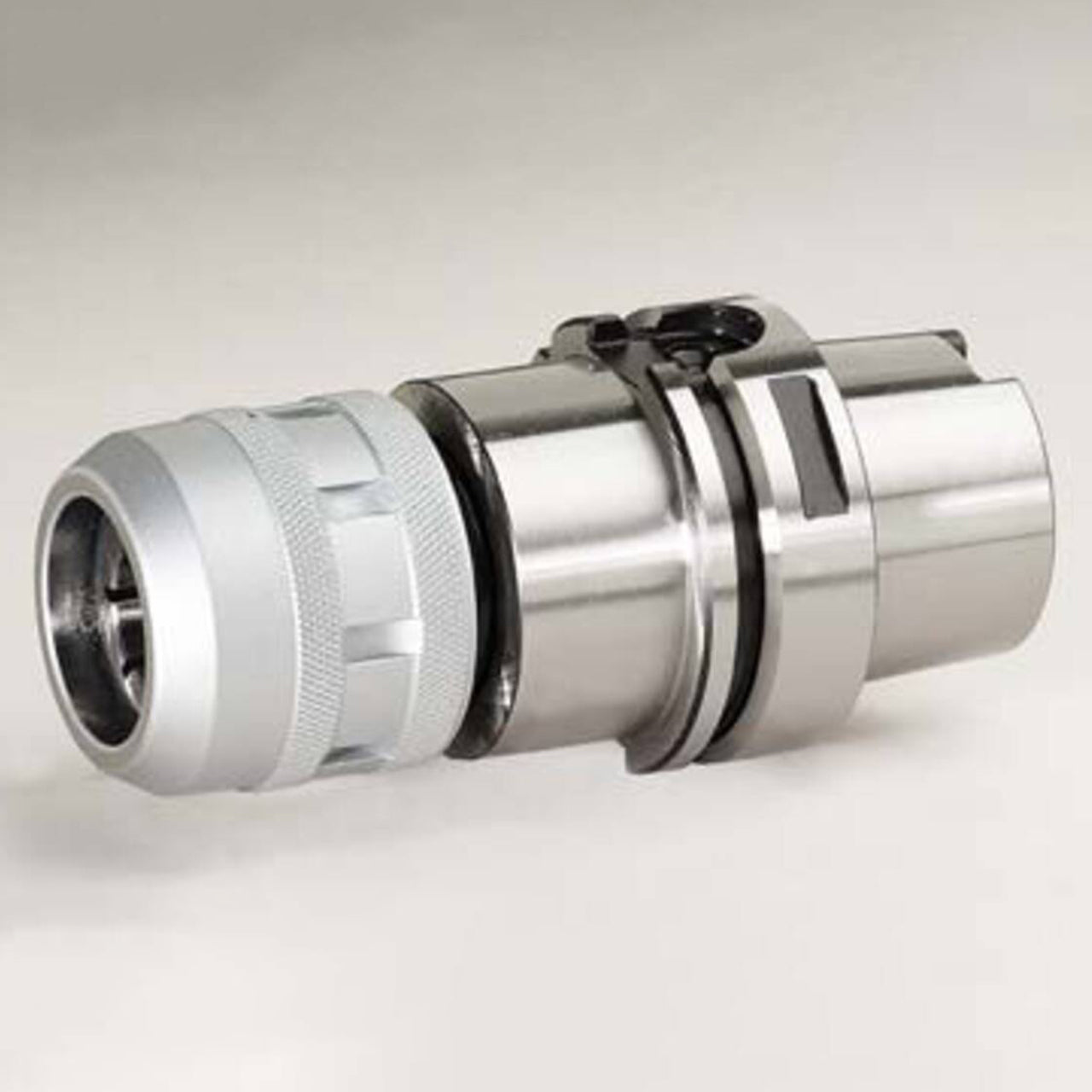

| Product Type | Milling Chuck |
